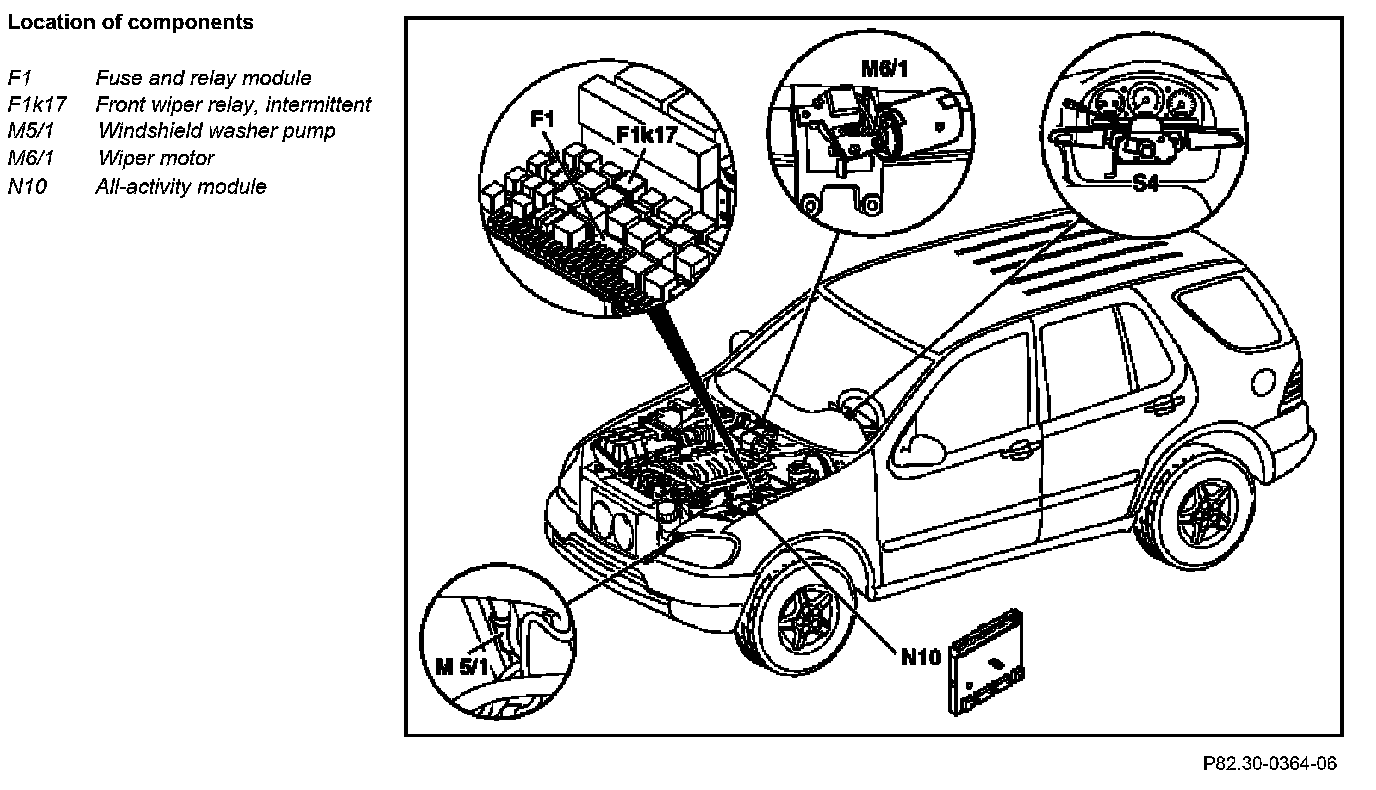

GF82.30-P-0005-01GH Windshield Wiper System, Location of Components
GF82.30-P-0005-01GH Windshield Wiper System, Location of Components
GF82.30-P-0005-01GH Windshield Wiper System, Location Of Components
As of 1.9.00 the vehicle is also offered with rain sensor (B38) code 344a. It is glued to the windshield.
