Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2005
>>
ML 500 (163.175) V8-5.0L (113.965)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Hood
>>
Adjustments
Hood: Adjustments
Adjust Engine
Hood
Component Identification:

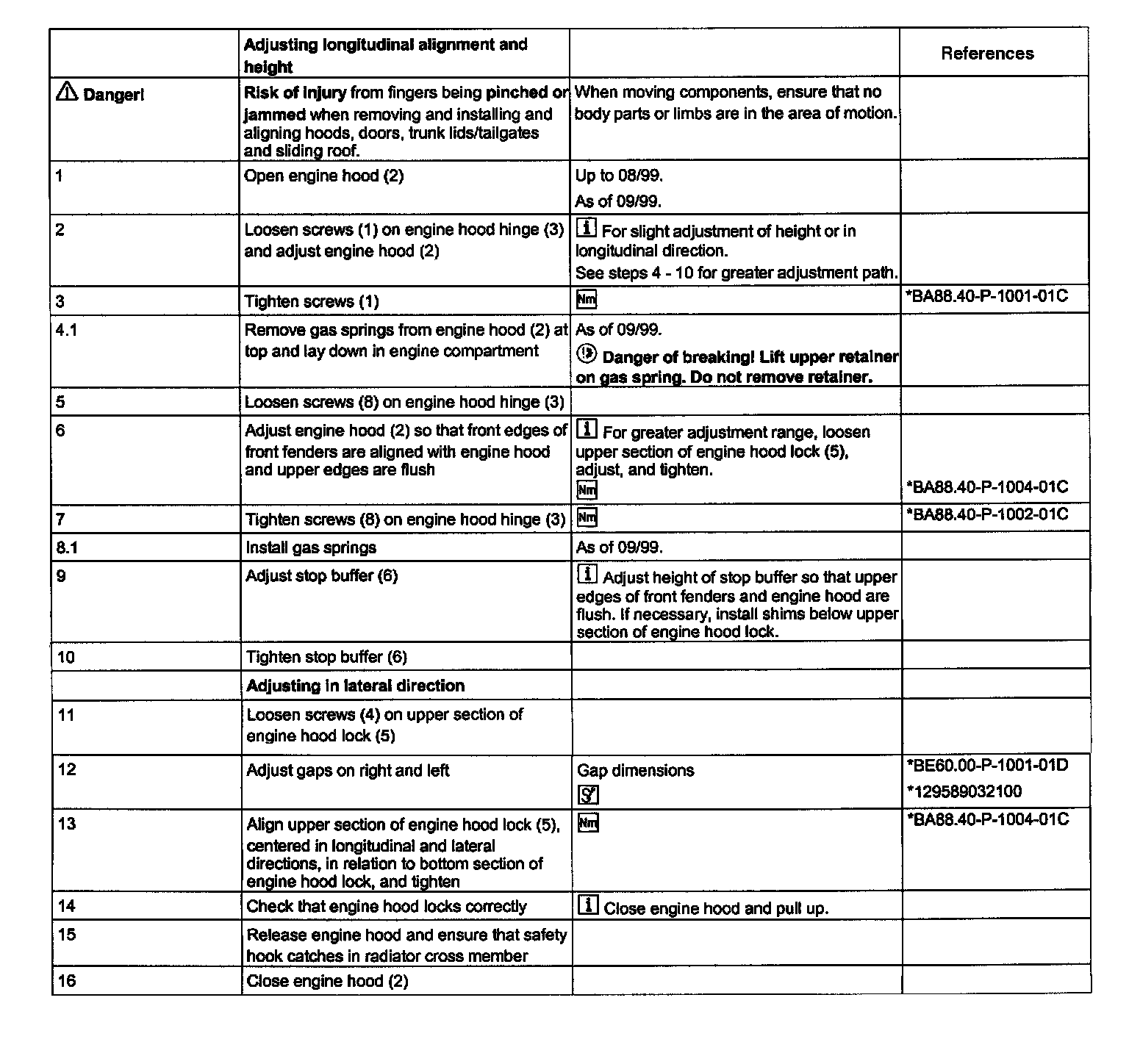

Adj. Longitudinal Alignment And Height, Steps 1 - 16:

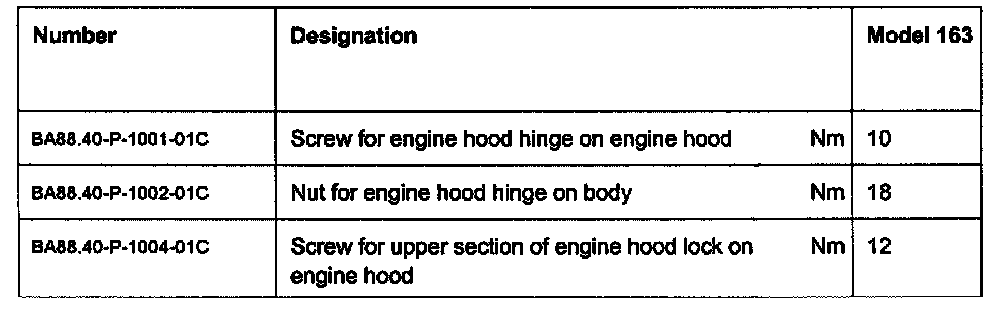

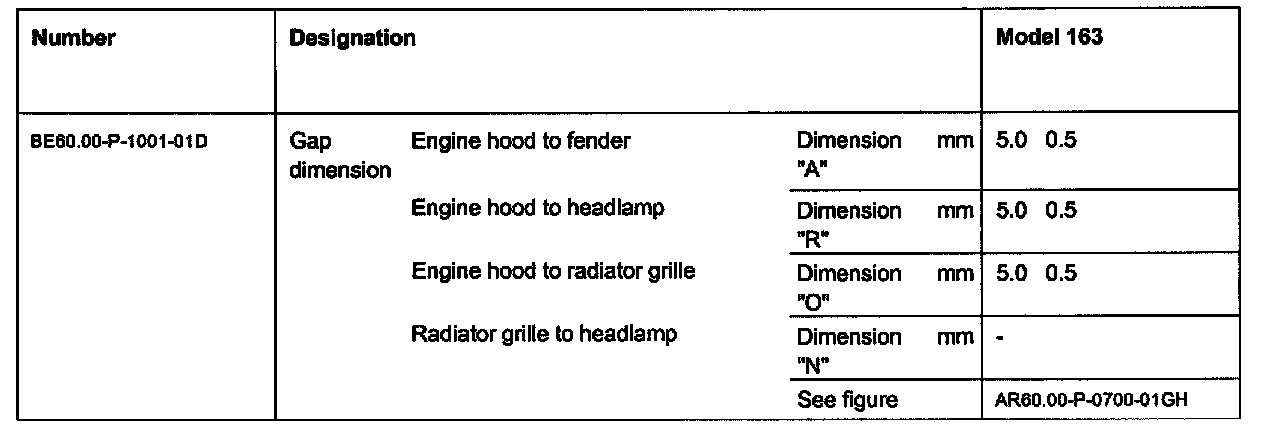

References (BA), Engine Hood:

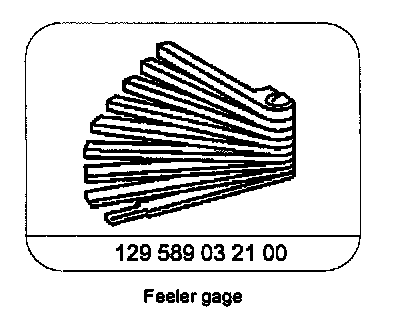

References, Special Tools:
