Radio Freq. Remote Central Locking PE80.35-U-2100GK

Radio Frequency Remote Central Locking PE80.35-U-2100GK
- with CODE (880b) radio frequency locking

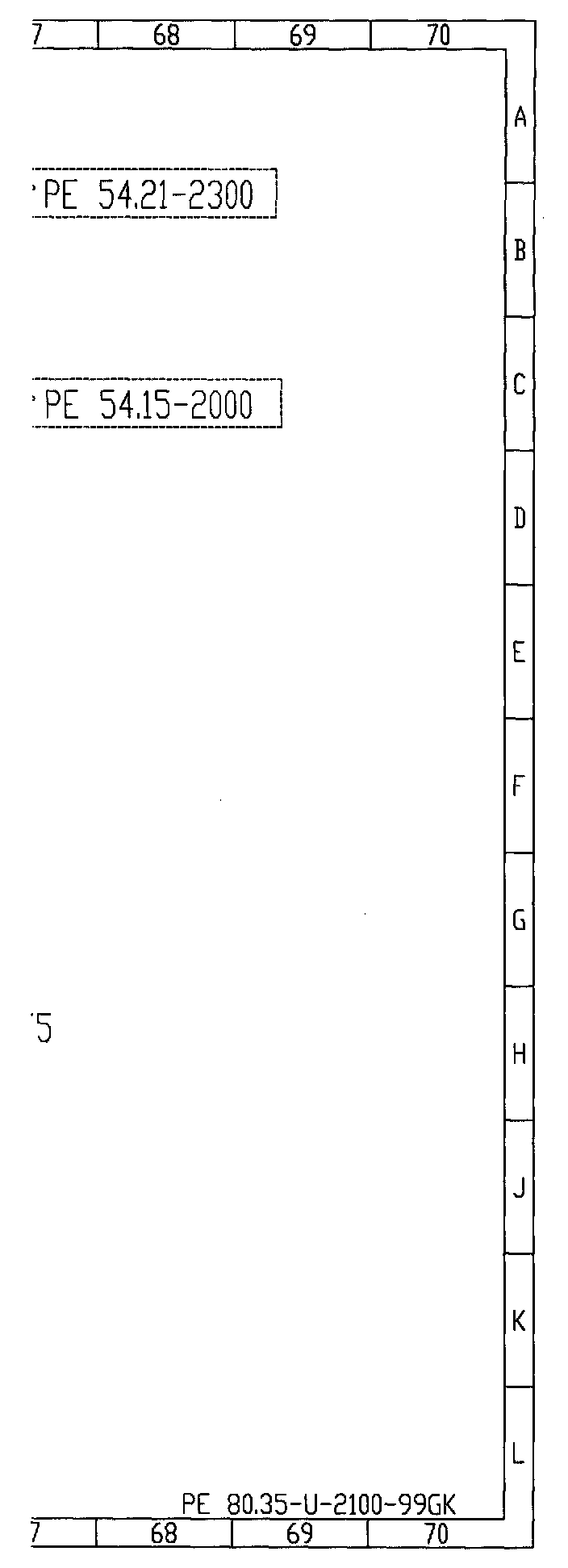

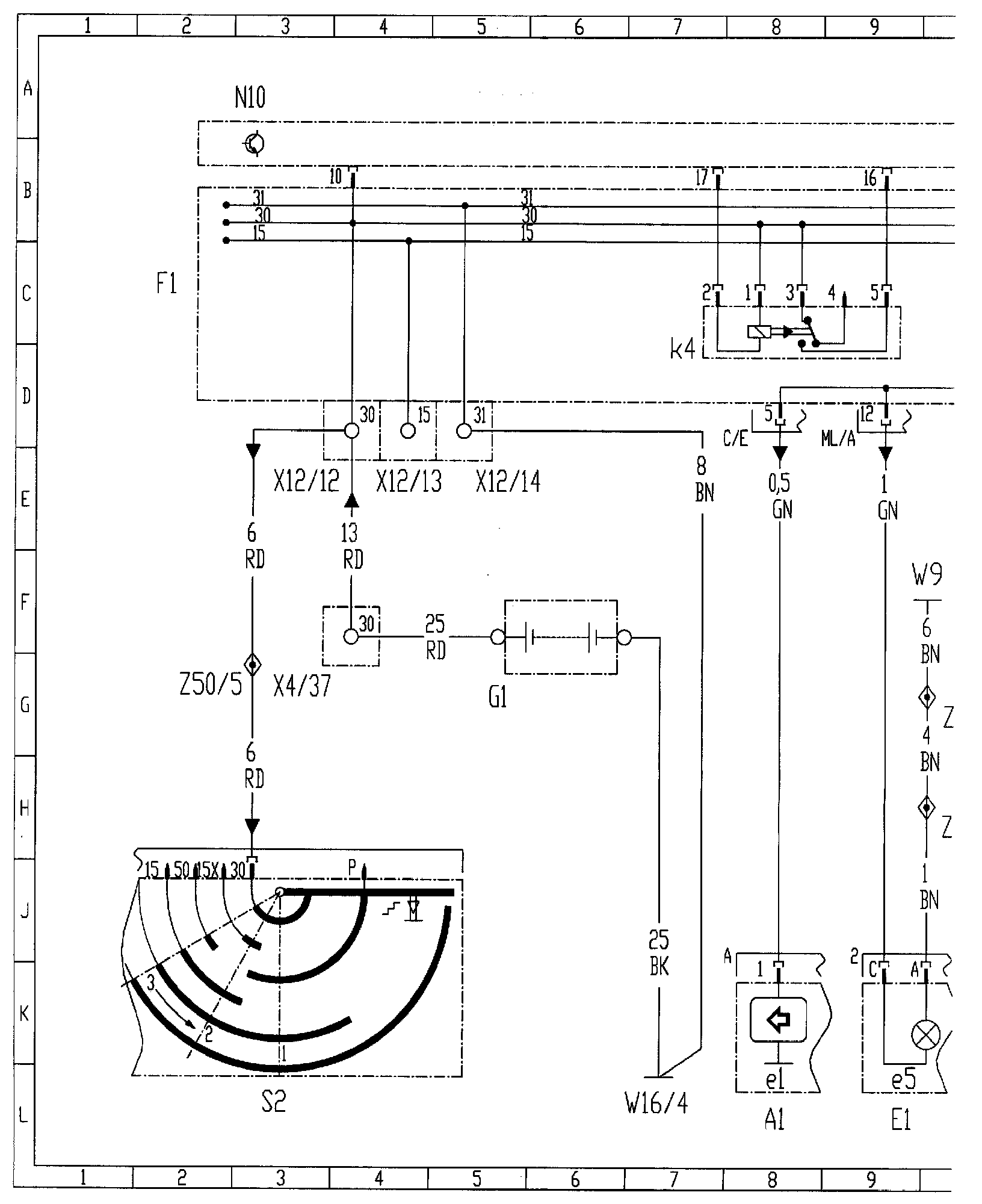

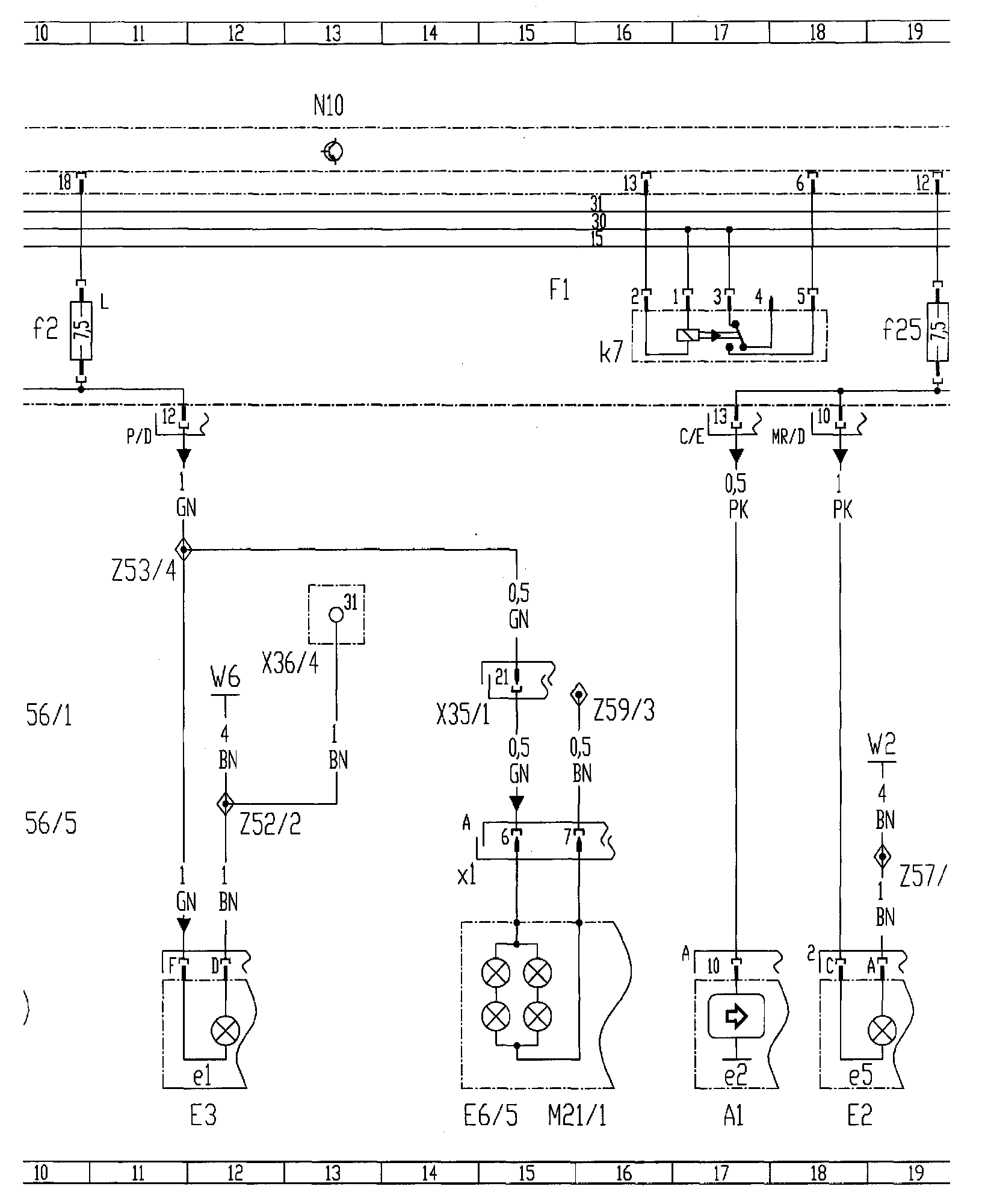

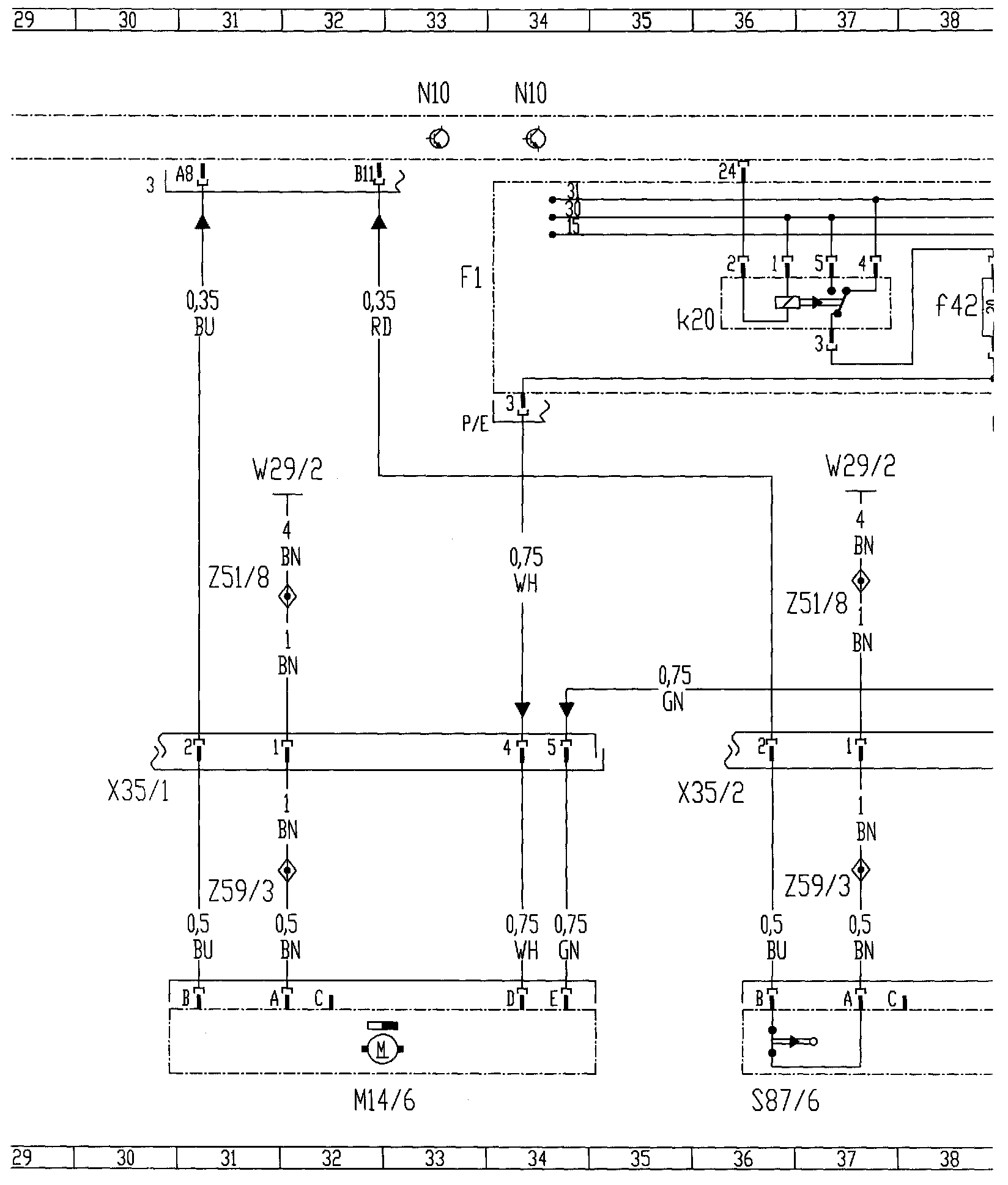

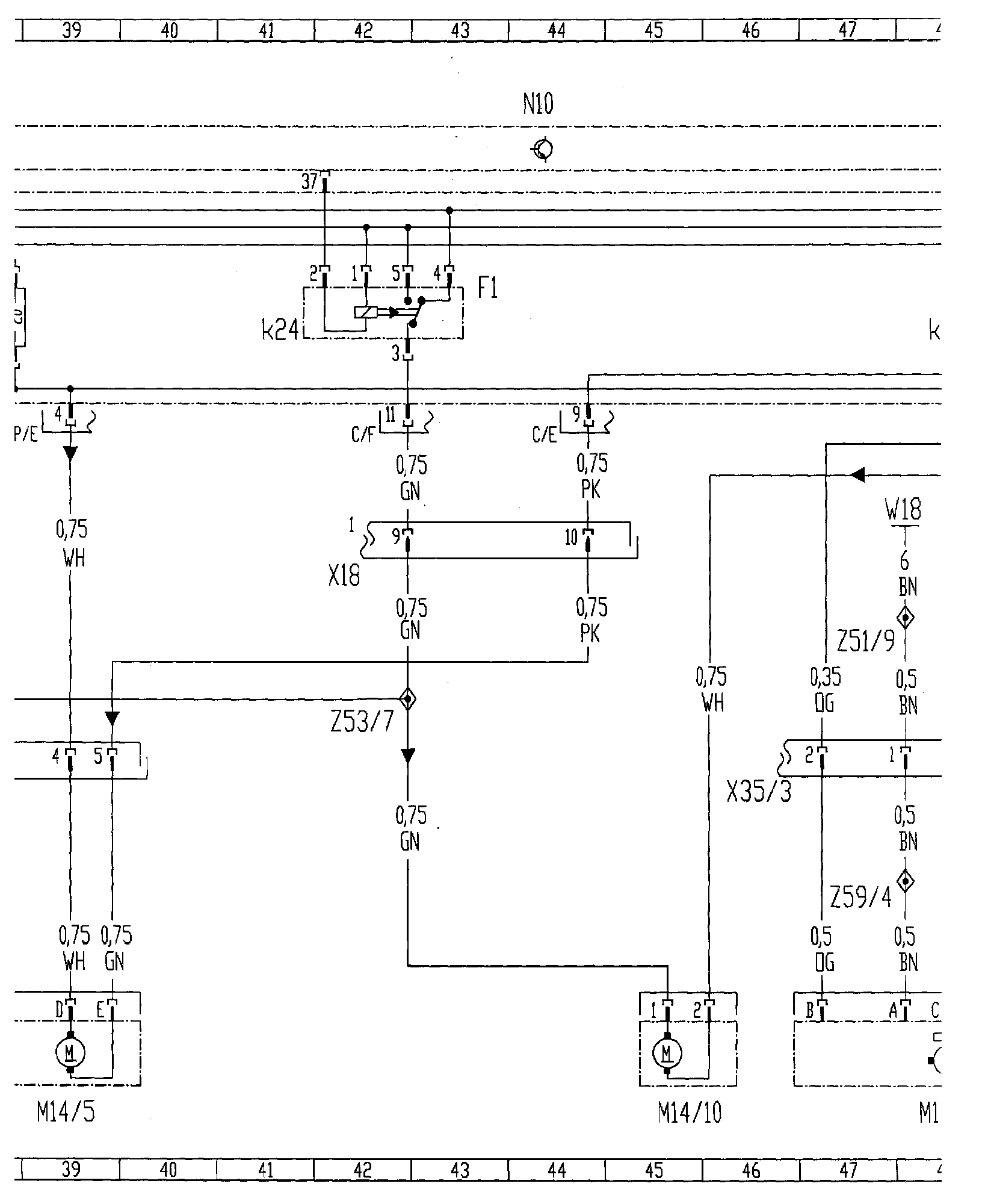

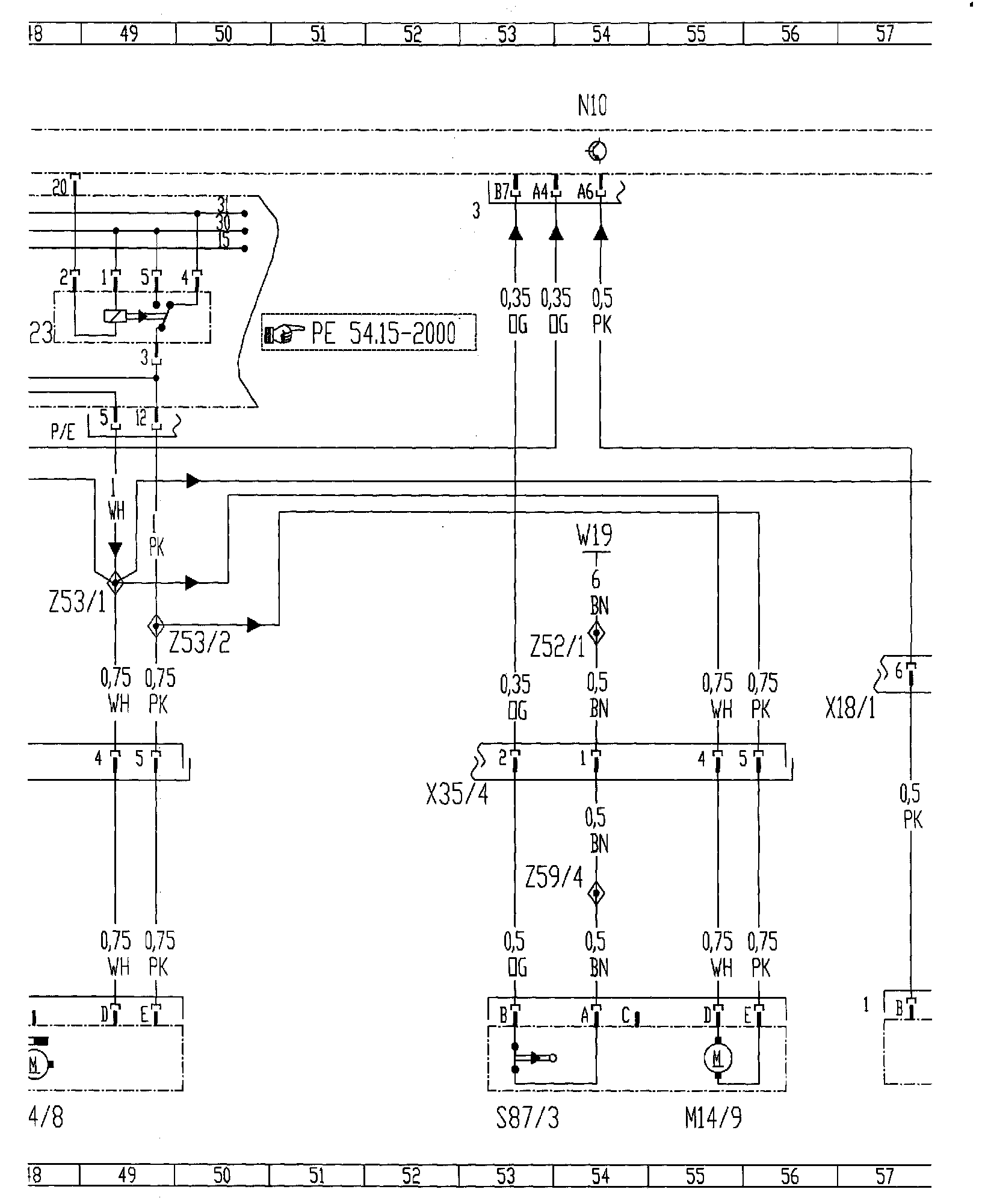

Radio Frequency Remote Central Locking:






Radio Frequency Remote Central Locking:






Radio Frequency Remote Central Locking:






Radio Frequency Remote Central Locking:






Radio Frequency Remote Central Locking:






Radio Frequency Remote Central Locking:






Radio Frequency Remote Central Locking:






Radio Frequency Remote Central Locking:

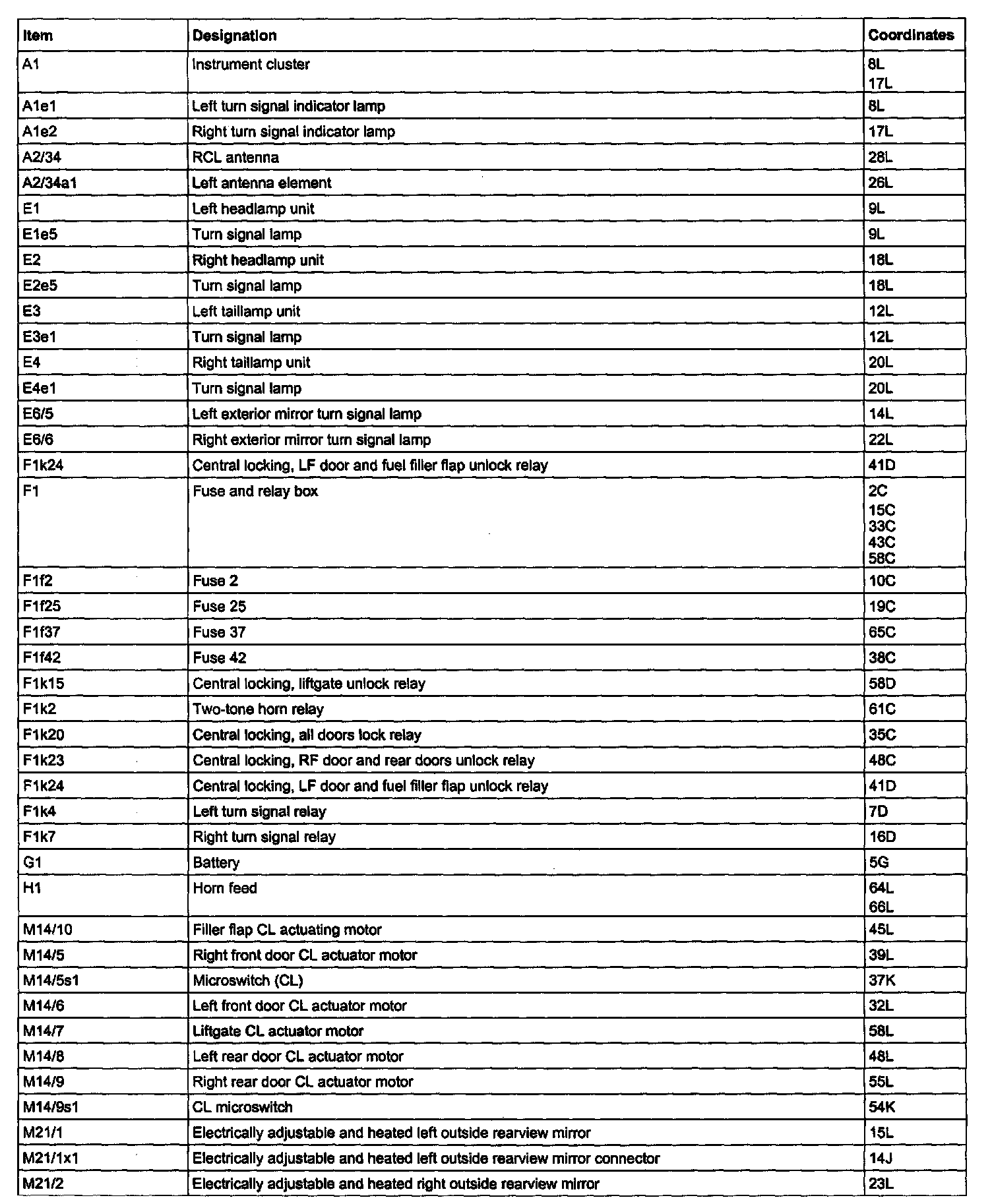

Legend For Radio Frequency Remote Central Locking:






Legend For Radio Frequency Remote Central Locking:






Legend For Radio Frequency Remote Central Locking:
