AR88.70-P-9040GI Remove/Install Outside Rearview Mirror Paneling

Remove/Install Outside Rearview Mirror Paneling







Remove/Install

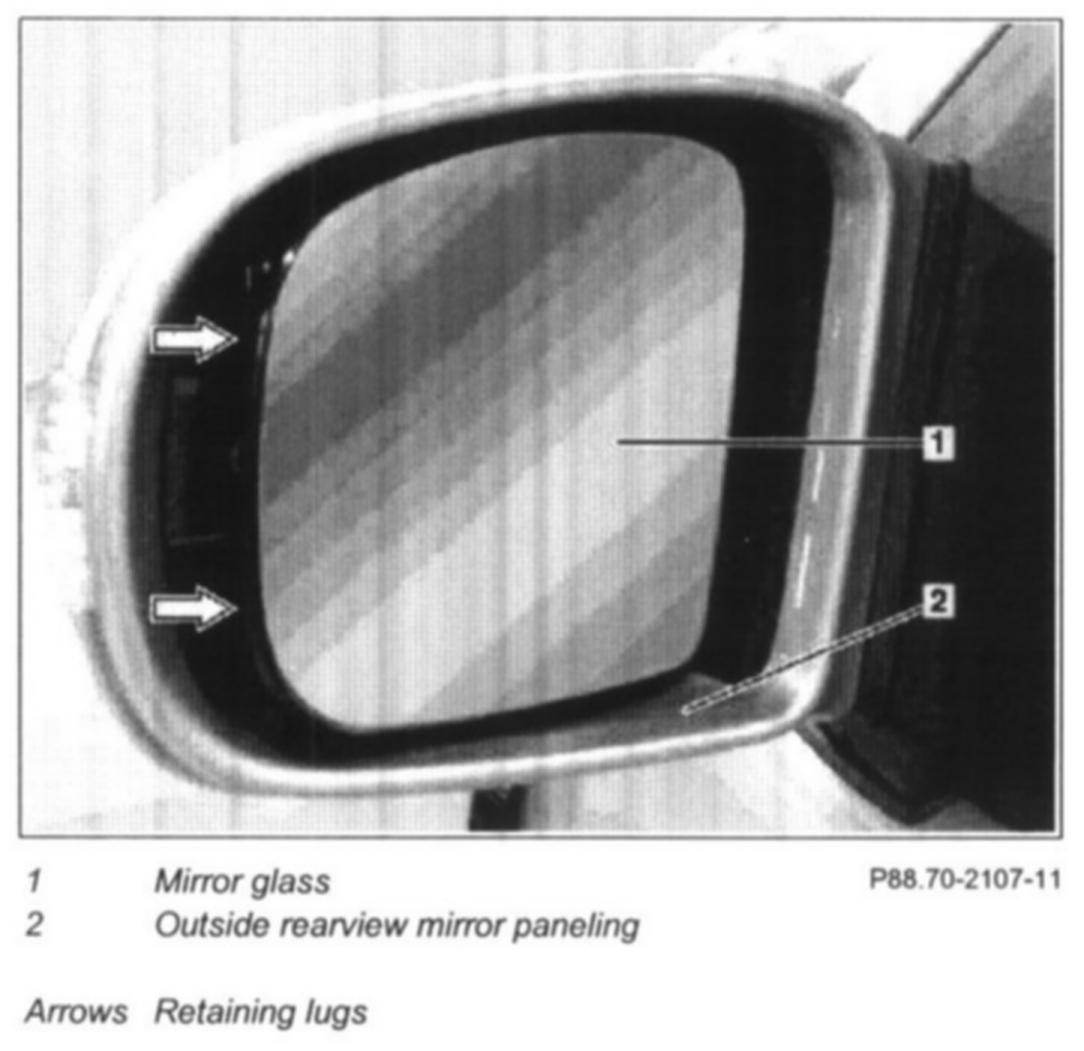

1 Adjust mirror glass (1) toward inside.
2 Loosen retaining lugs (arrows) in housing.
- Long wedge: See Special Tools below.

3 Remove outside rearview mirror paneling (2) toward outside.
4 Disconnect connector from turn signal lamp.
5 Install in the reverse order

Special Tools
