AR91.10-P-1200GH Remove/Install Front Seat Frame Trim
AR91.10-P-1200GH Remove/Install Front Seat Frame Trim
Remove/install front seat
frame
trim

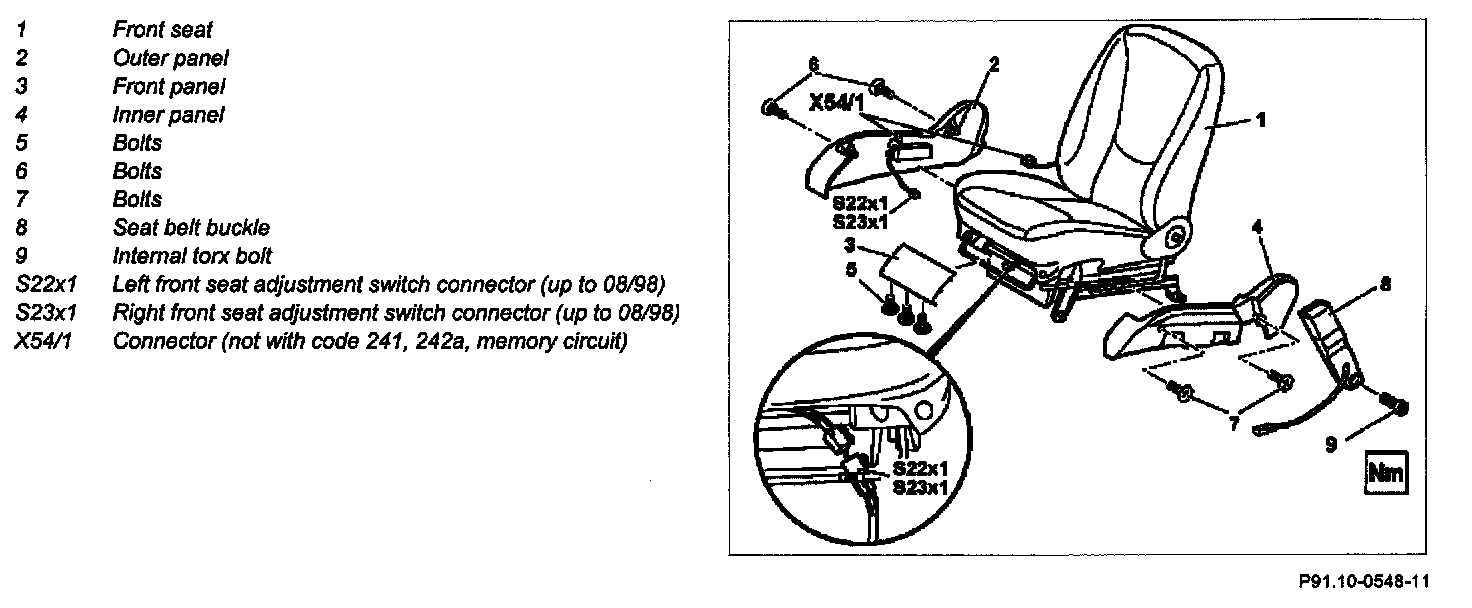

Component Identification:

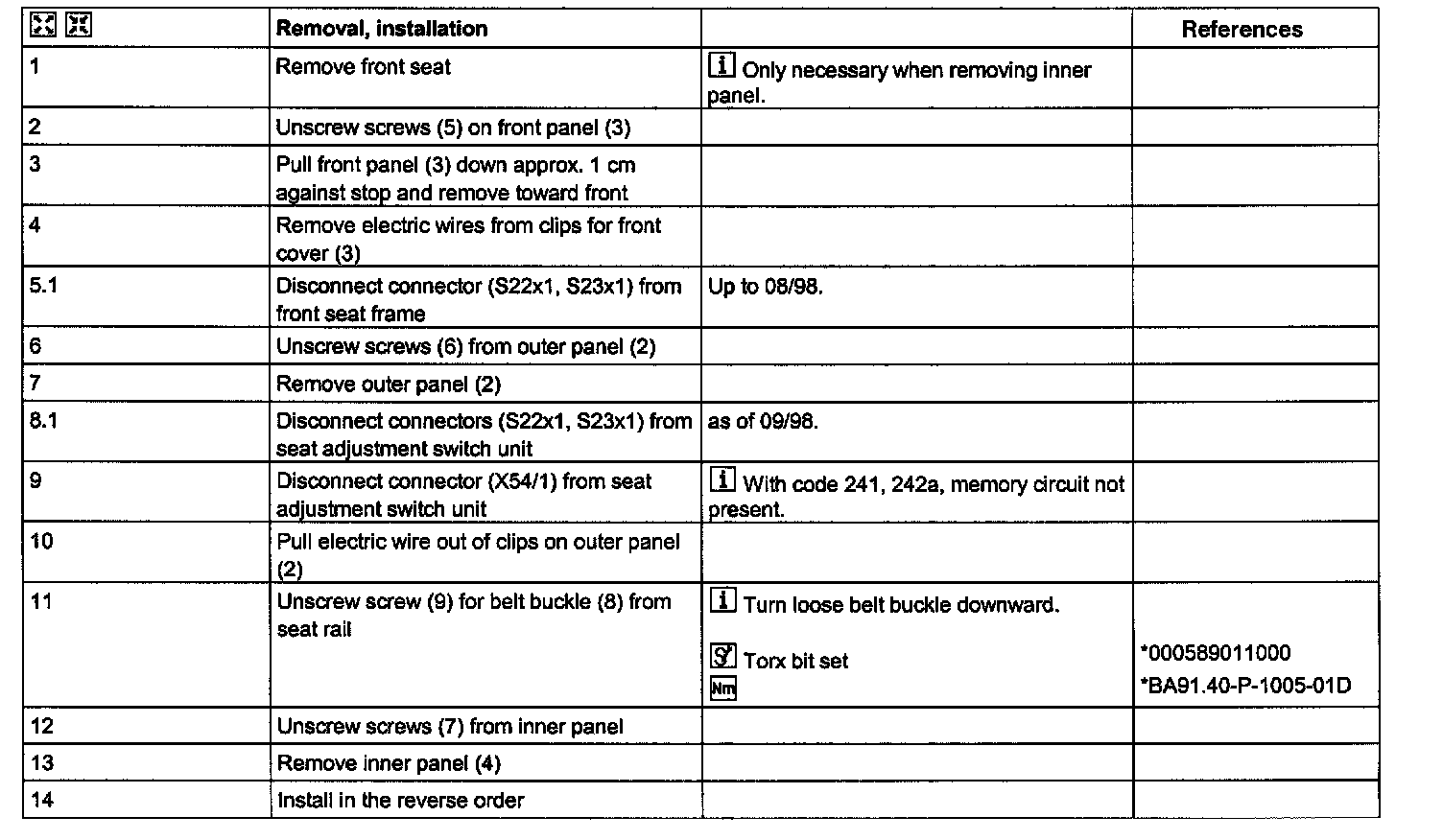

Removal, Installation, Steps 1 - 14:

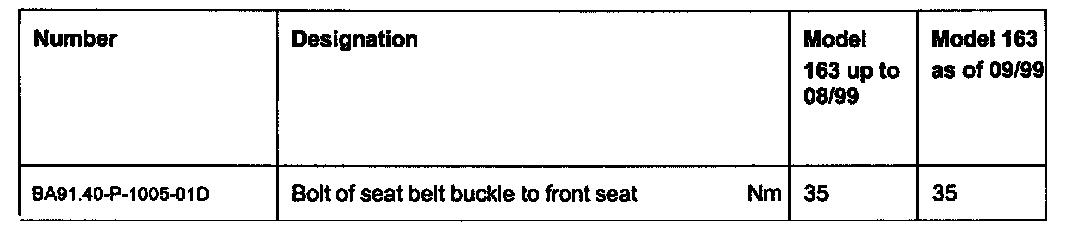

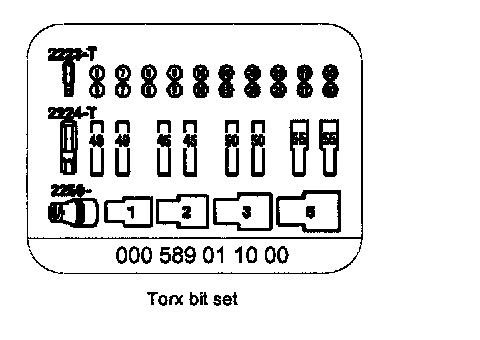

References, Special Tools:
