AR91.12-P-1010GI Remove/Install Seat Bench




Remove and install bench
40% bench seat

Component Identification:

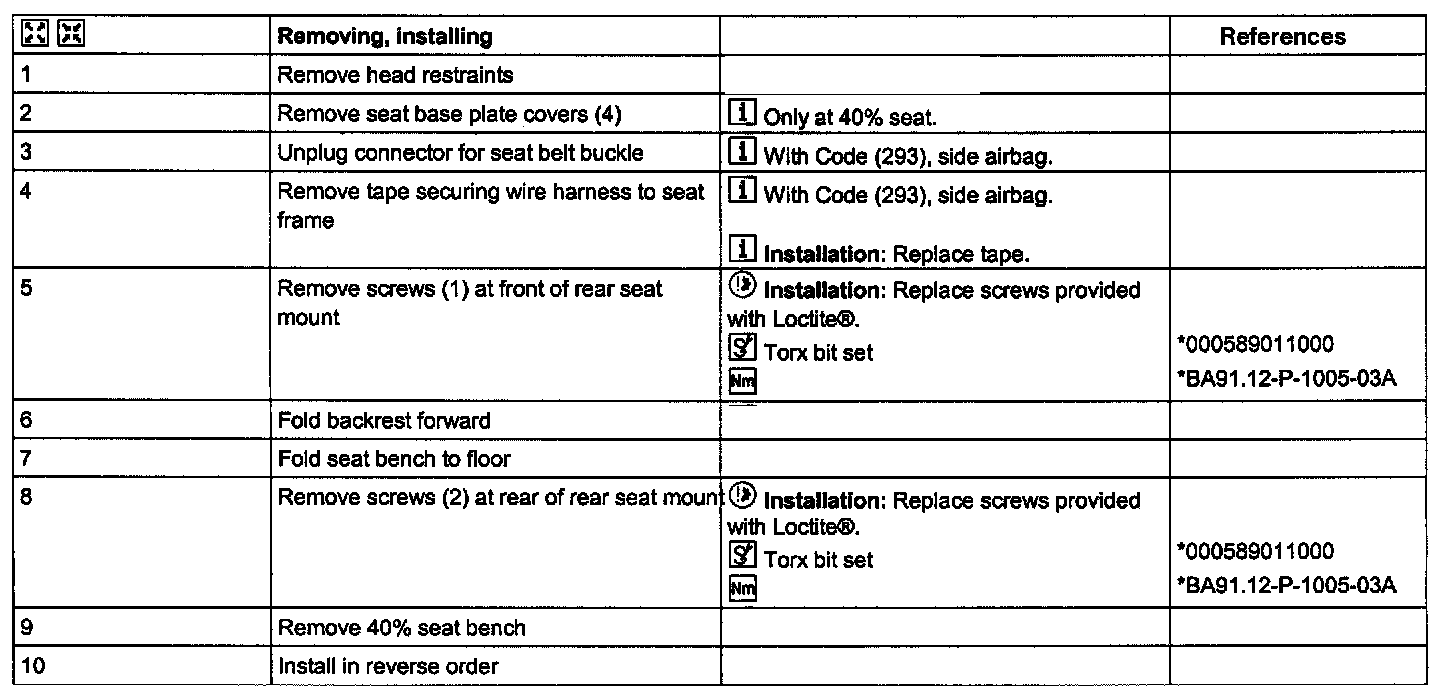

Removing, Installing, Steps 1 - 10:

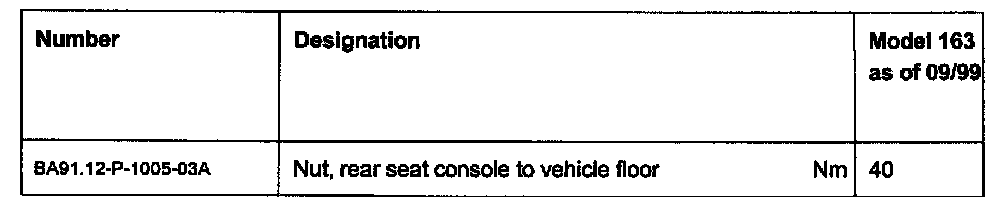

References (BA), Rear Seats:

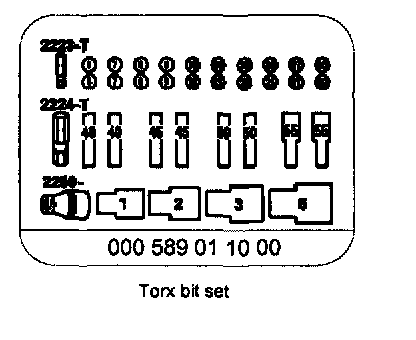

References, Special Tools:
