Splash Guard: Service and Repair

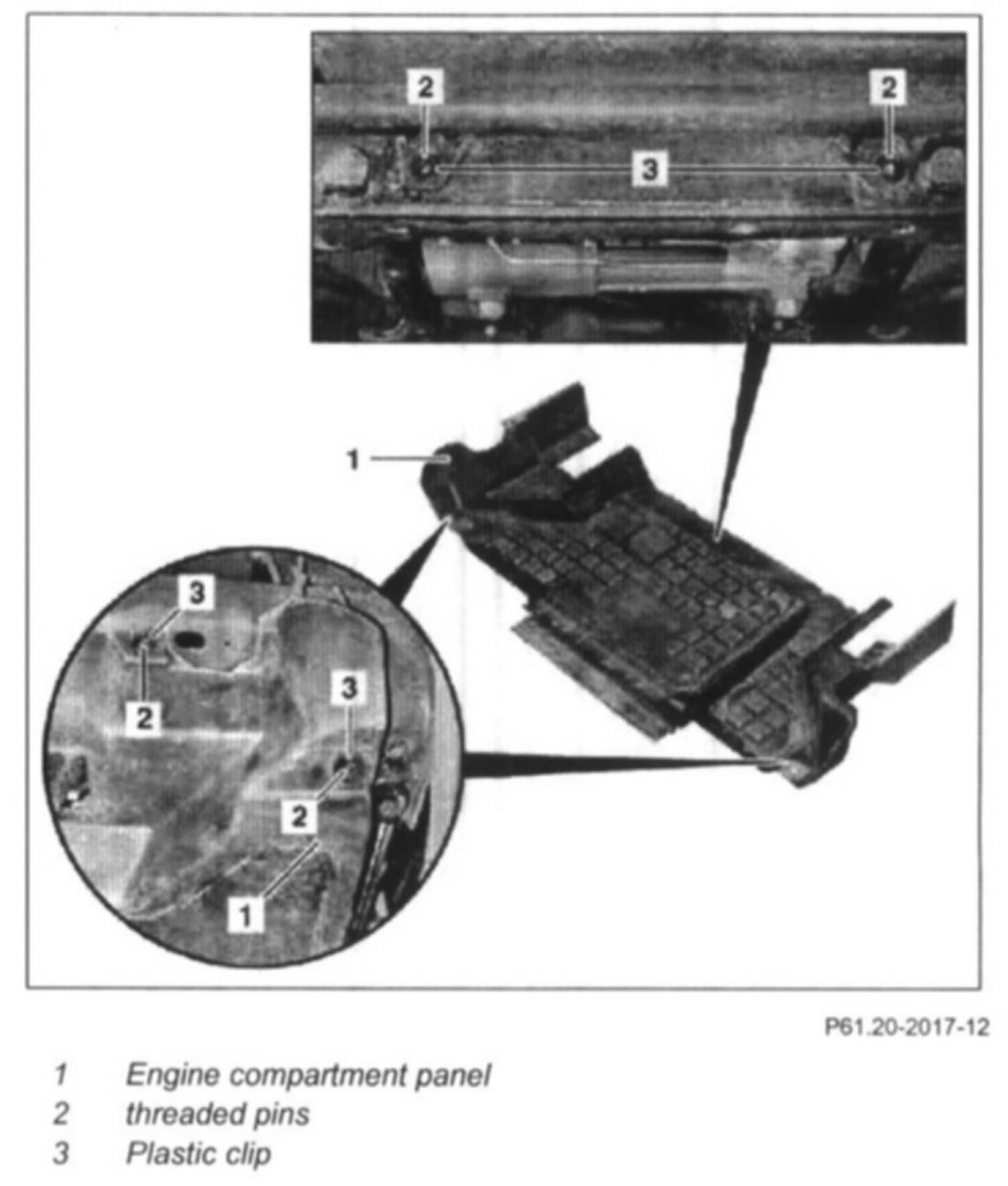

AR61.20-P-1105GH Remove/Install Bottom Engine Compartment Paneling






1 Remove threaded pins (2) of plastic clips (3)

NOTE: 6 threaded pins.

CAUTION: Installation: Check threaded pins, replace if necessary.

2 Pull out plastic clips (3)

CAUTION: Installation: Check plastic dips, replace if necessary.

3 Remove engine compartment panel (1)

CAUTION: Installation: Ensure that engine compartment panel is positioned correctly.

4 Reinstall in opposite order.
