Drive Authorization System (DAS) PE80.57-U-2000GJ



Driver Authorization System (DAS) PE80.57-U-2000GJ

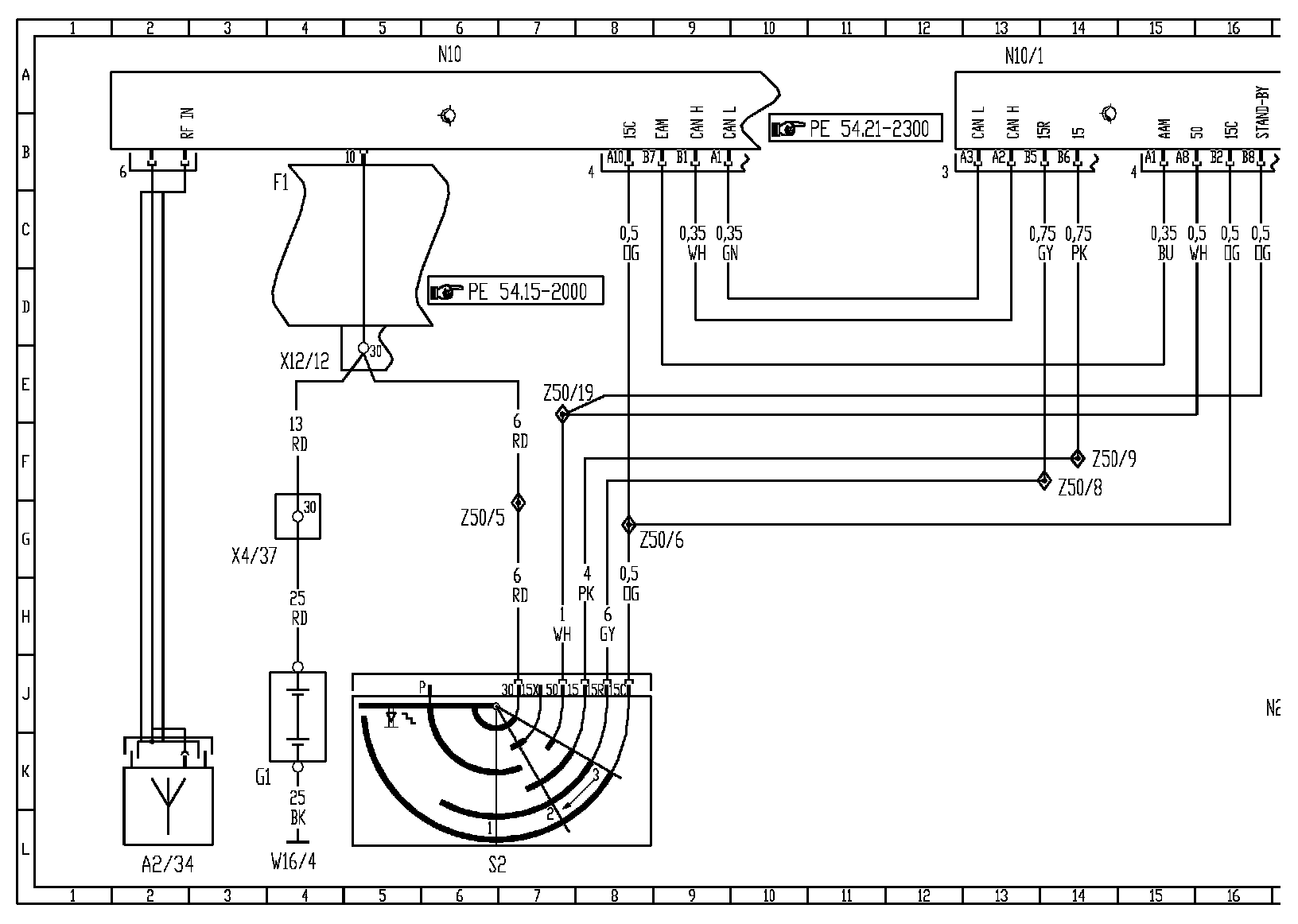

Wiring Diagram, Part 1:





Wiring Diagram, Part 2:

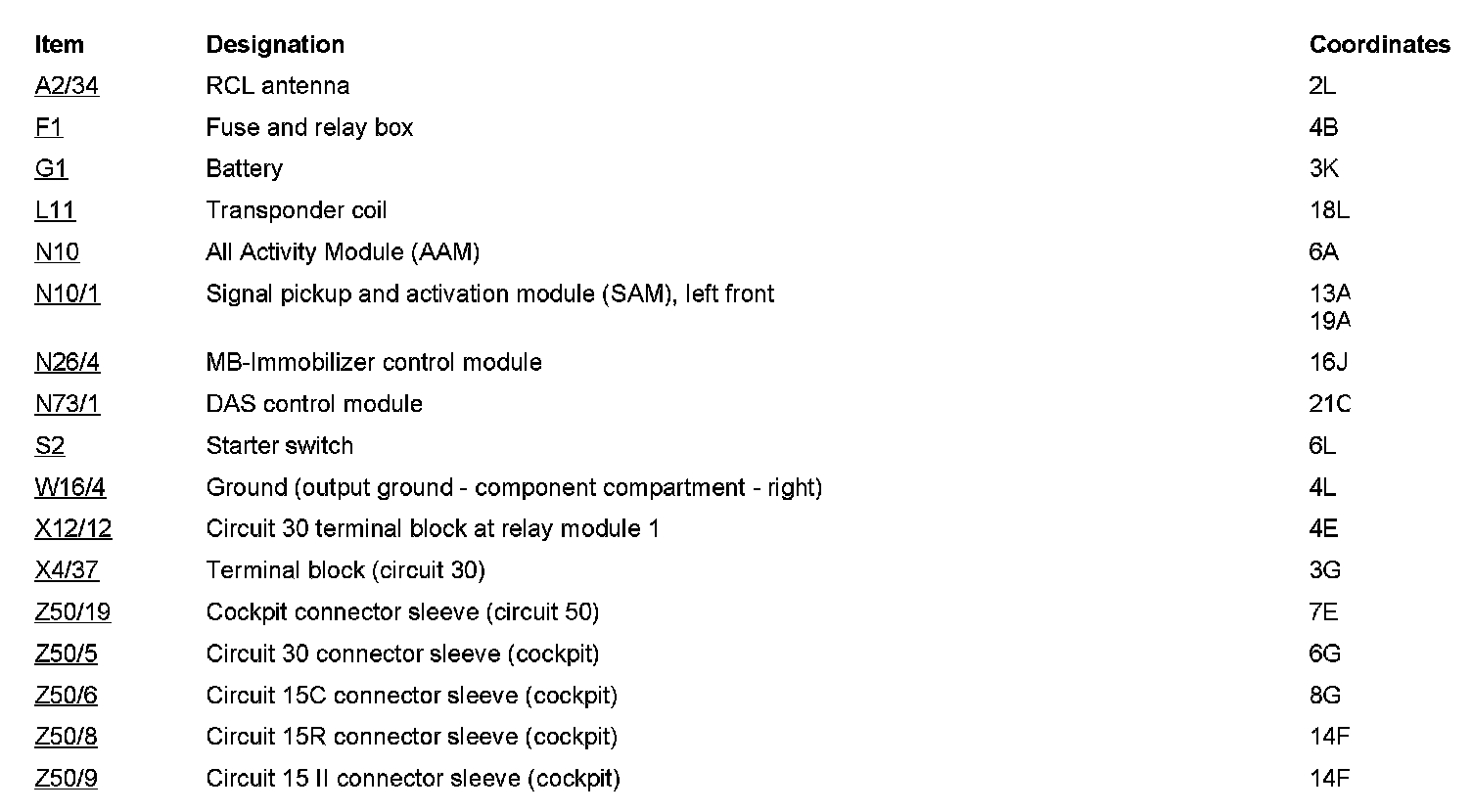

Component Description/Coordinates, A2/34 to Z50/9:
