Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2005
>>
ML 500 (163.175) V8-5.0L (113.965)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
Outside Mirrors PE88.79-U-2000S
Outside Mirrors PE88.79-U-2000S
Outside Mirrors PE88.79-U-2000S

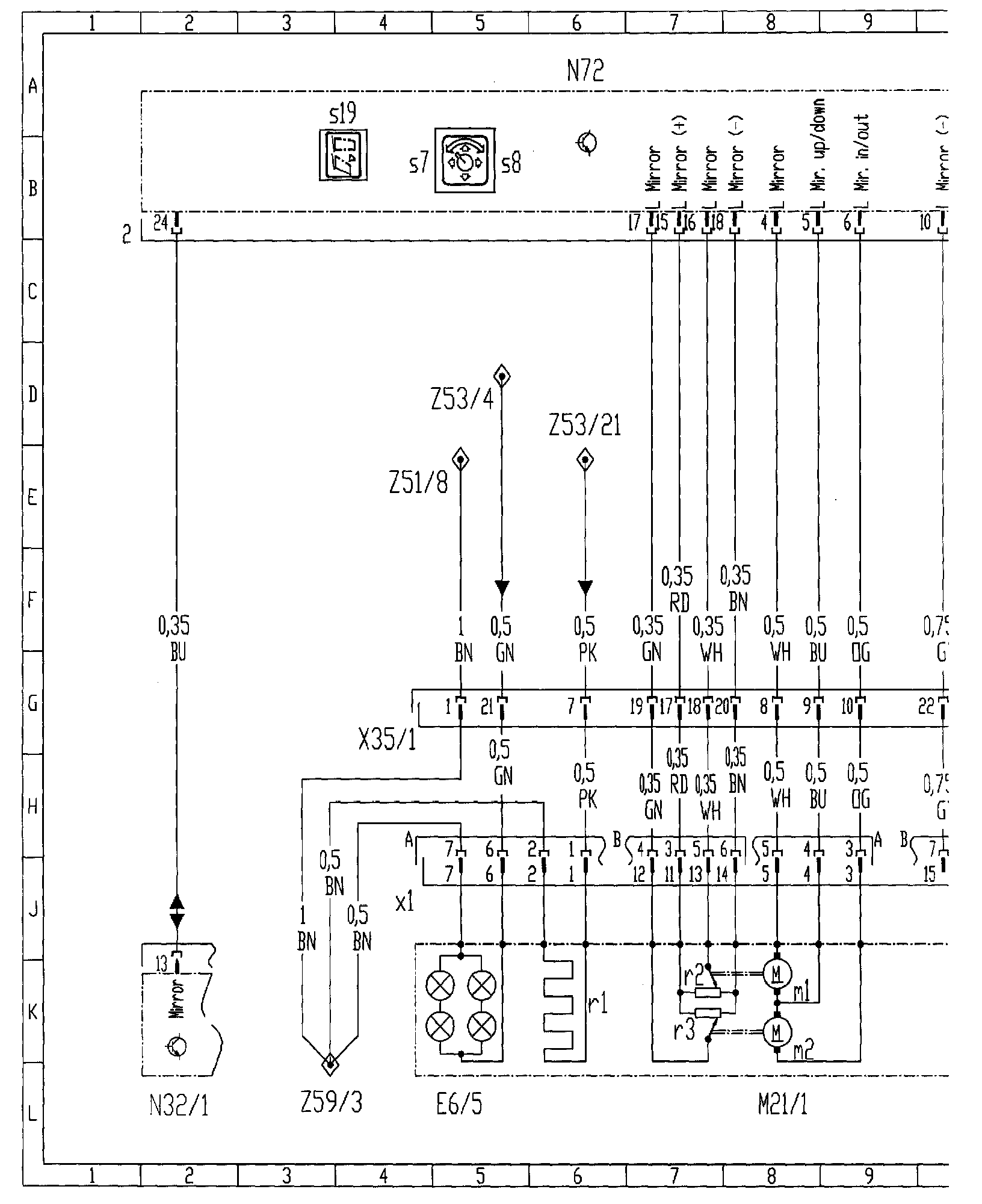

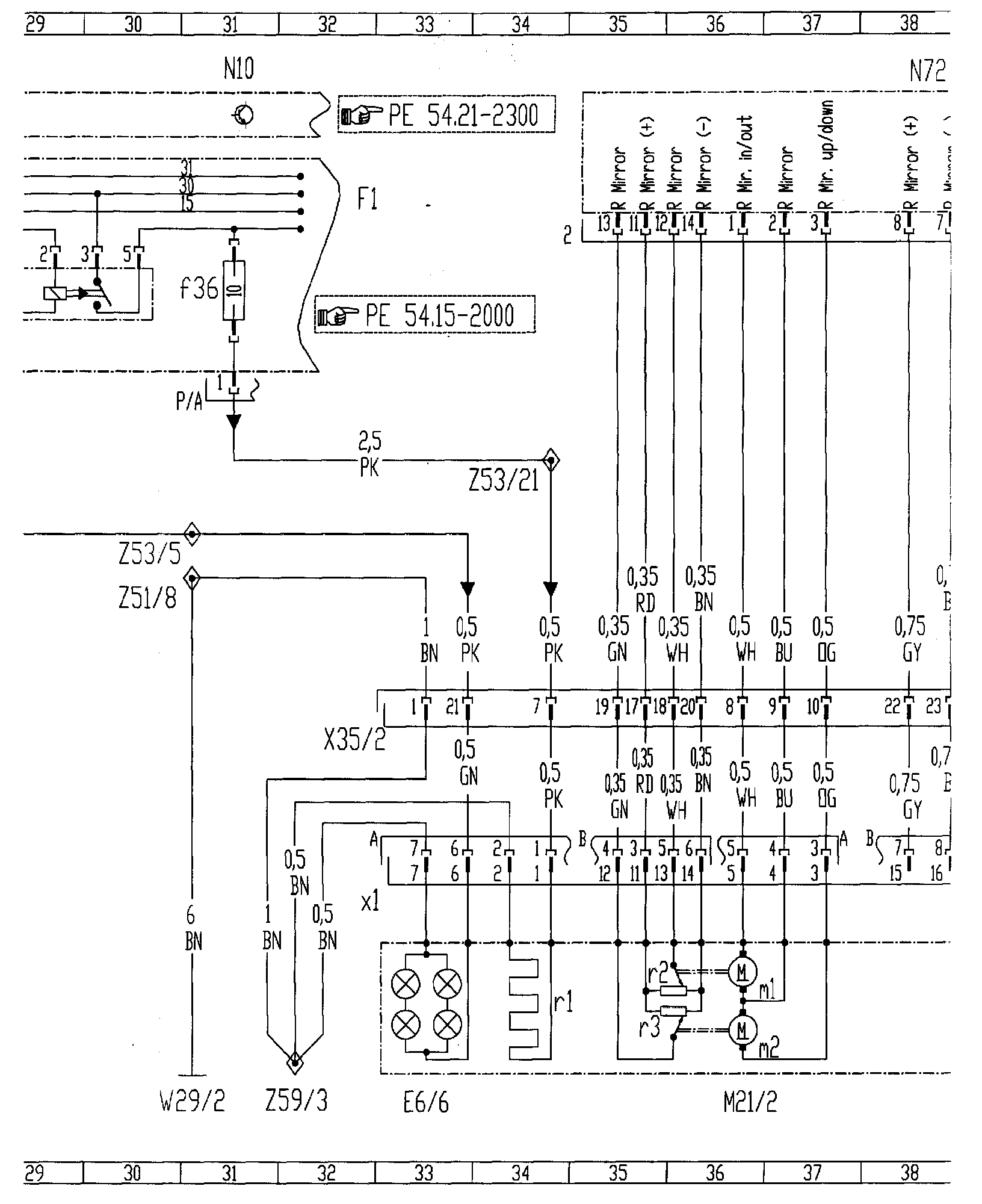

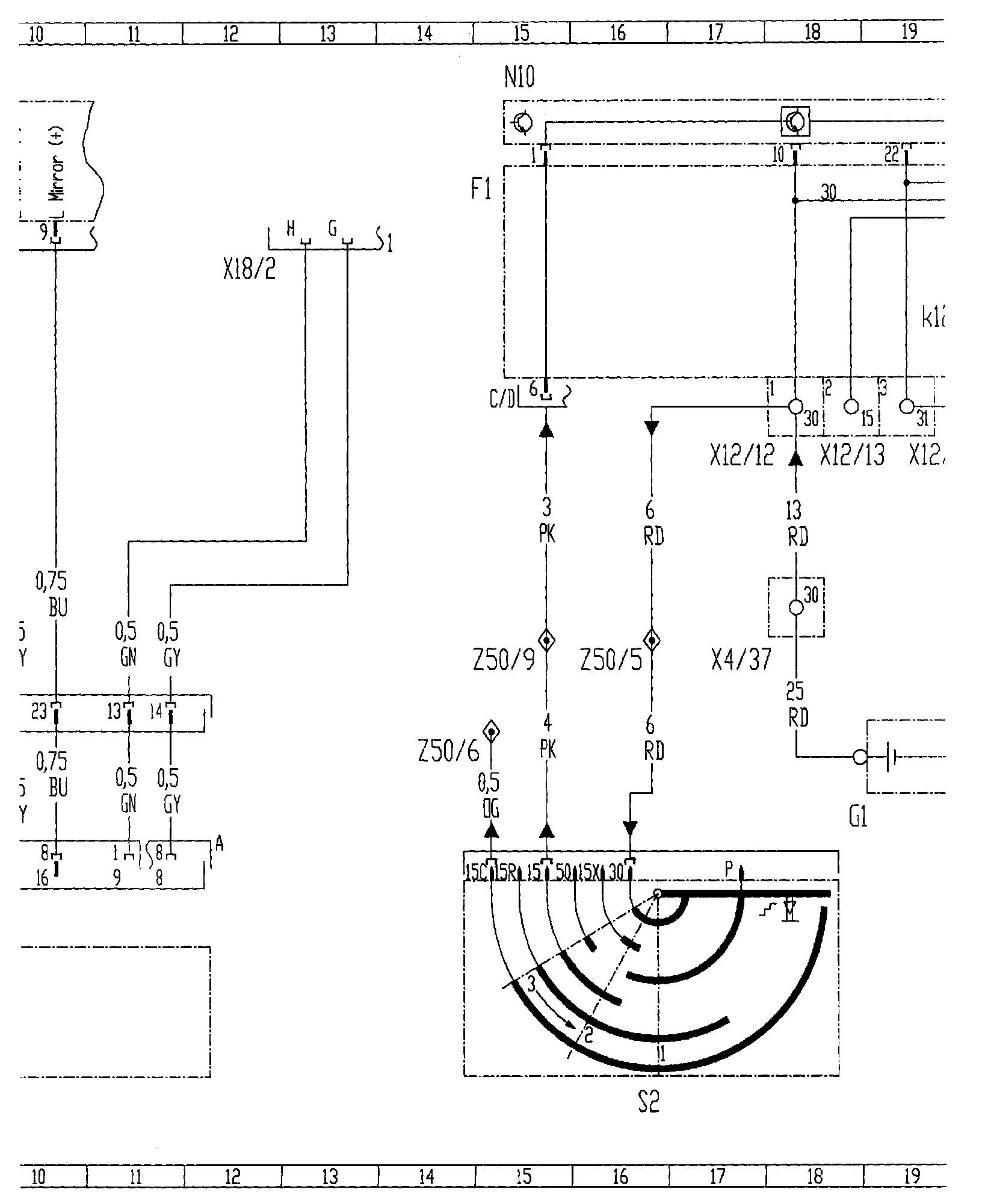

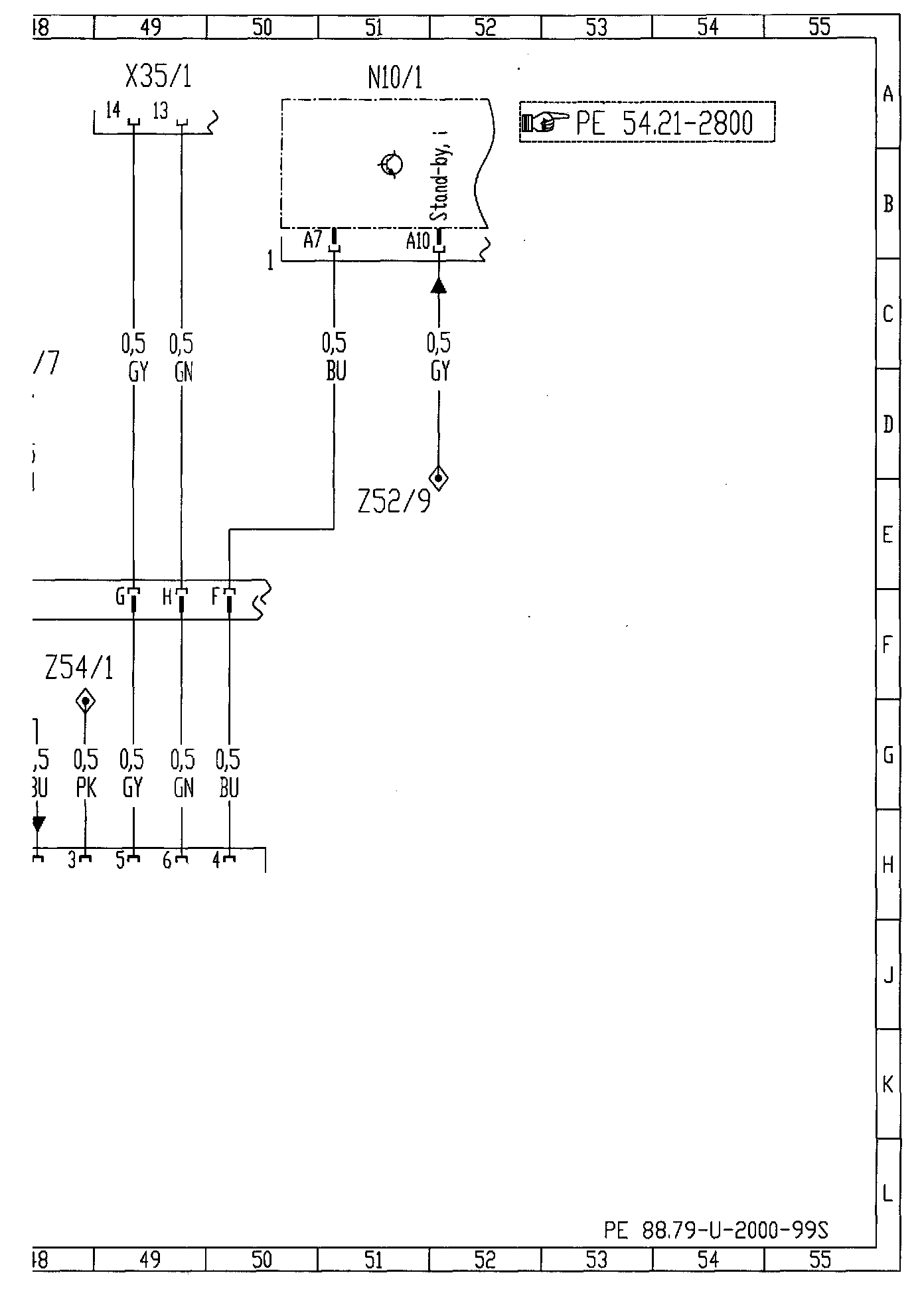

Outside Mirrors:
Outside Mirrors:
Outside Mirrors:
Outside Mirrors:
Outside Mirrors:
Outside Mirrors:
Legend For Outside Mirrors:
Legend For Outside Mirrors:
