Radio (RD) Control Module PE82.60-U-2000GO

Radio (RD) Control Module PE82.60-U-2000GO
- with CODE (522) Radio Modular Control System (MCS)
- with CODE (351) Auto Pilot System (APS)
- with CODE (810) Sound System
- with CODE (819) 6-disc CD changer

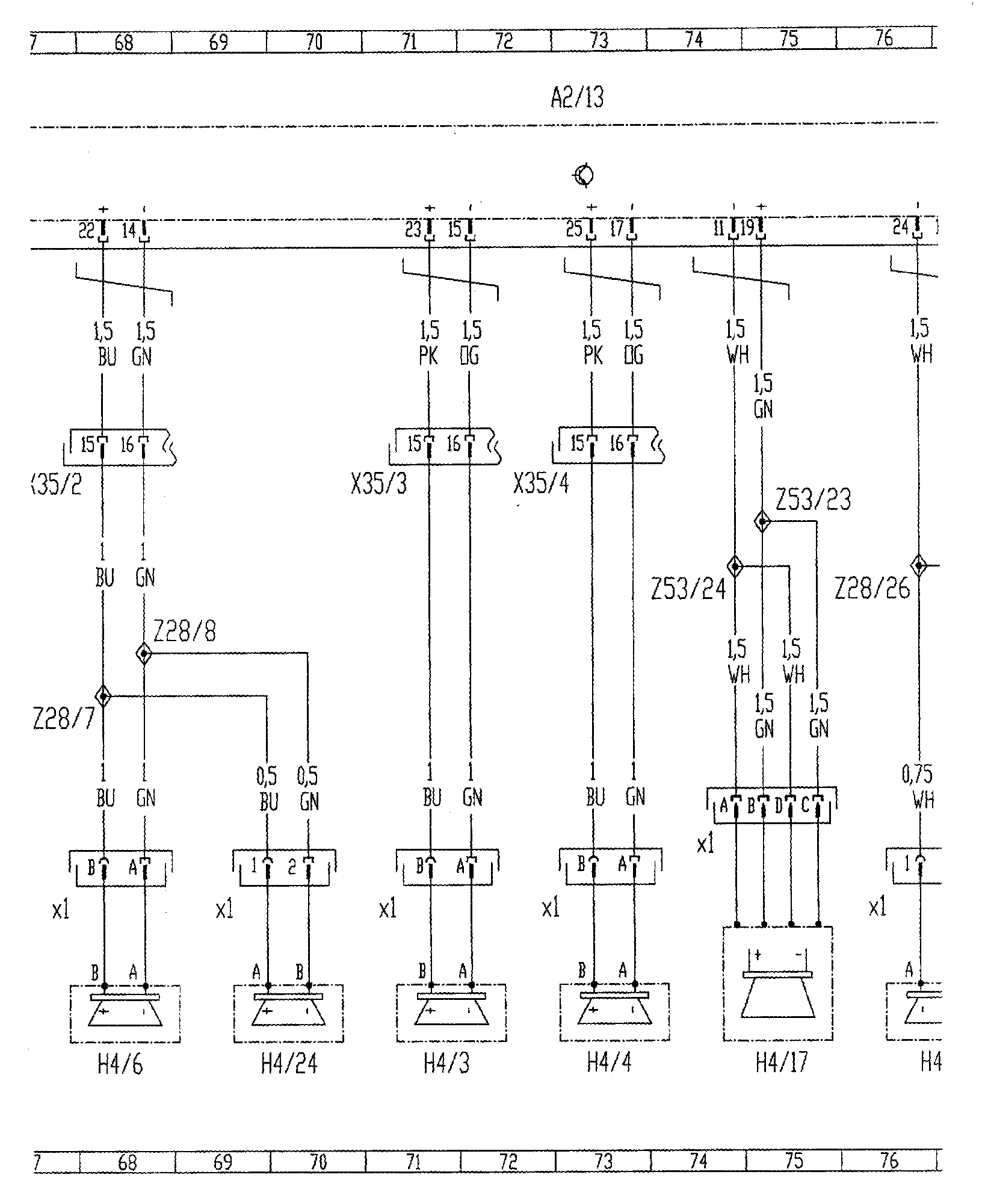

Radio:






Radio:






Radio:






Radio:






Radio:






Radio:






Radio:






Radio:






Radio:

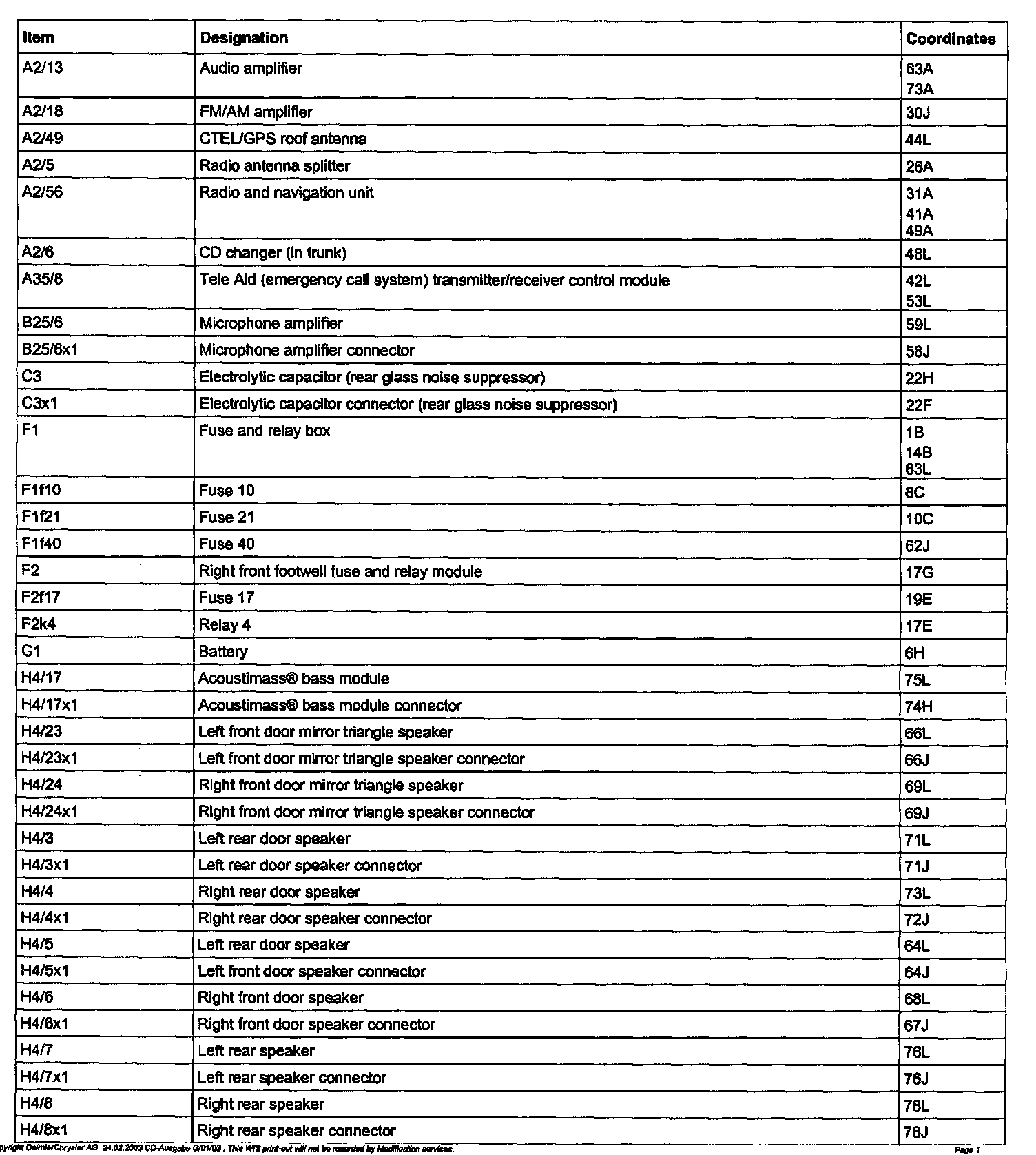

Legend For Radio:

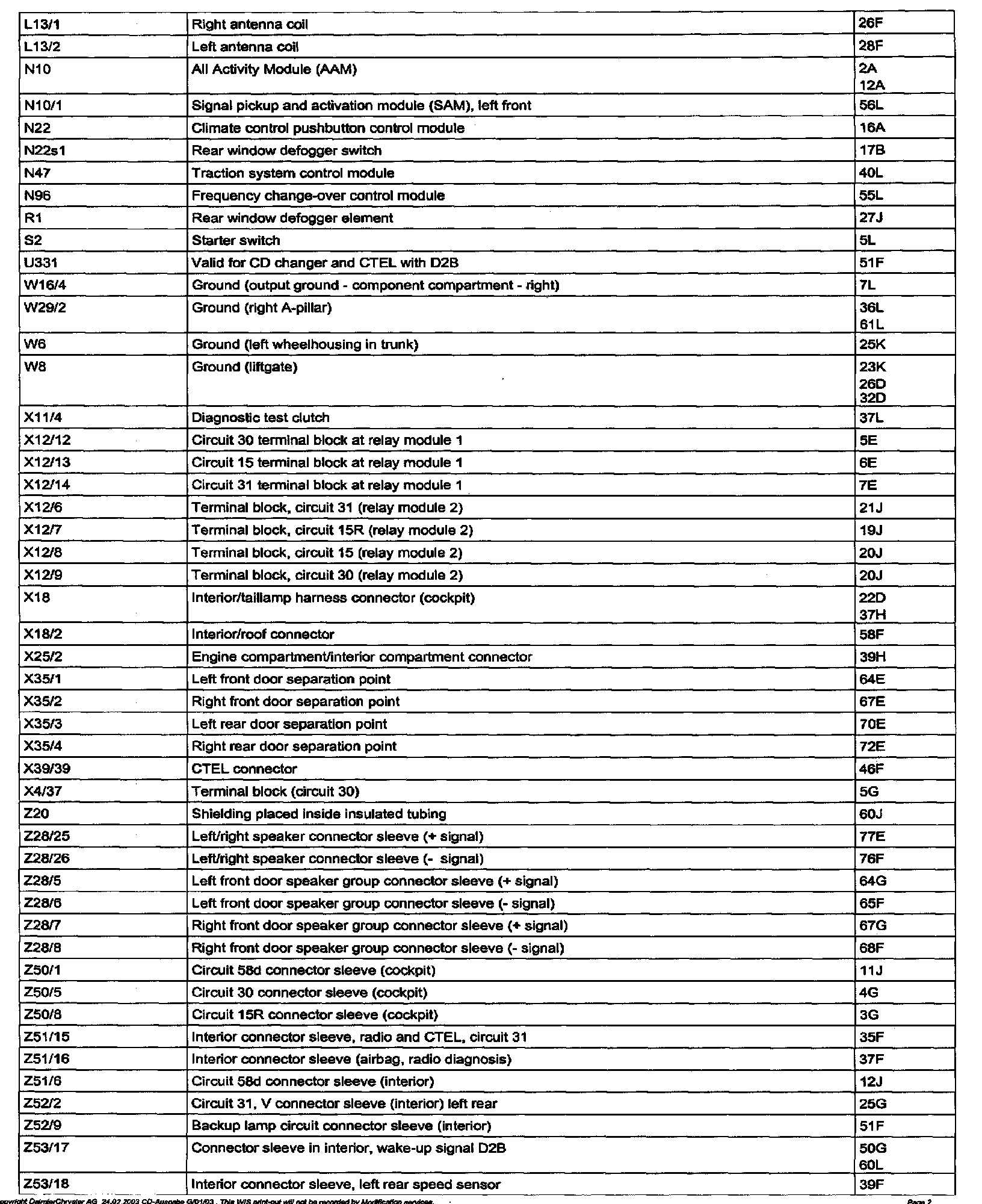

Legend For Radio:






Legend For Radio:
