Home >> Mercedes Benz Truck >> 2005 >> ML 500 (163.175) V8-5.0L (113.965) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Satellite Digital Audio Radio (SDAR) System PE82.60-U-2300GH

Satellite Digital Audio Radio (SDAR) System PE82.60-U-2300GH



Satellite Digital Audio Radio System (SDAR) PE82.60-U-2300GH

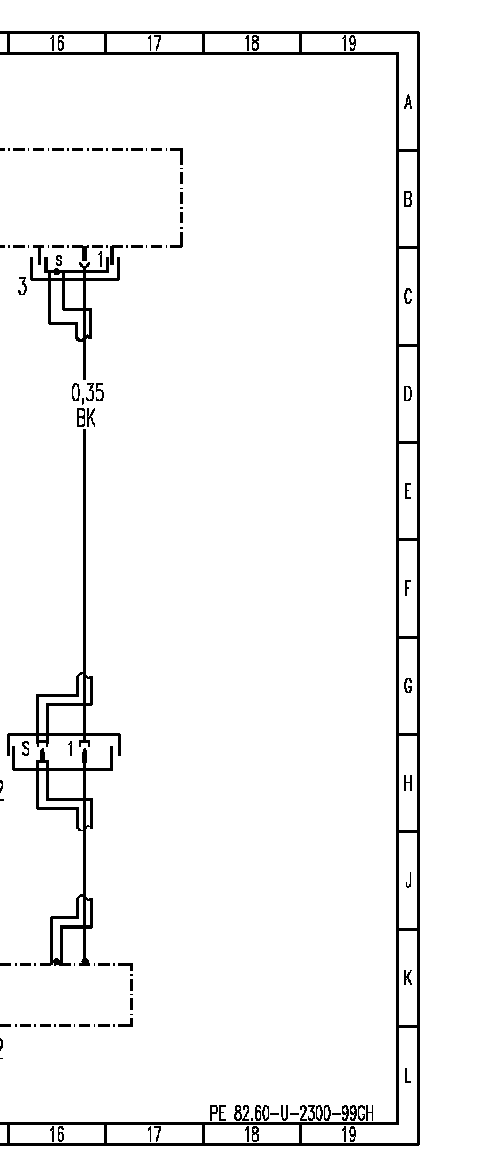

Wiring Diagram, Part 1:






Wiring Diagram, Part 2:

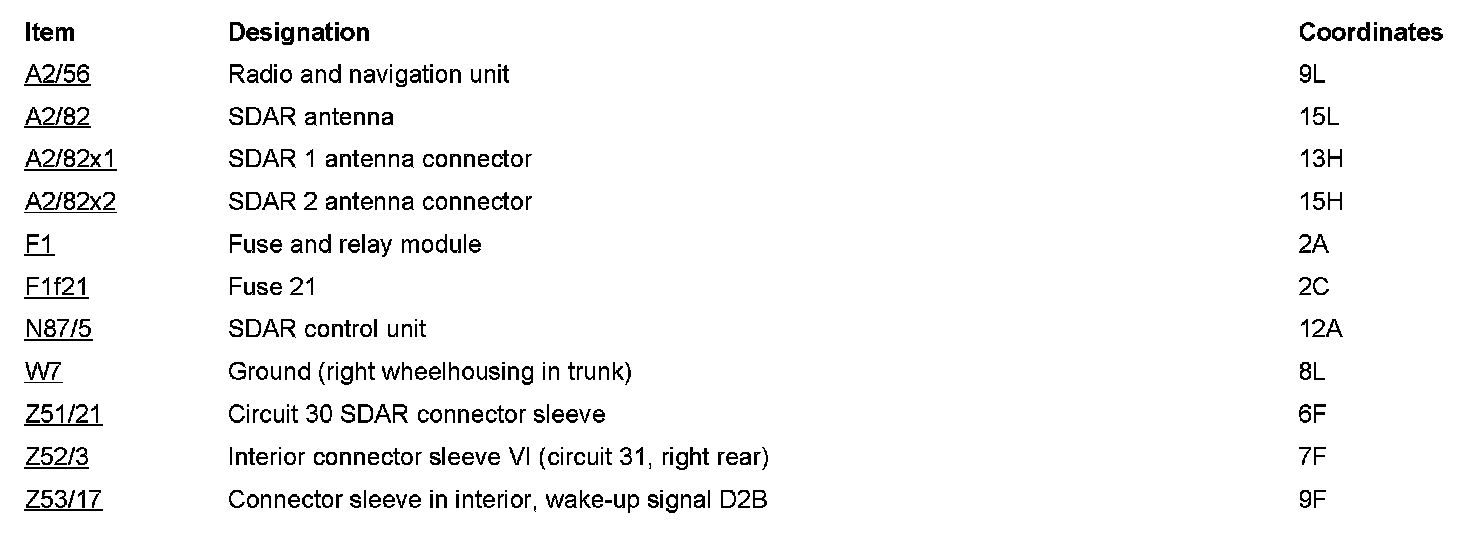

Component Description/Coordinates, A2/56 to Z53/17:
