AH20.00-P-1142-01GH Notes on Coolant Level

Notes on Engine Coolant Level

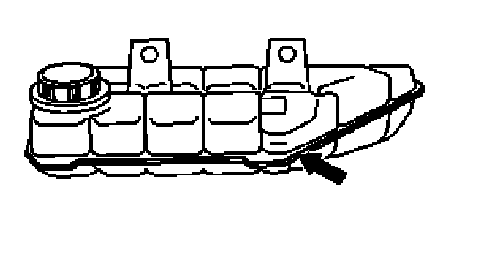

When the engine is cold, the coolant level must extend up to the marking (arrow) on the coolant expansion reservoir.

When coolant is warm: about 1 cm above this marking.
