AN20.30-P-0001T Retrofit Coolant Preheater



AN20.30-P-0001T Retrofit Engine Coolant Preheater

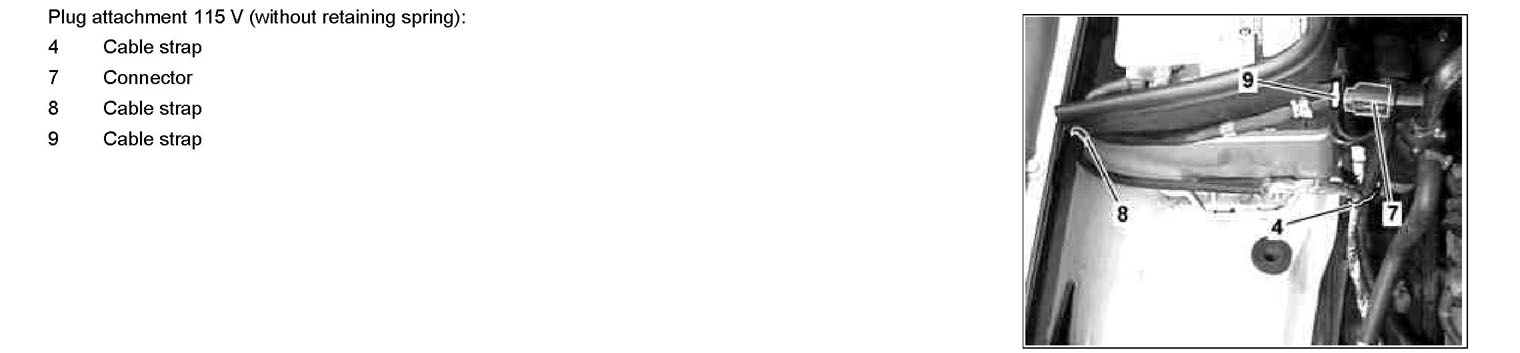

Component Identification:

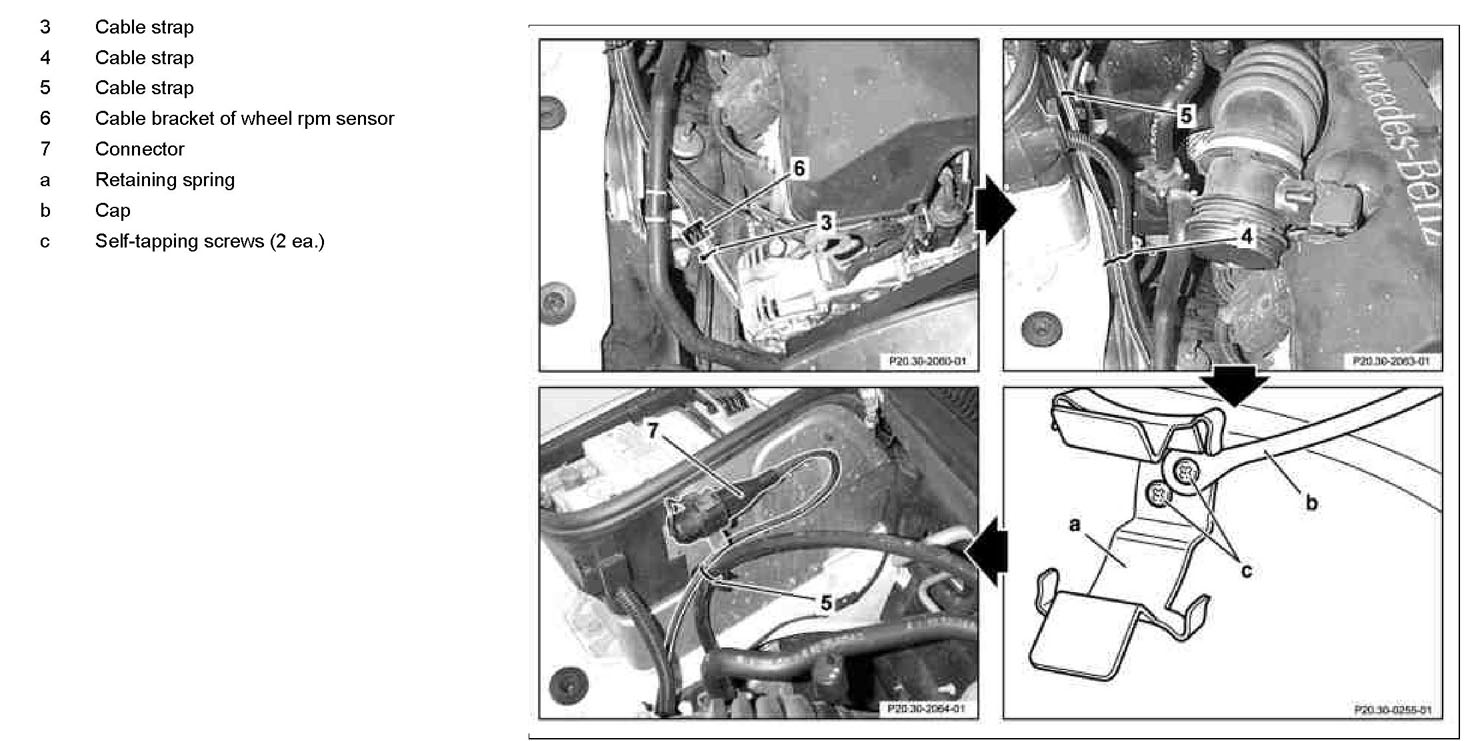

Component Identification:




Component Identification:

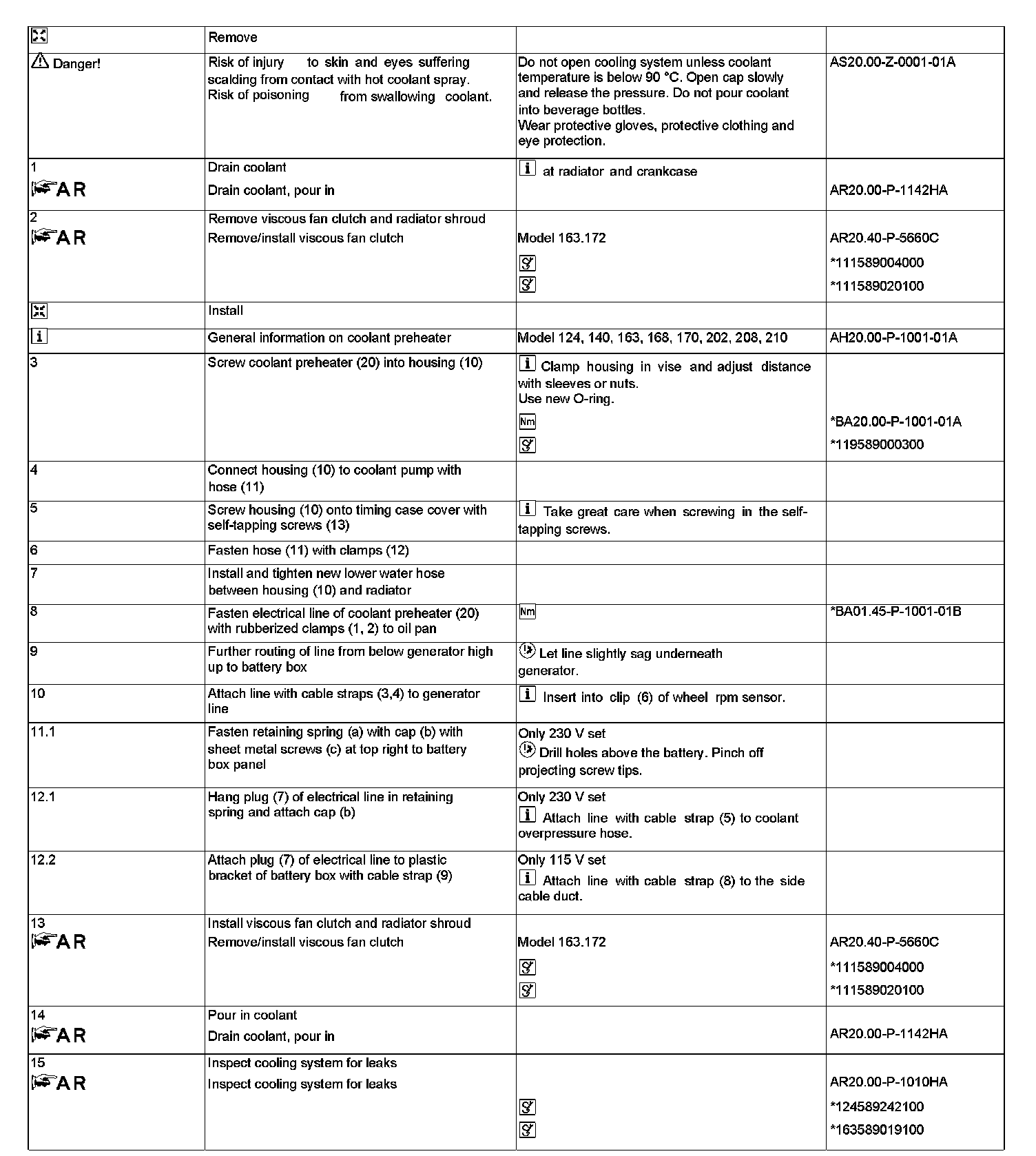

Steps 1-15:

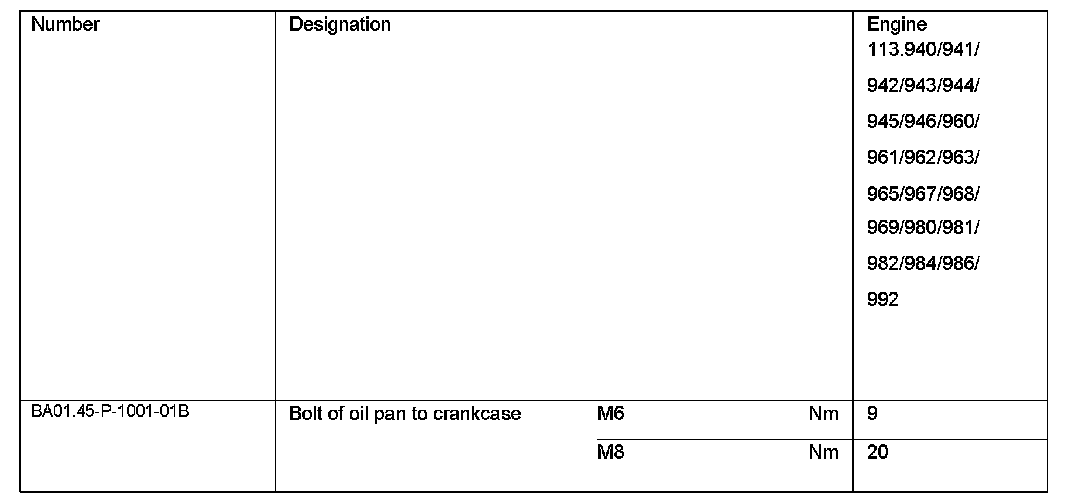

Oil Pan:

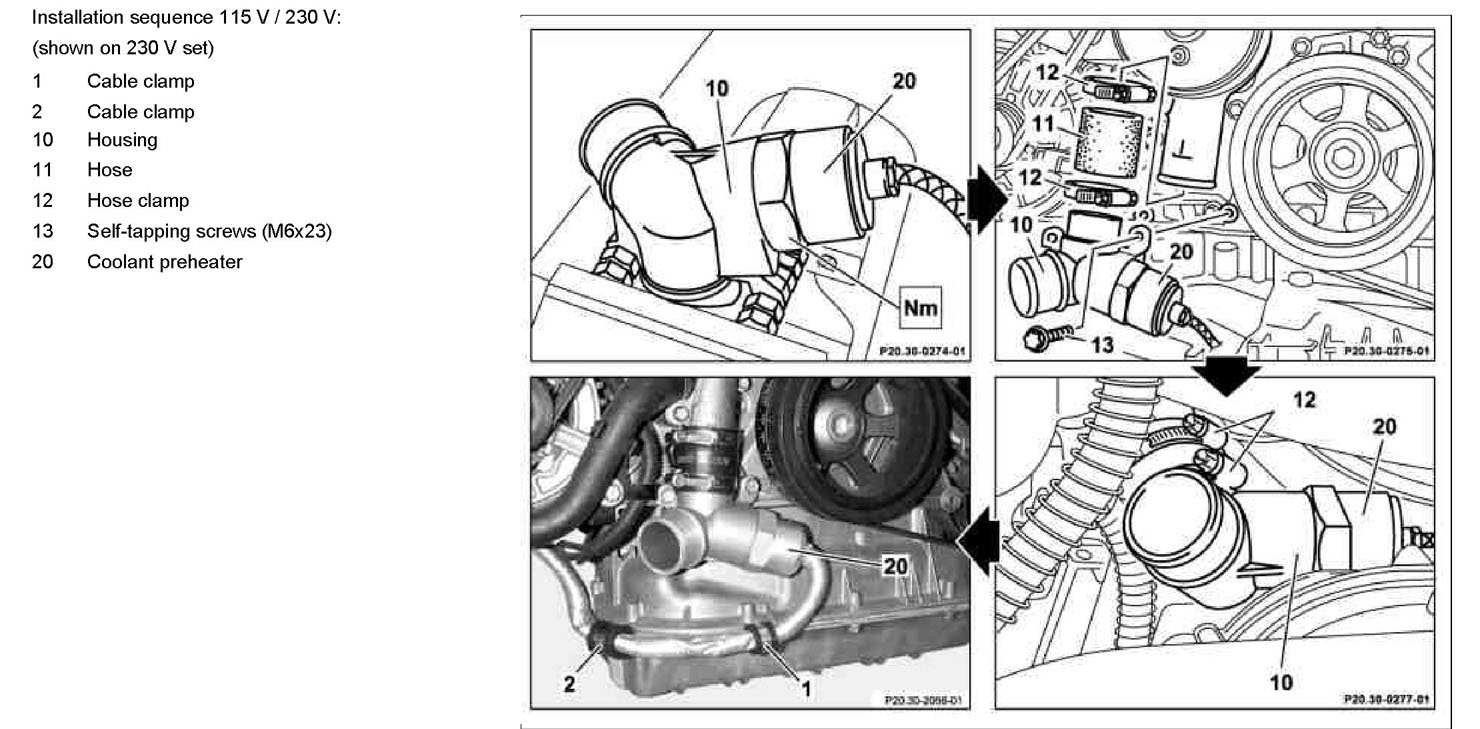

Coolant Preheater:

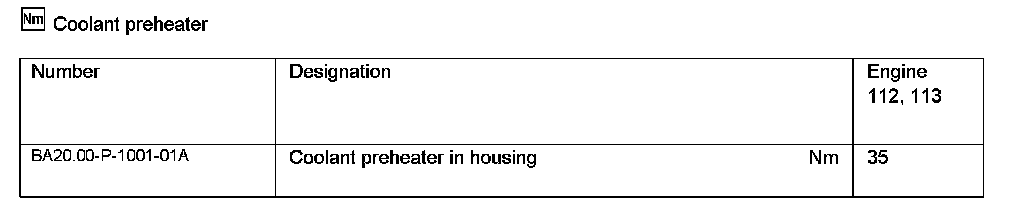

Special Tools:

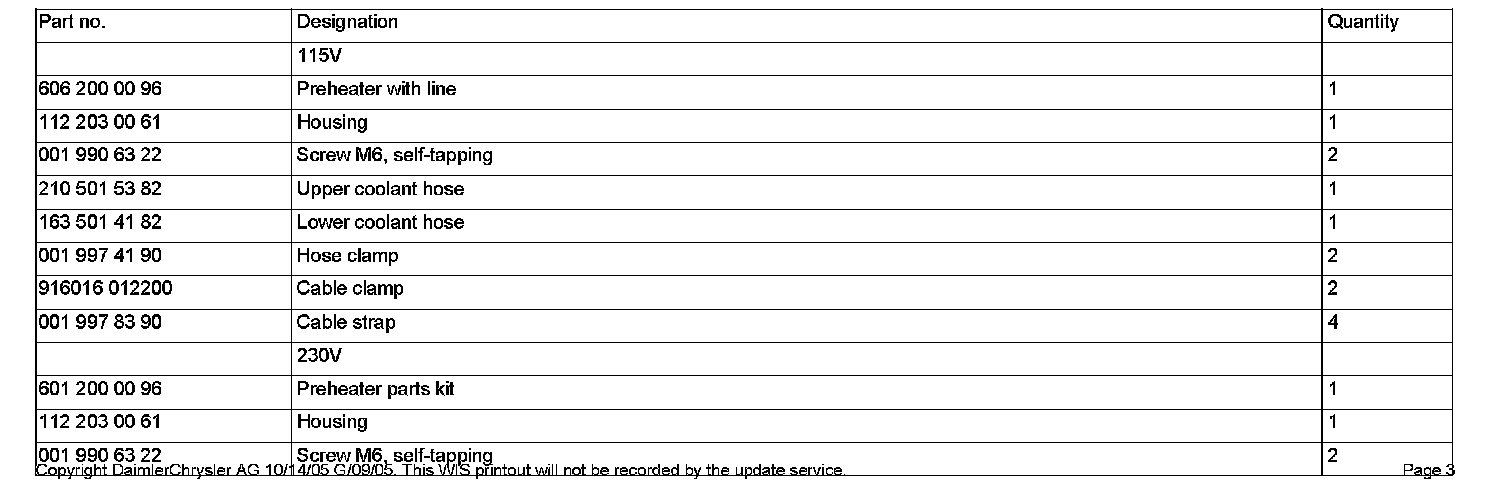

Part No.:

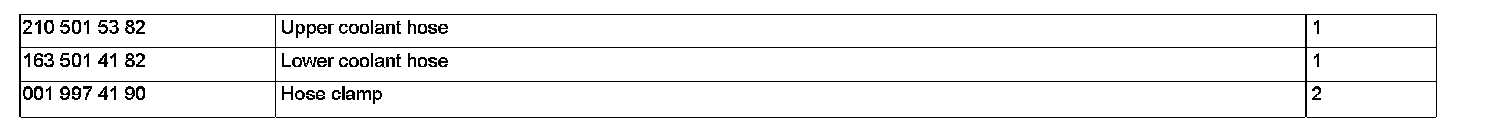

Part No.:
