AR68.10-P-1500GH Remove/Install Cover Below Instrument Panel (Left)
Removing And Installing Cover Below Instrument Panel (Left)
Model 163.136/154/172 #A as of 145273,
Model 163.136/154/172 #X as of 708319,
Model 163.113/128/157/174/175
Remove/Install

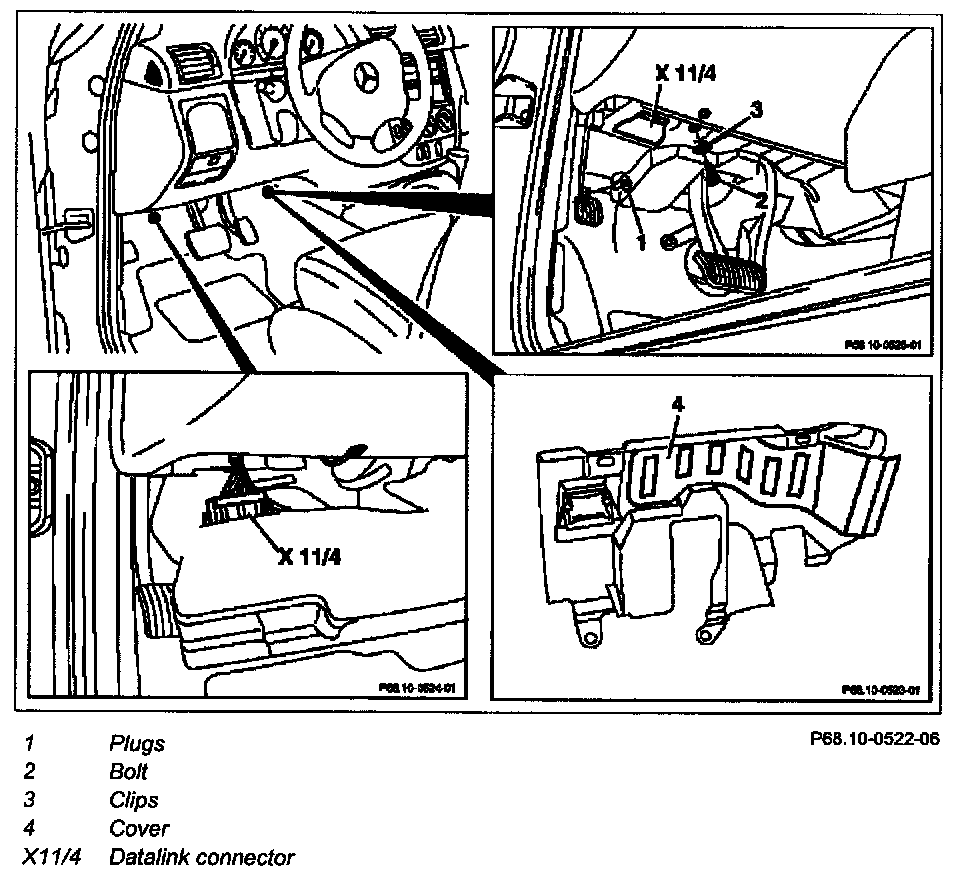

1 Remove plug (1)
NOTE: 2 each.
2 Unscrew screw (2)
NOTE:
- 2 each.
- Installation: Observe clips (3).
3 Unlock and remove data link connector (X11/4)
4 Take off cover (4)
5 Install in the reverse order
