AR54.30-P-6031GH Remove/Install Instrument Cluster Housing

Removing And Installing Instrument Cluster Housing







Removing, installing
1 Remove instrument cluster
2 Unclip retaining lugs (arrows)

NOTE: Installation: The retaining lugs must lock fully in position.

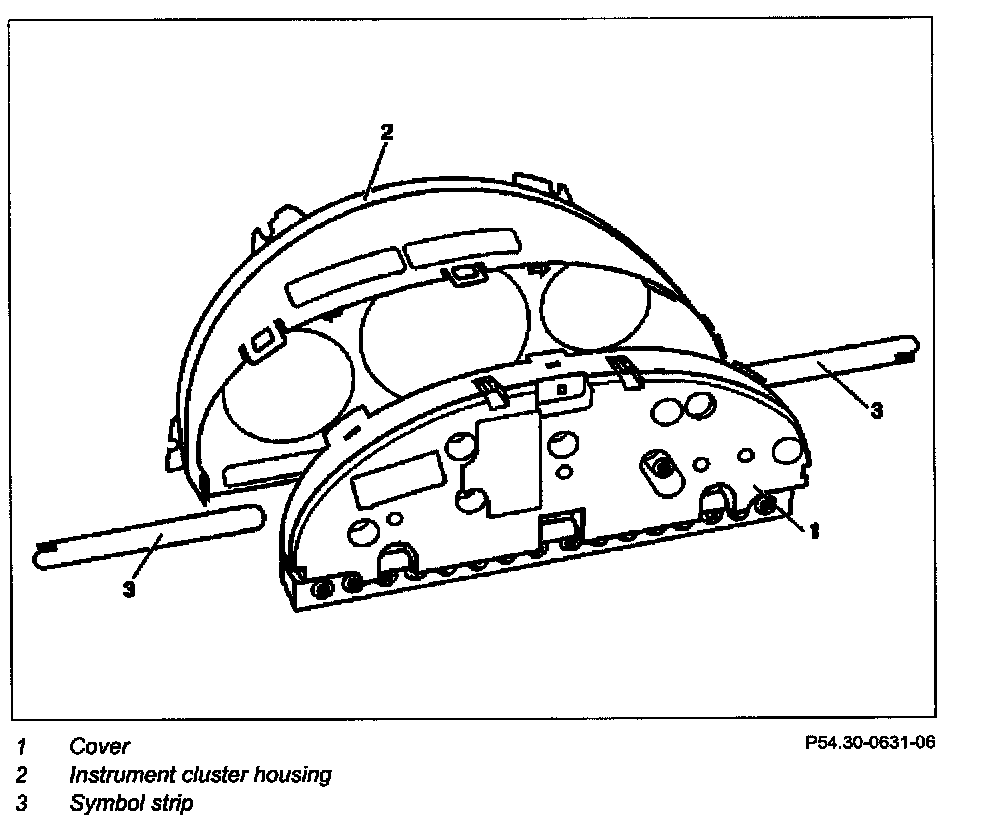

3 Remove cover (1) from instrument cluster housing (2)

NOTE:
- The symbol strips (3) may fall out sideways.
- Installation:
- Pay attention to vehicle equipment when replacing symbol strips.
- Ensure the adjusting knobs for the odometer and electronic clock are seated correctly.

4 Install in reverse order
