AR82.10-P-5103GI Remove/Install Fog Lamp

Remove/Install Fog Lamp
- except CODE (U49) Styling Package






Remove/Install
1 Press lever (1) to release the fog lamp (2)
- Pulling hook: See Special Tools below.

2 Disconnect fog lamp (2) from front bumper

NOTE:
- Exercise caution when pulling at the edges of the fog lamp.
- Installation: First notch in the fog lamp at the edges. Ensure that the lever (1) securely holds the fog lamp in place.

- Pulling hook: See Special Tools below.

3 Disconnect electrical connector (3) from fog lamp
4 Pull off grommets (4)

NOTE: Installation: Ensure that the grommets are installed loosely and without kinks.

5 Install in the reverse order
6 Check fog lamp adjustment and adjust if necessary

Special Tools

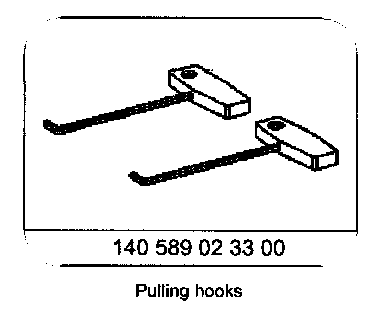

Pulling Hooks P/N # 140 589 02 33 00:
