Home
>>
Mercedes Benz Truck
>>
2005
>>
ML 500 (163.175) V8-5.0L (113.965)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>

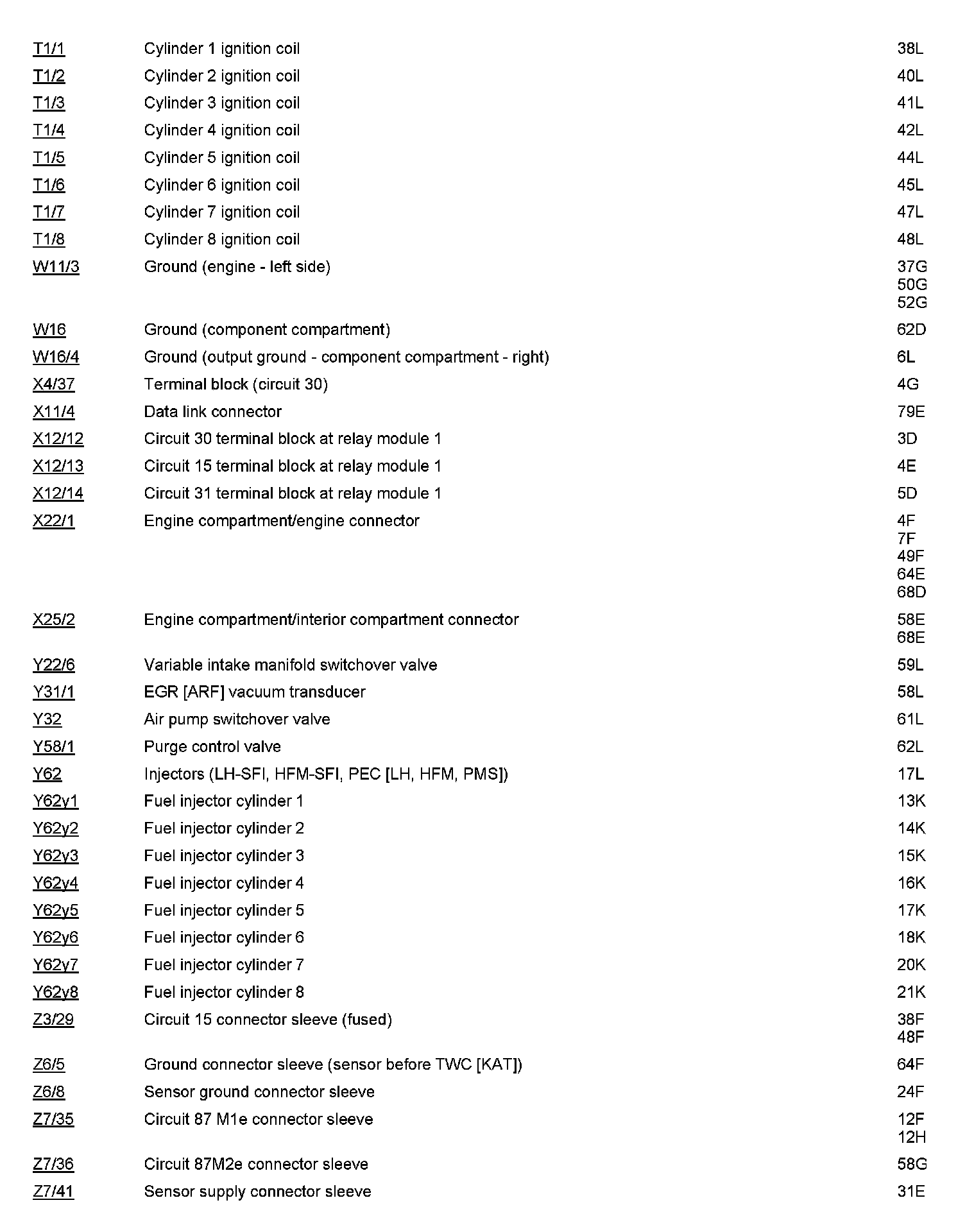

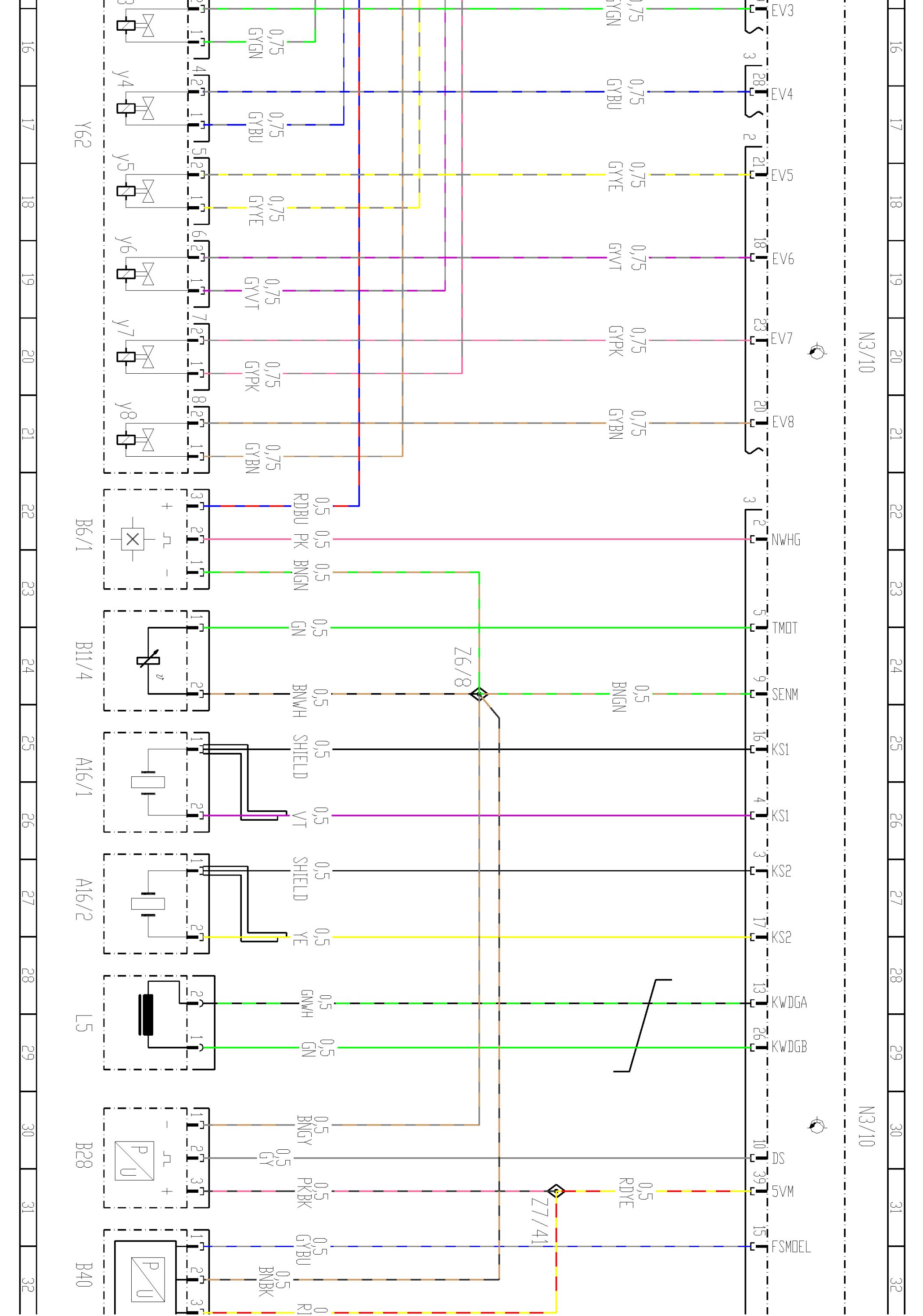

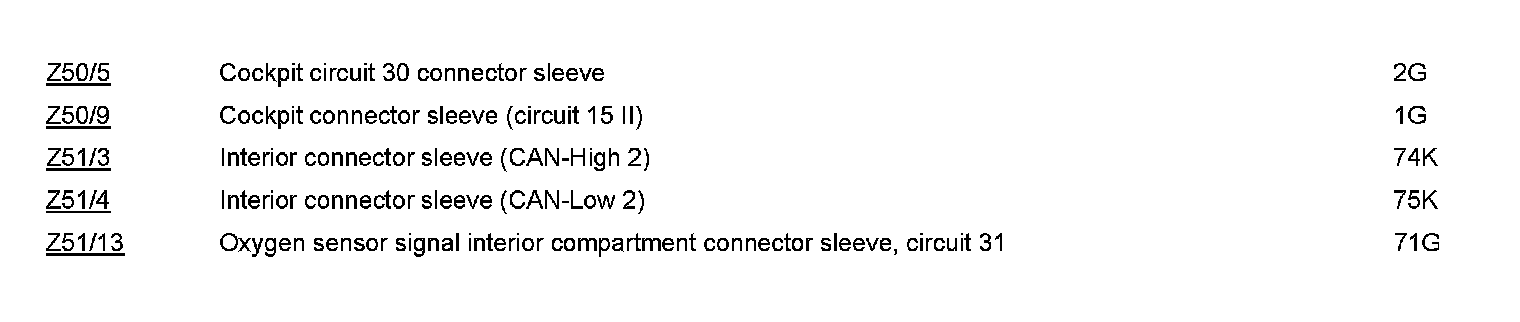

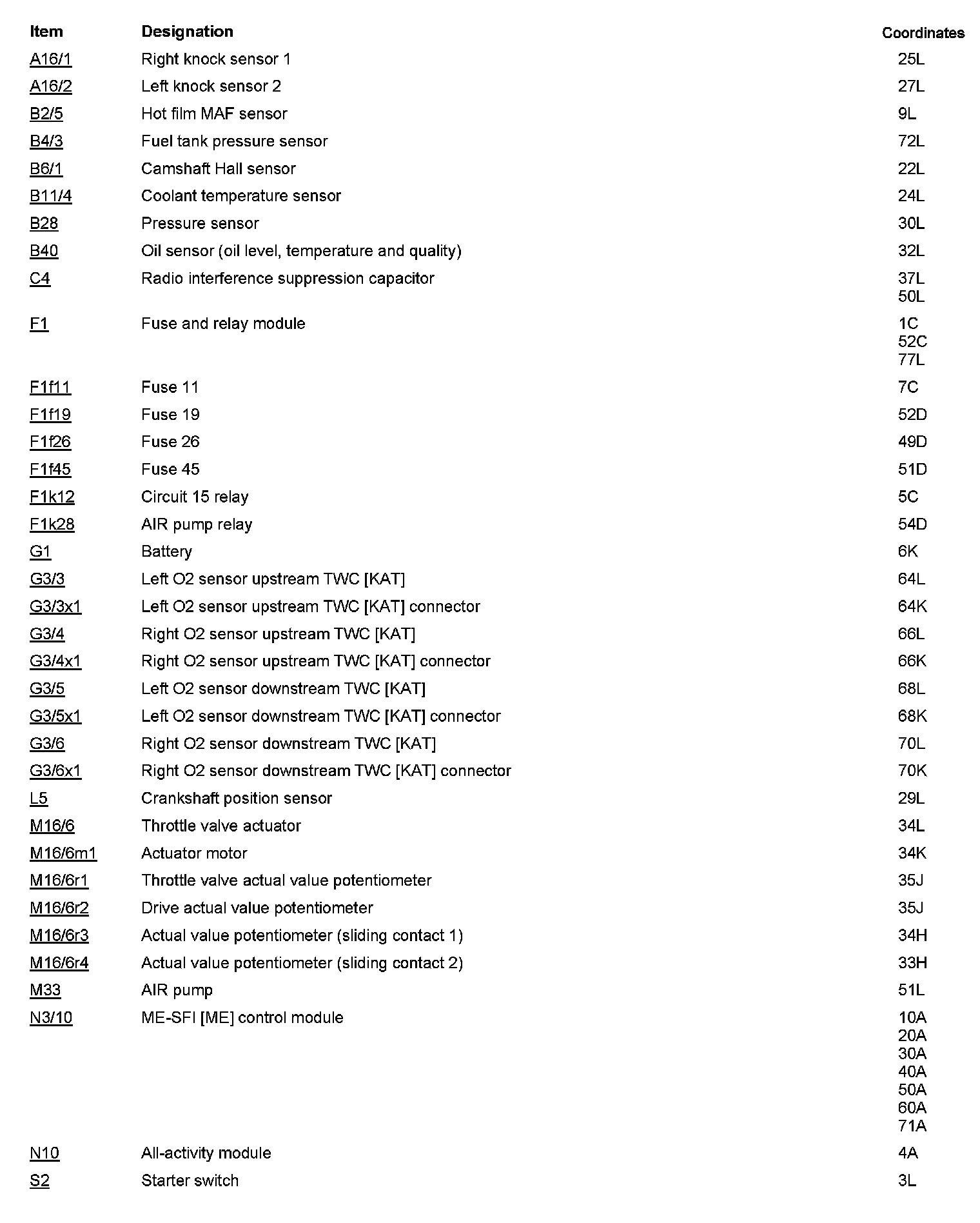

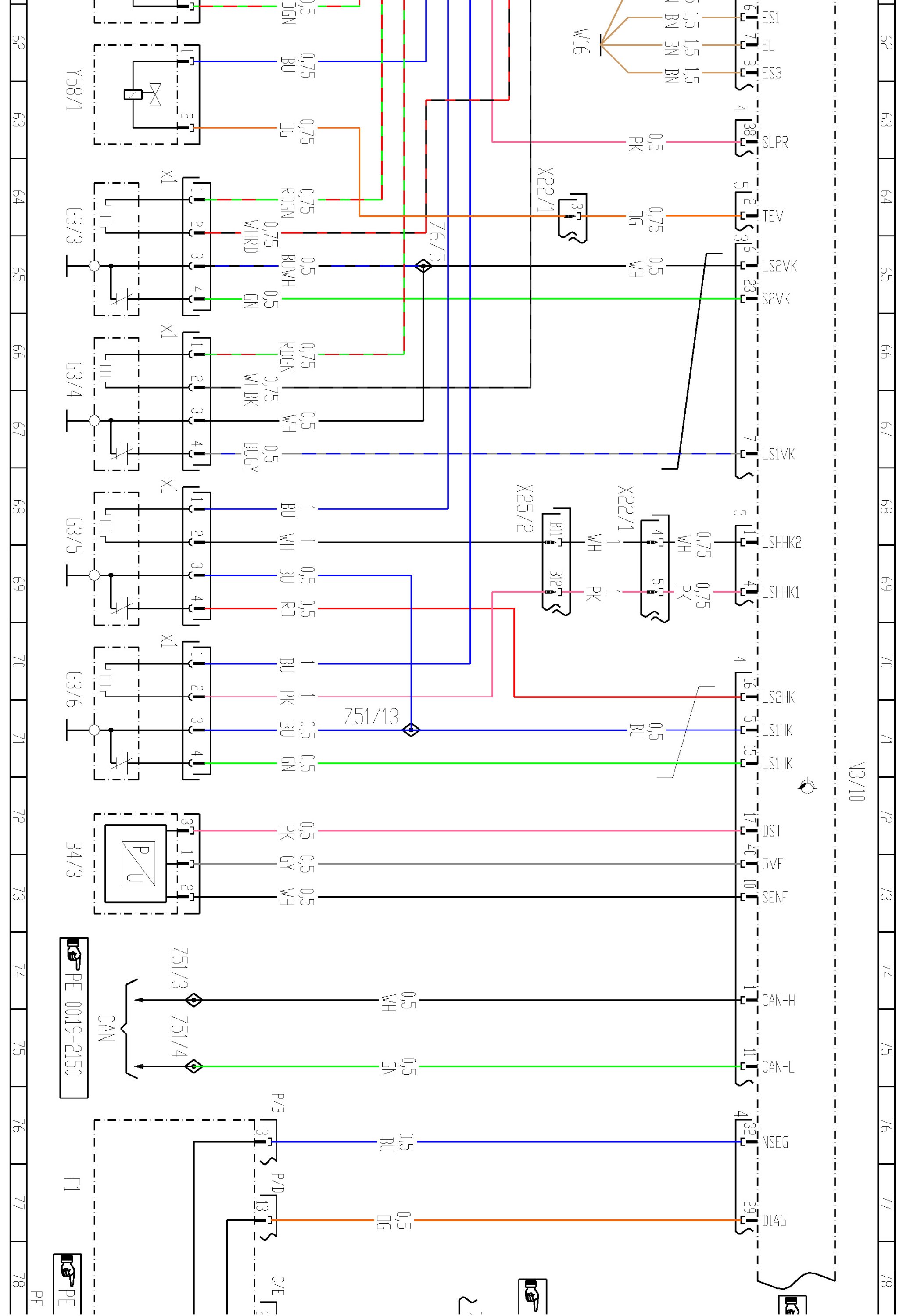

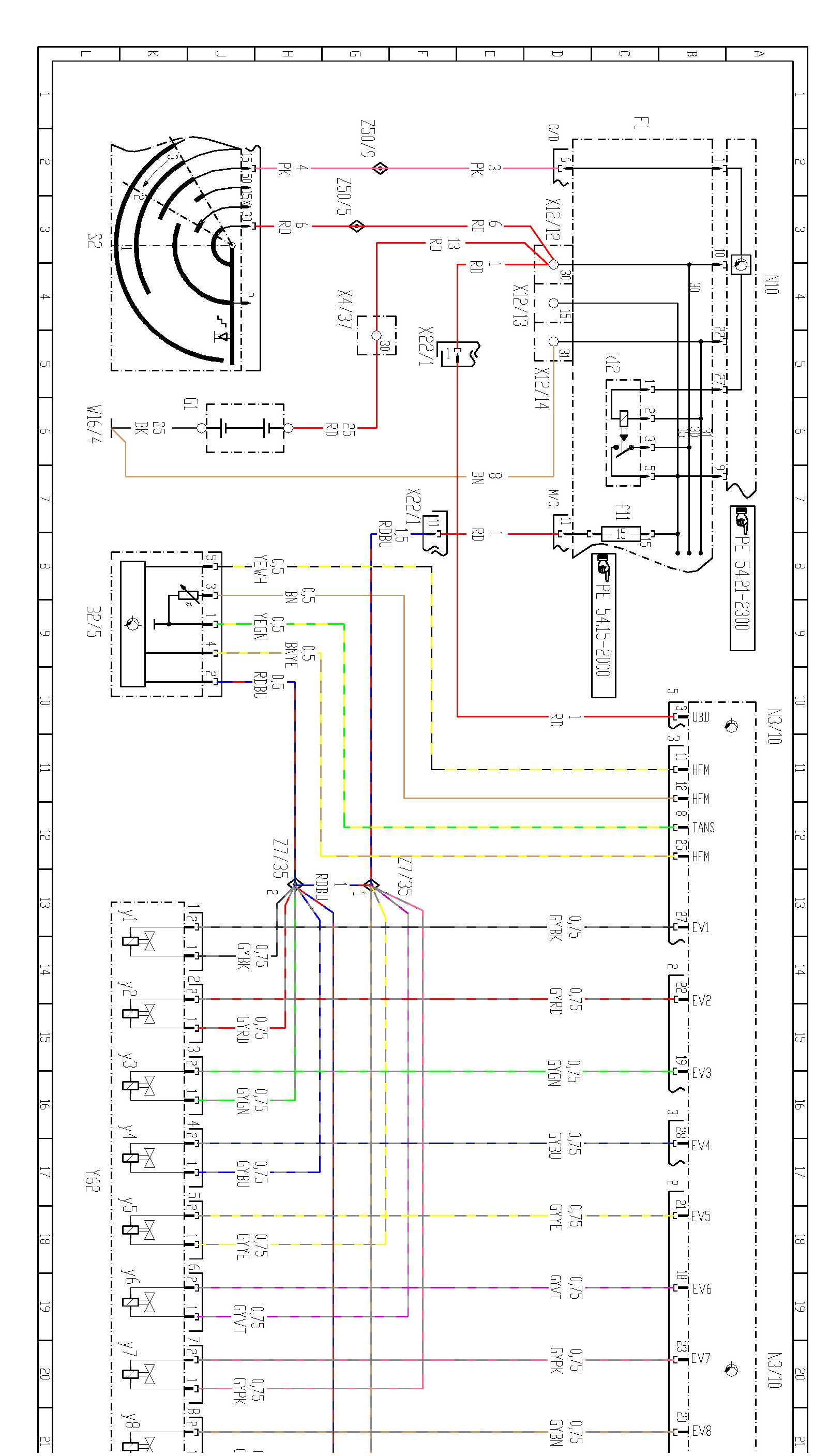

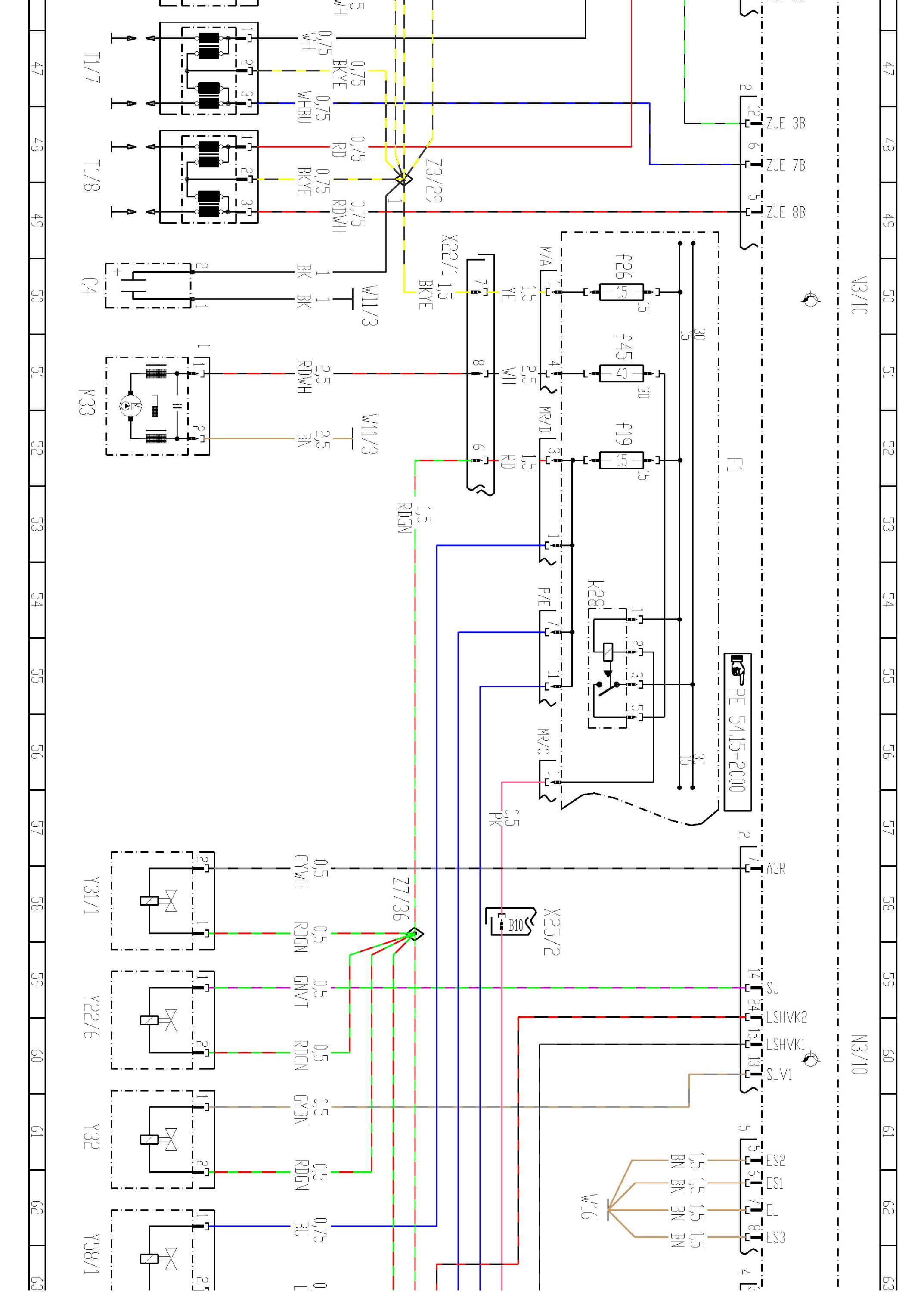

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000GS
ME-SFI Fuel Injection/Ignition System PE07.61-U-2000GS
ME-SFI Fuel Injection &
Ignition System
PE07.61-U-2000GS
- Engine Block Wiring Harness
- As of 09/02
