AR35.20-P-0107GH Remove/Install Rear Upper Wishbone, Replace Rubber Mount


Removing and Installing Upper Wishbone, Replacing Rubber Mount

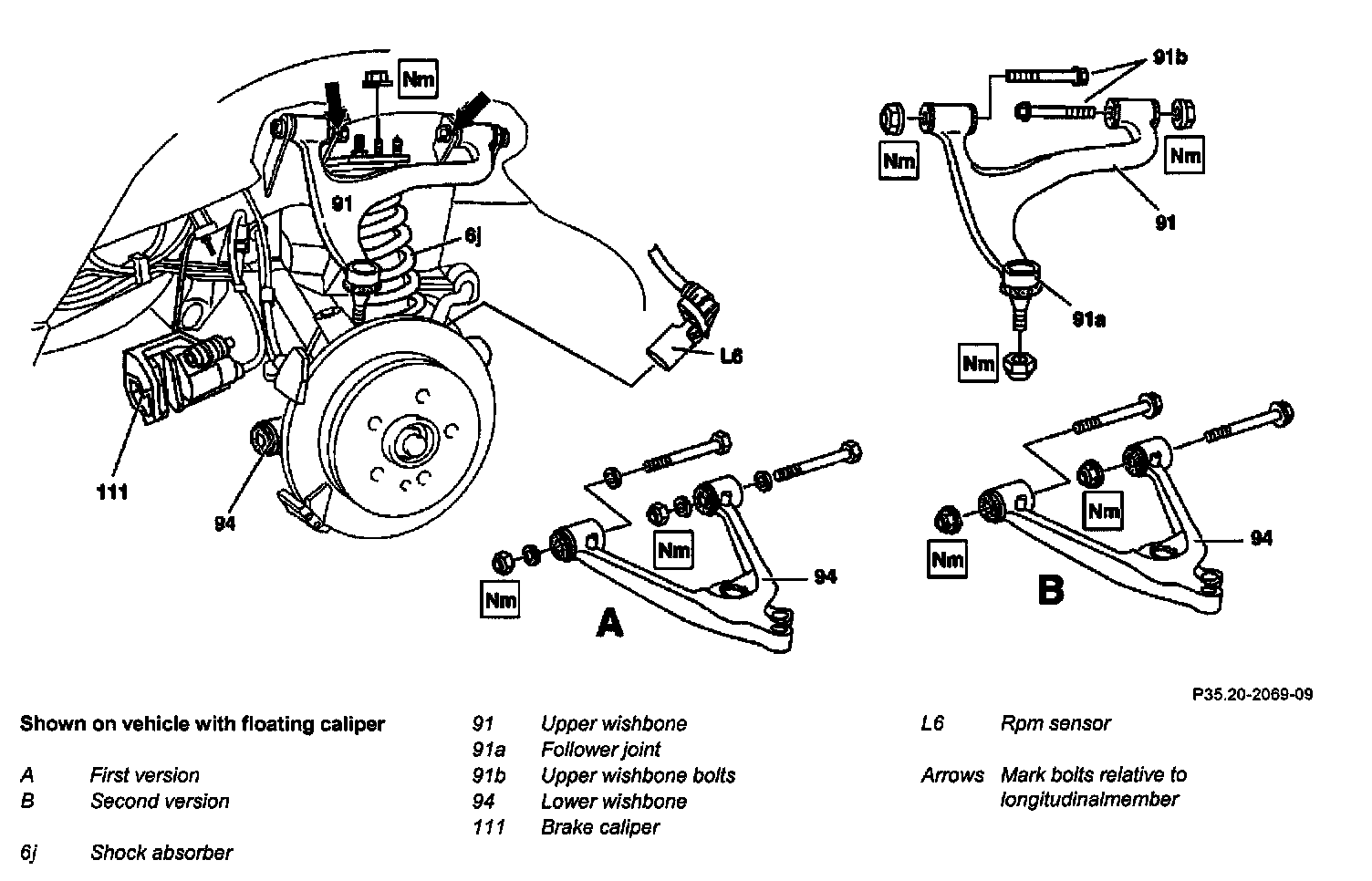

Procedure Illustration:






Service Procedure (Steps 1 - 6):

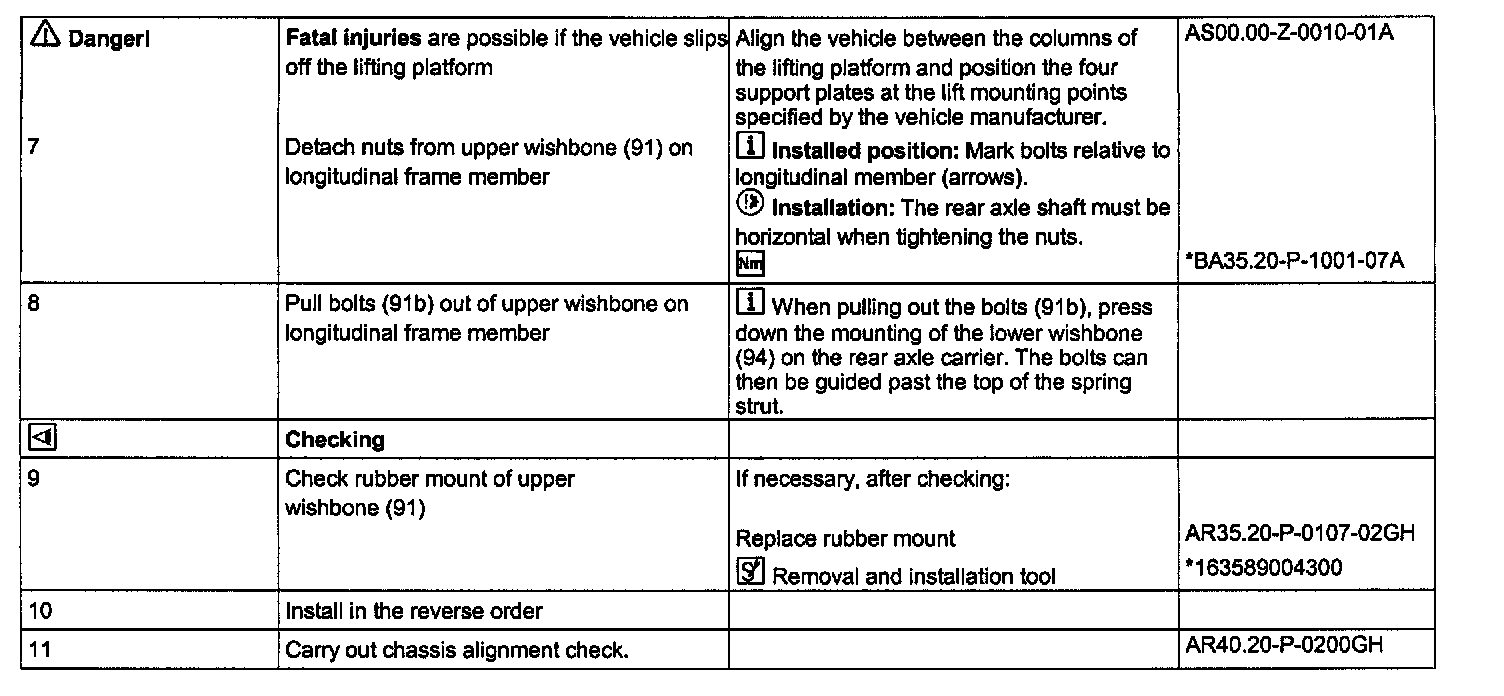

Service Procedure (Steps 7 - 11):

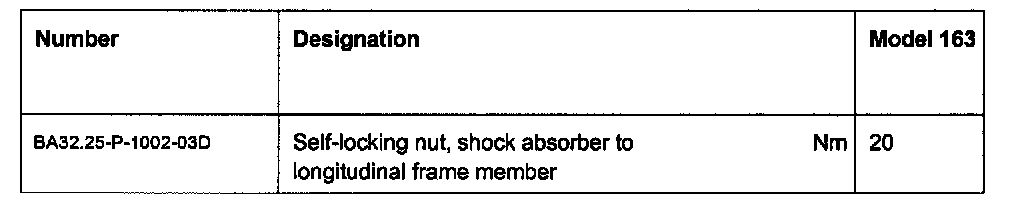

Specifications, Rear Axle Shock Absorber:

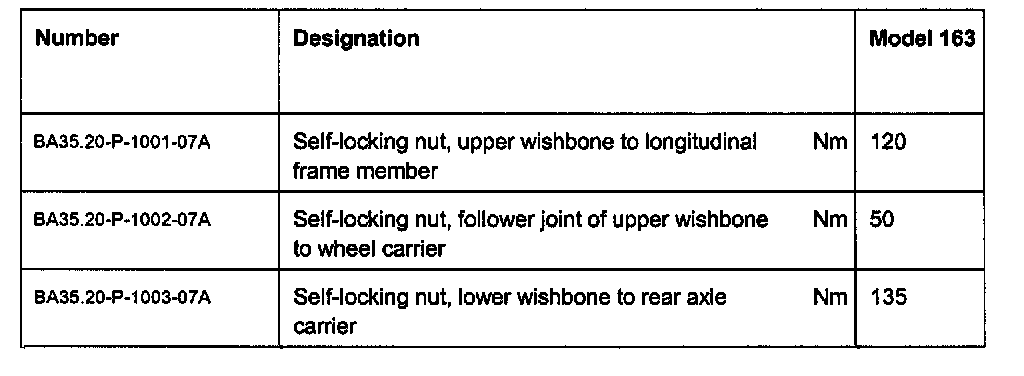

Specifications, Wheel location:






Special Tools:
