GF27.10-P-0001-20AHS Automatic Transmission (AT), Block Diagram
GF27.10-P-0001-20AHS Automatic Transmission (AT), Block Diagram

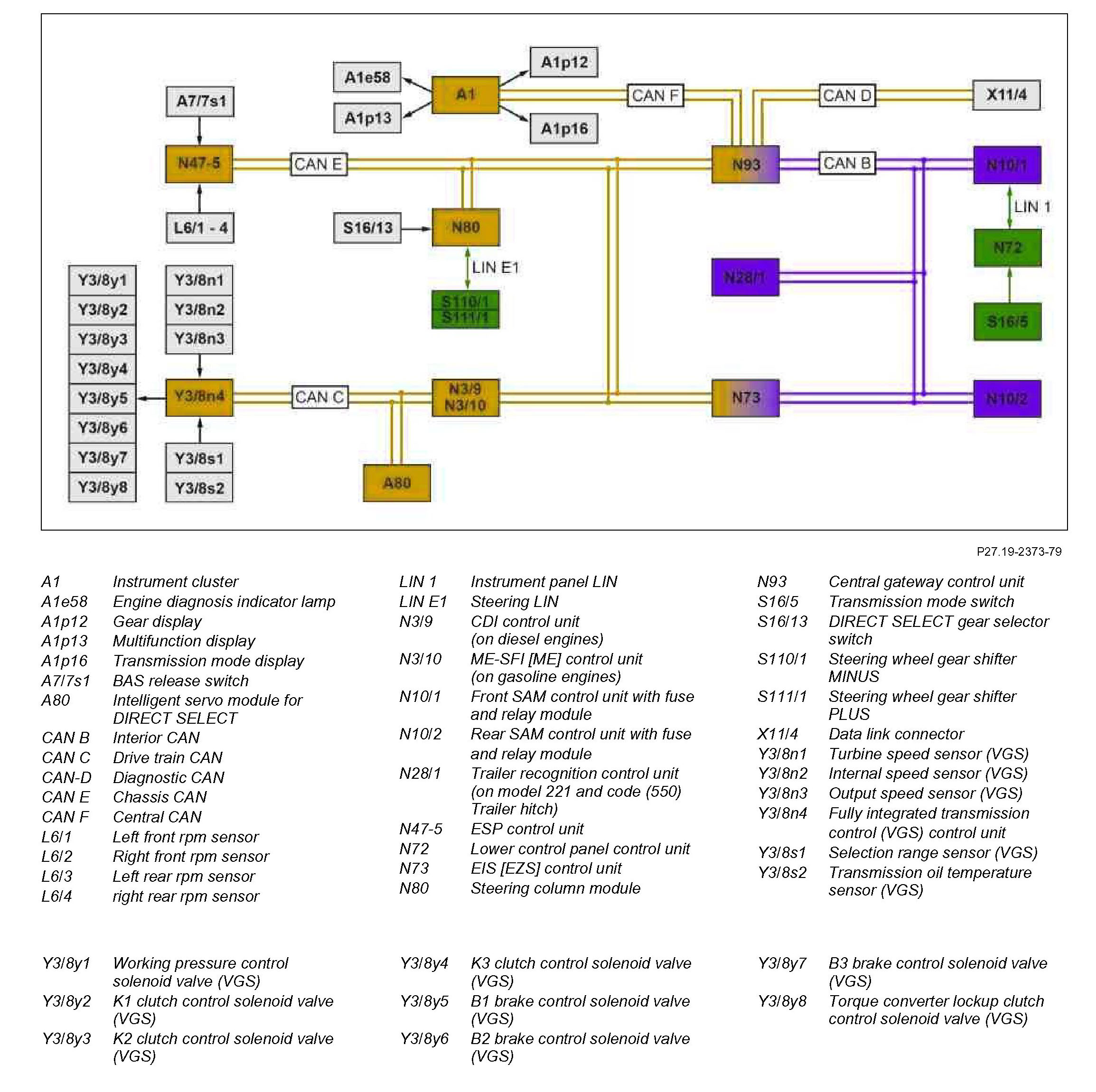

GF27.10-P-0001-20AHS Automatic transmission (AT), block diagram
- Transmission 722.9
