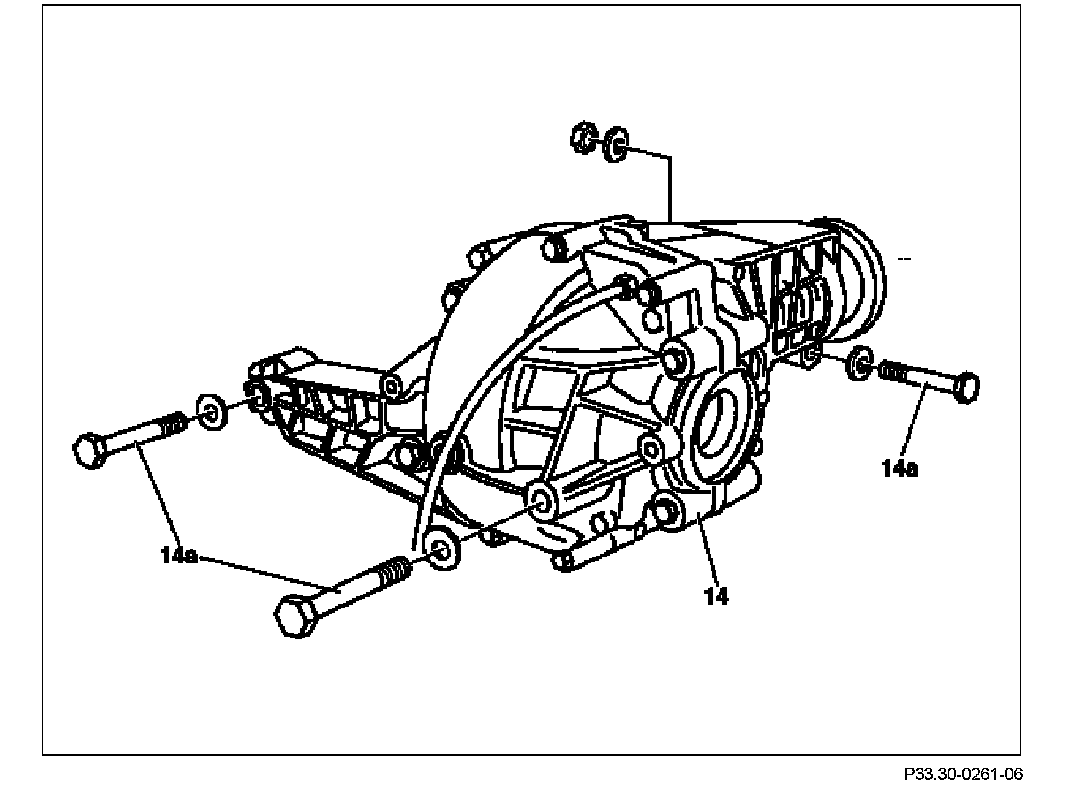

AR33.30-P-0525GH Remove/Install Front Axle Gear

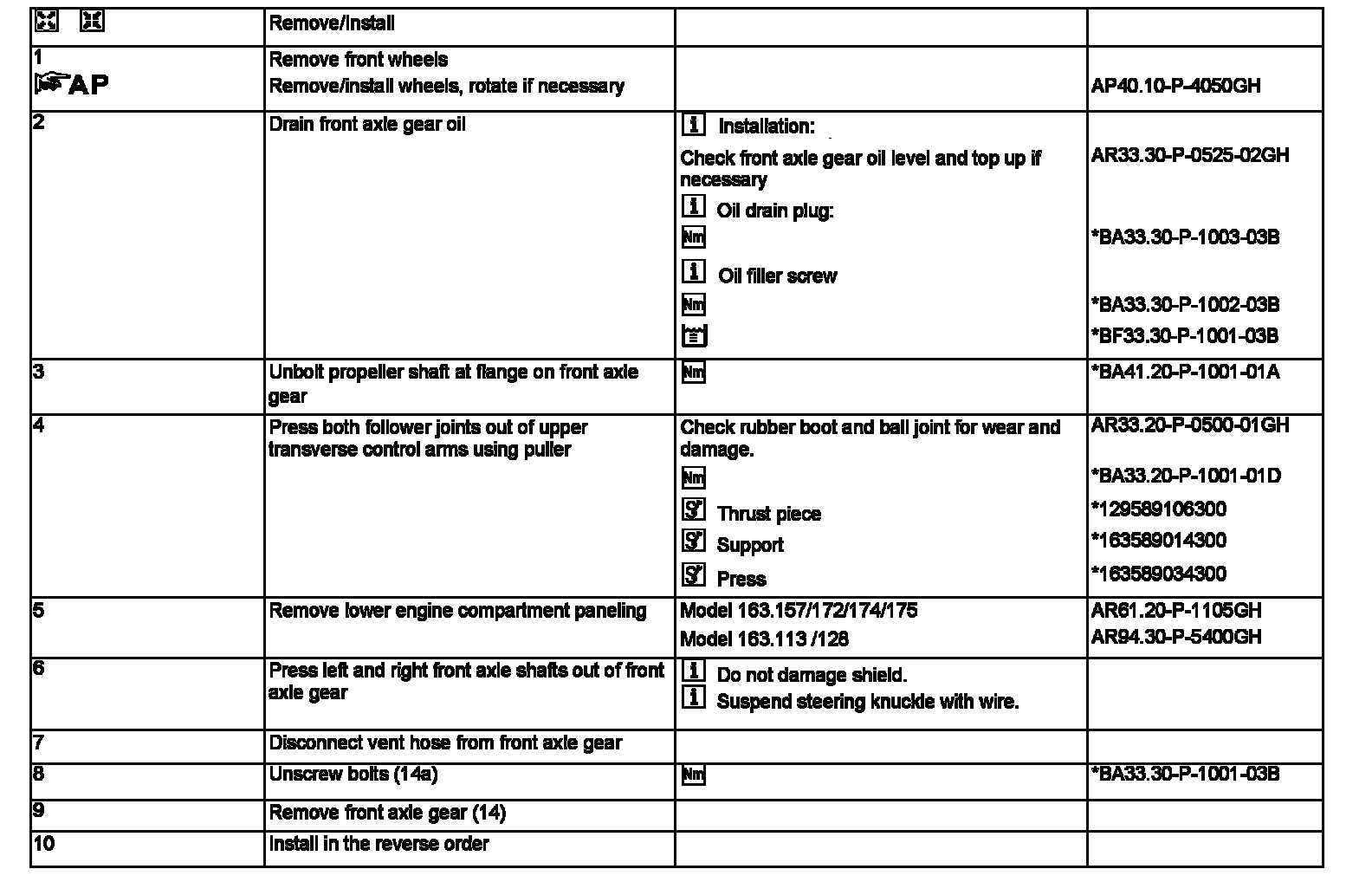

Remove/install front axle gear









Wheel location, hub:
