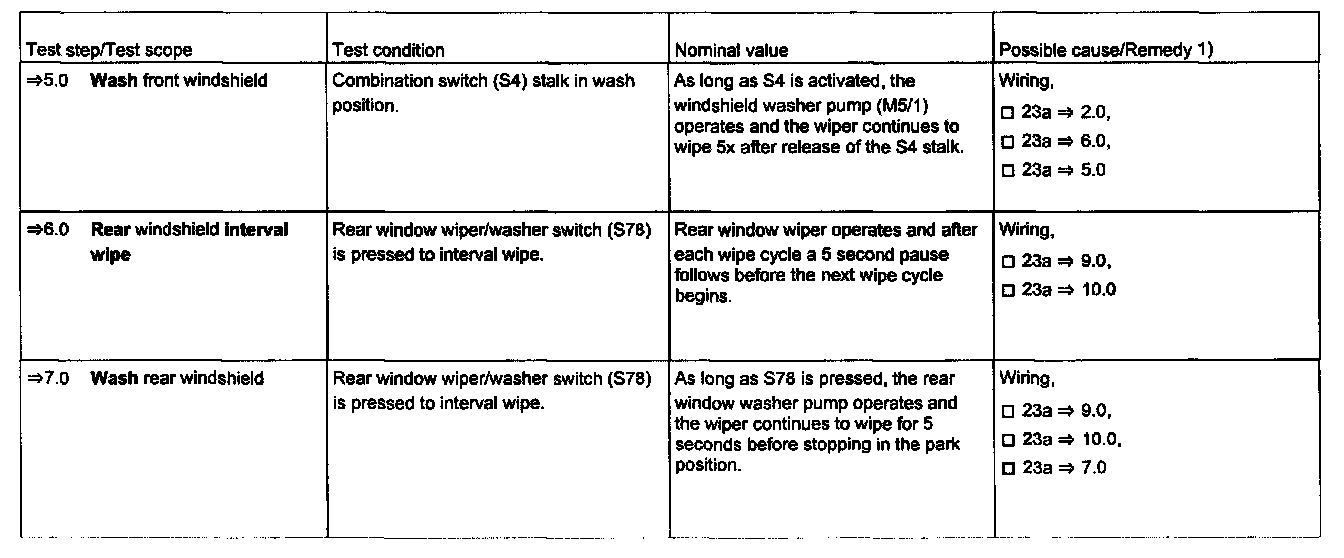

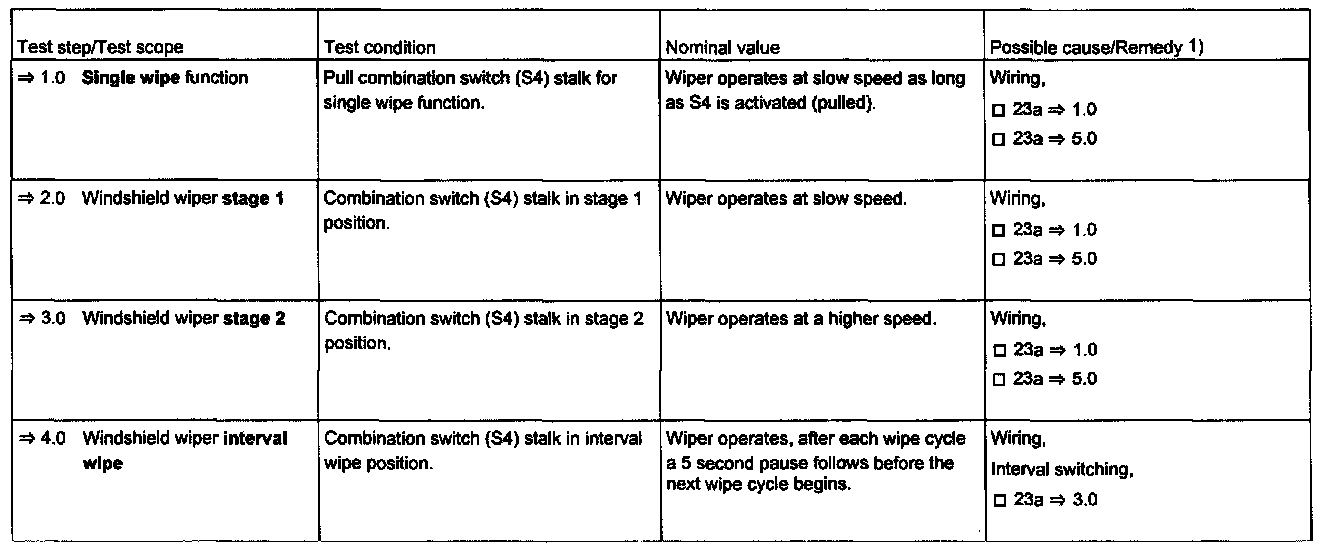

Function Test - Section 11
Function Test - Section 11
Preparation for Test:
1.
Battery voltage 11 to 14 V
2.
Fuses ok.
3.
Voltage supply to AAM is OK.
4.
Ignition: ON (Circuit 15)
