Function Diagrams

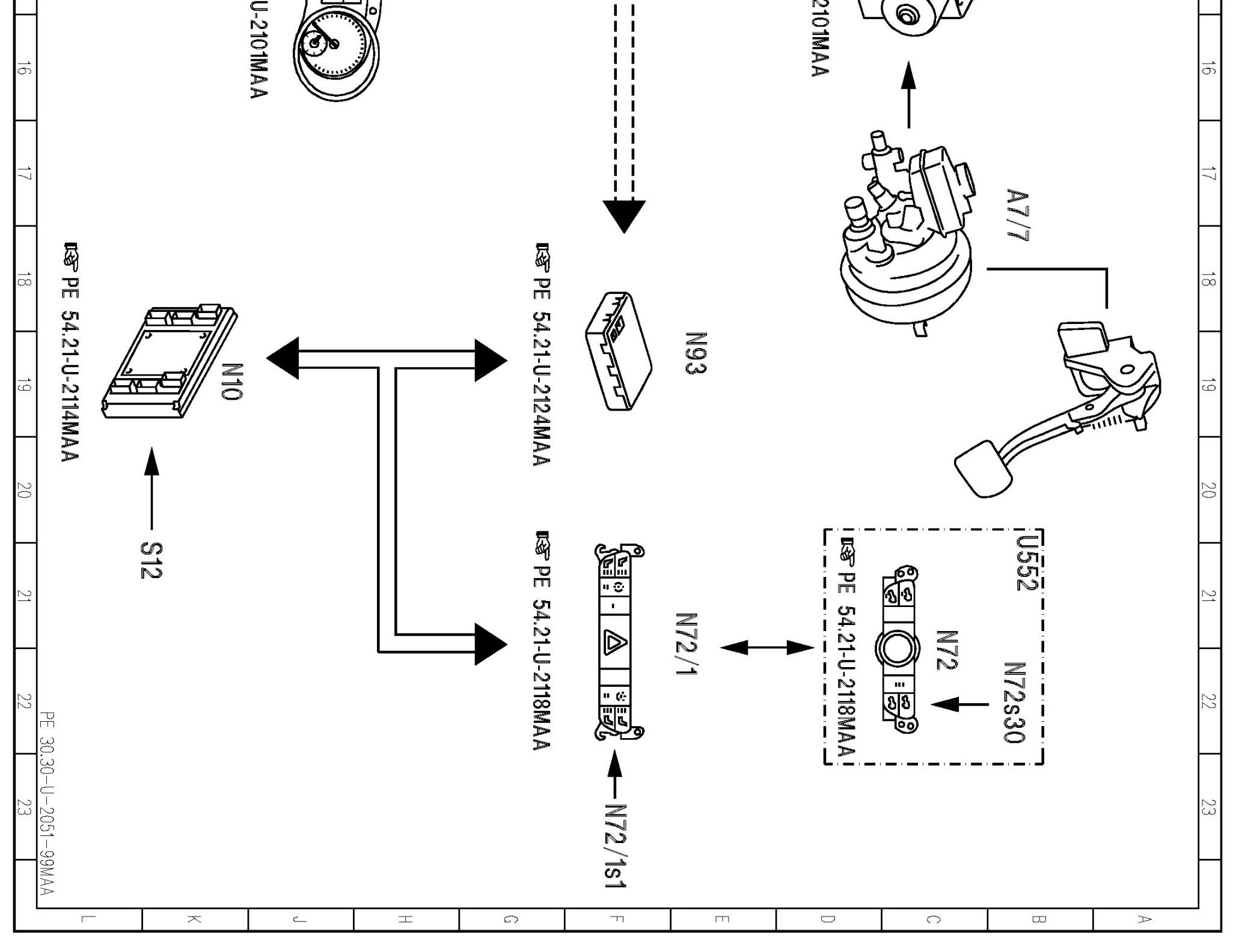

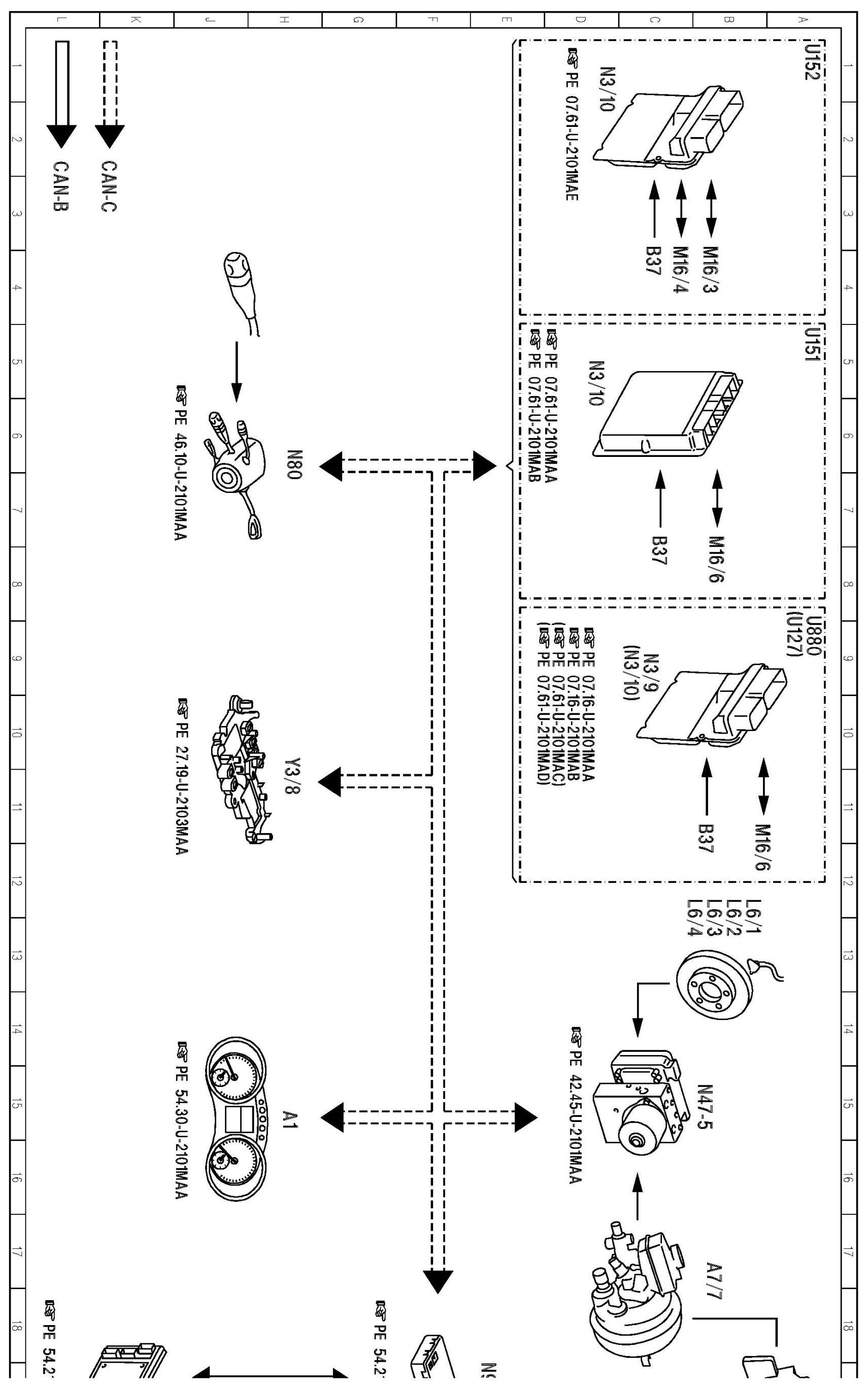

PE30.30-U-2051MAA Electrical Function Diagram For Cruise Control (CC)

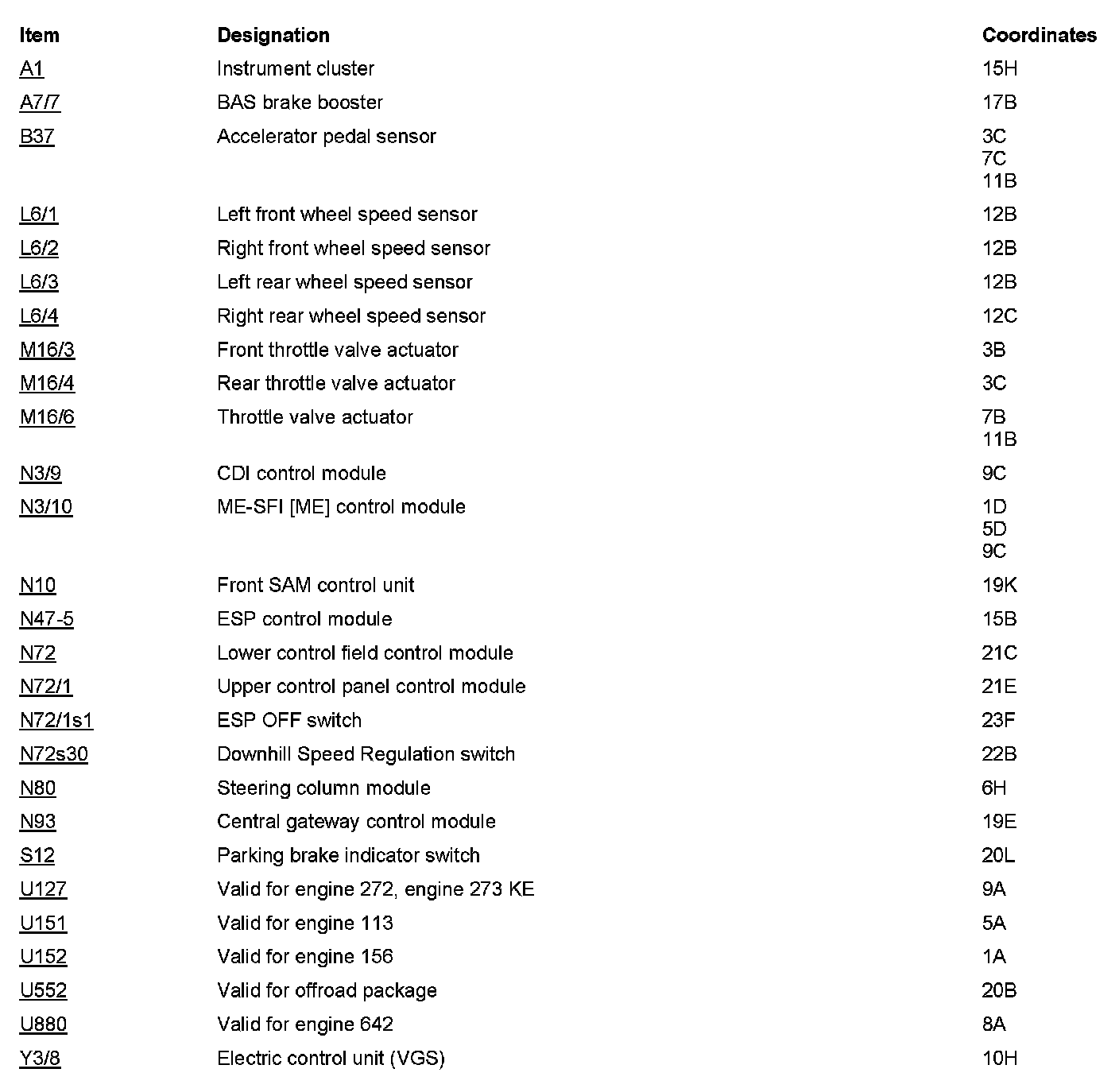

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
