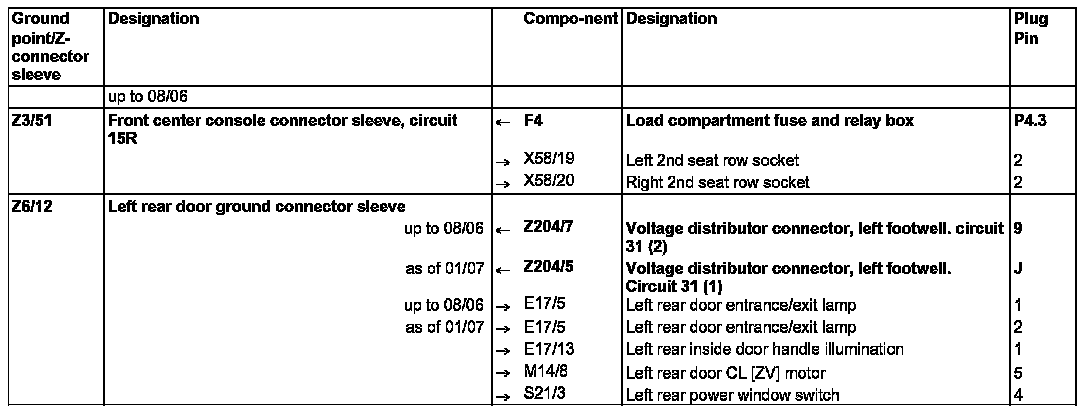

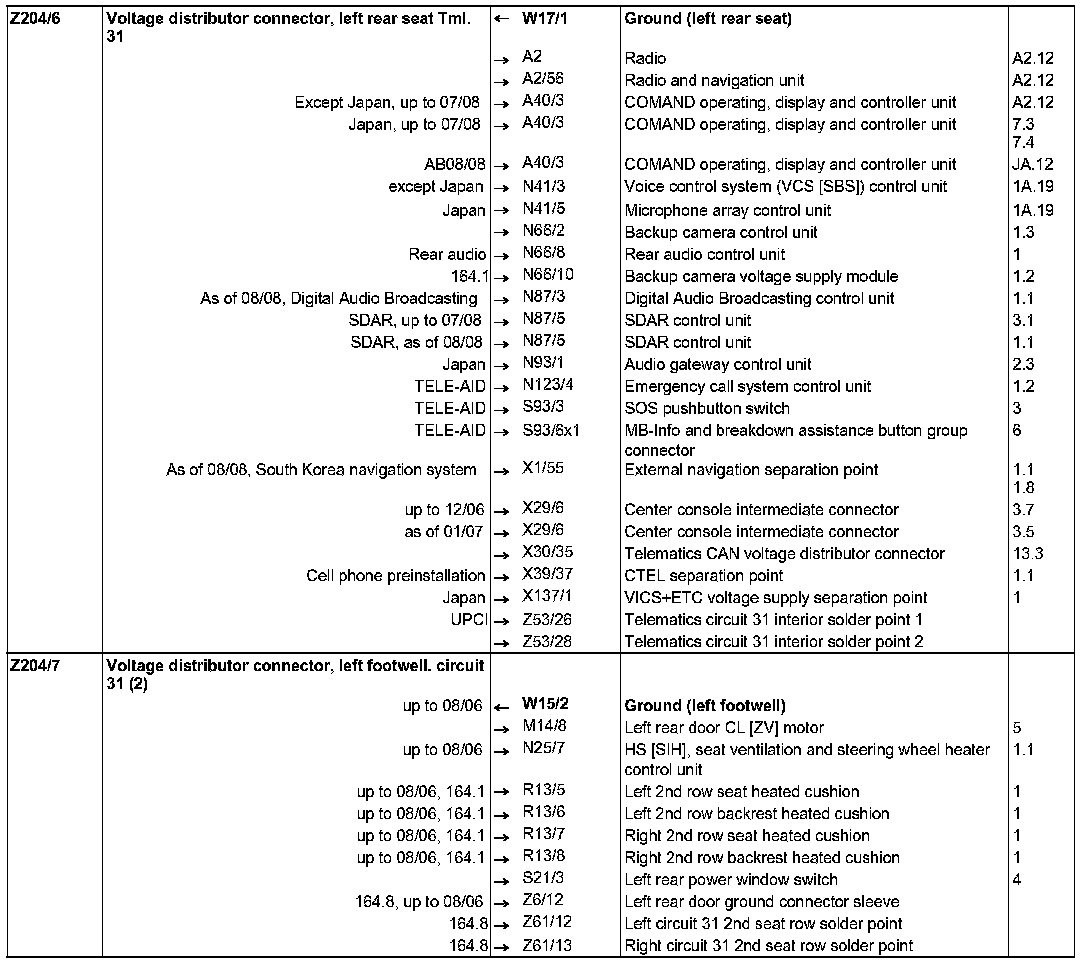

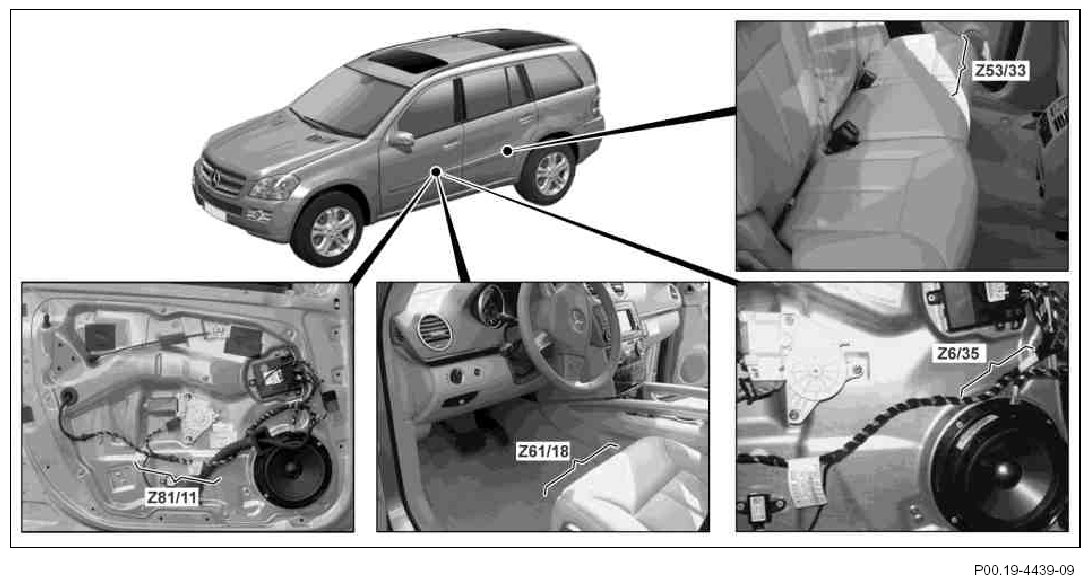

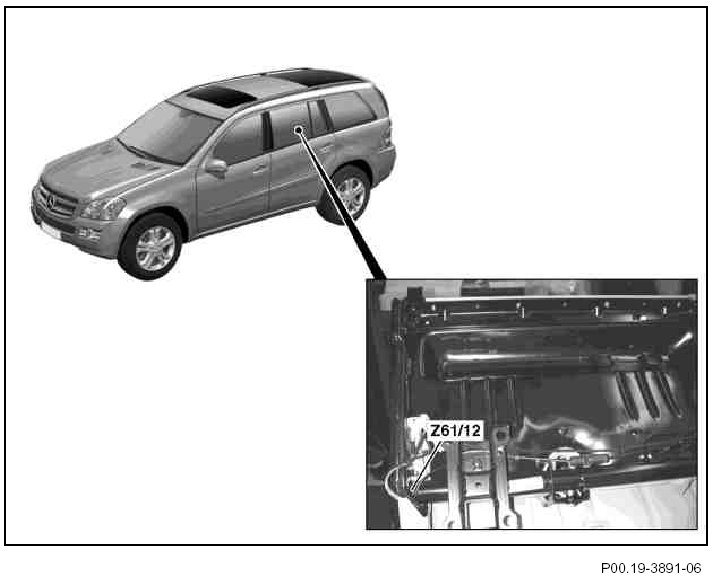

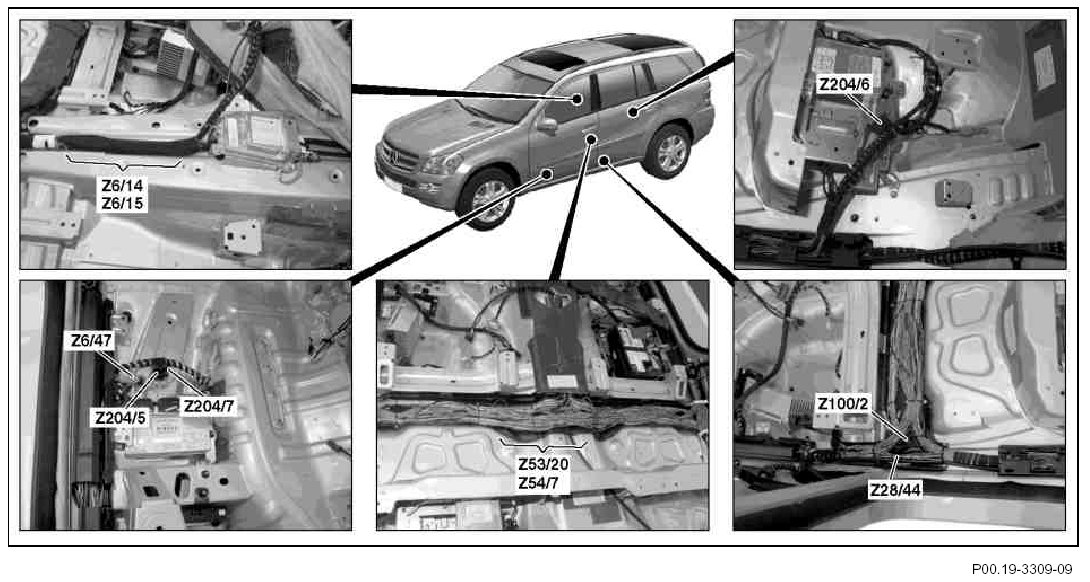

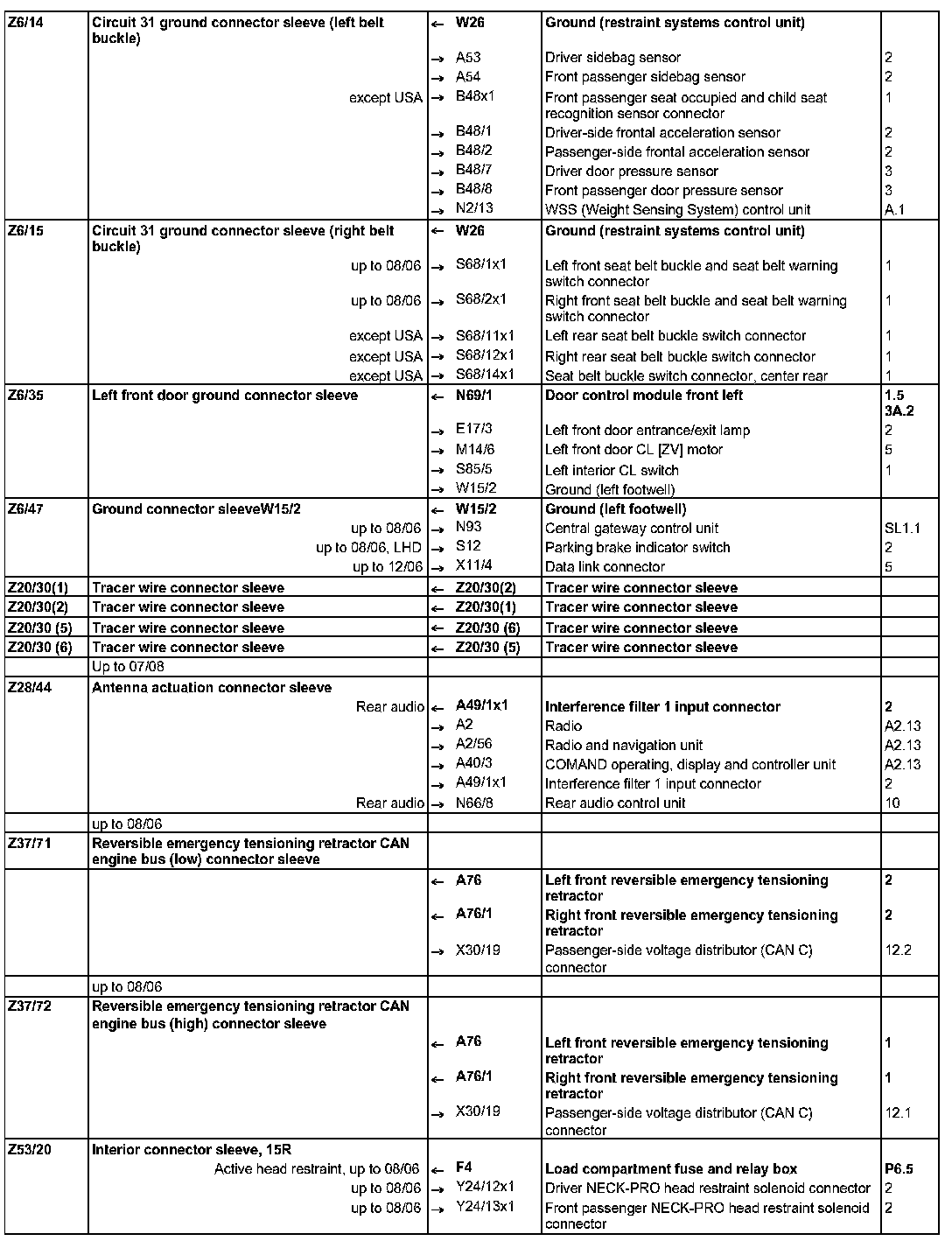

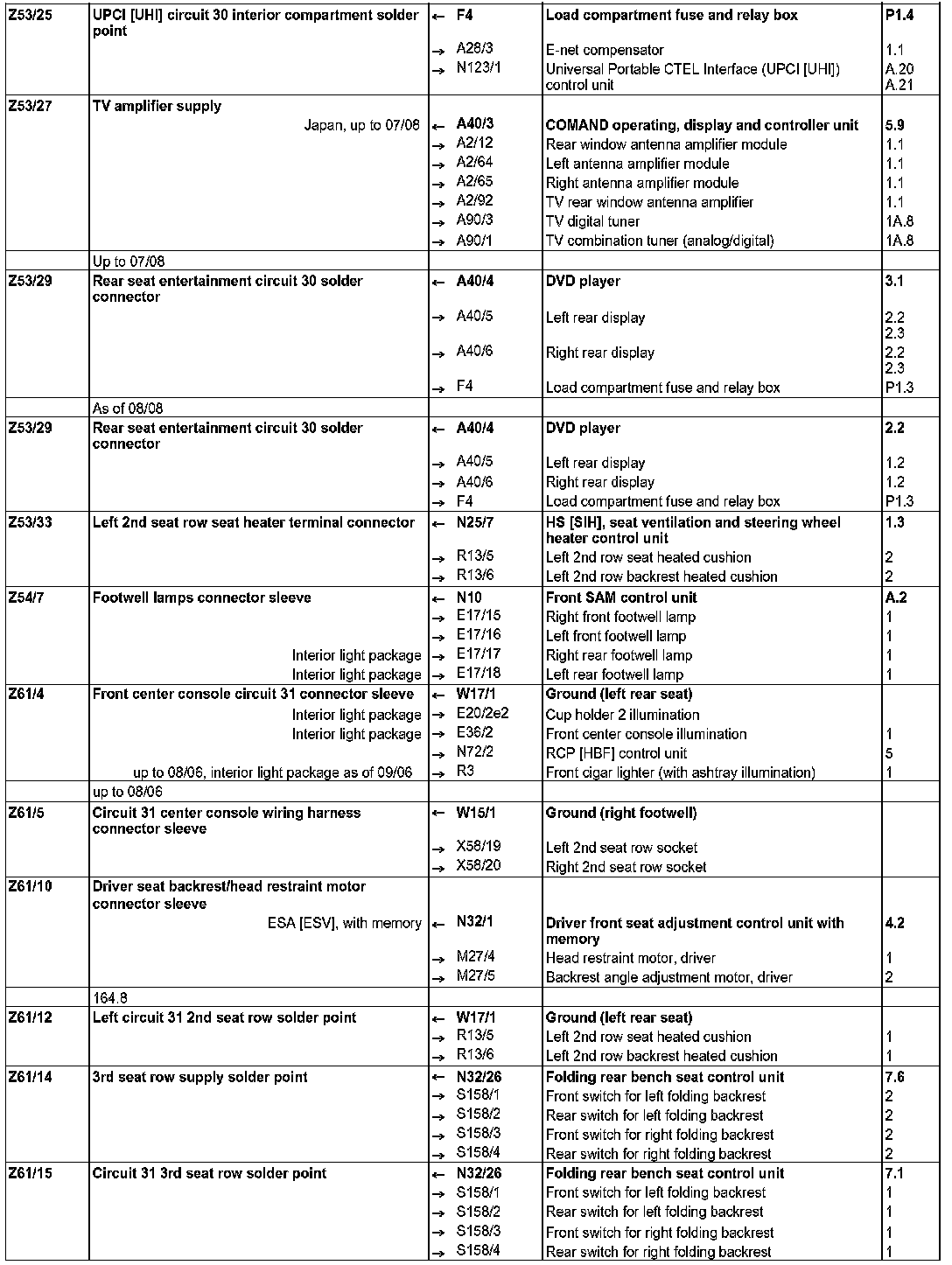

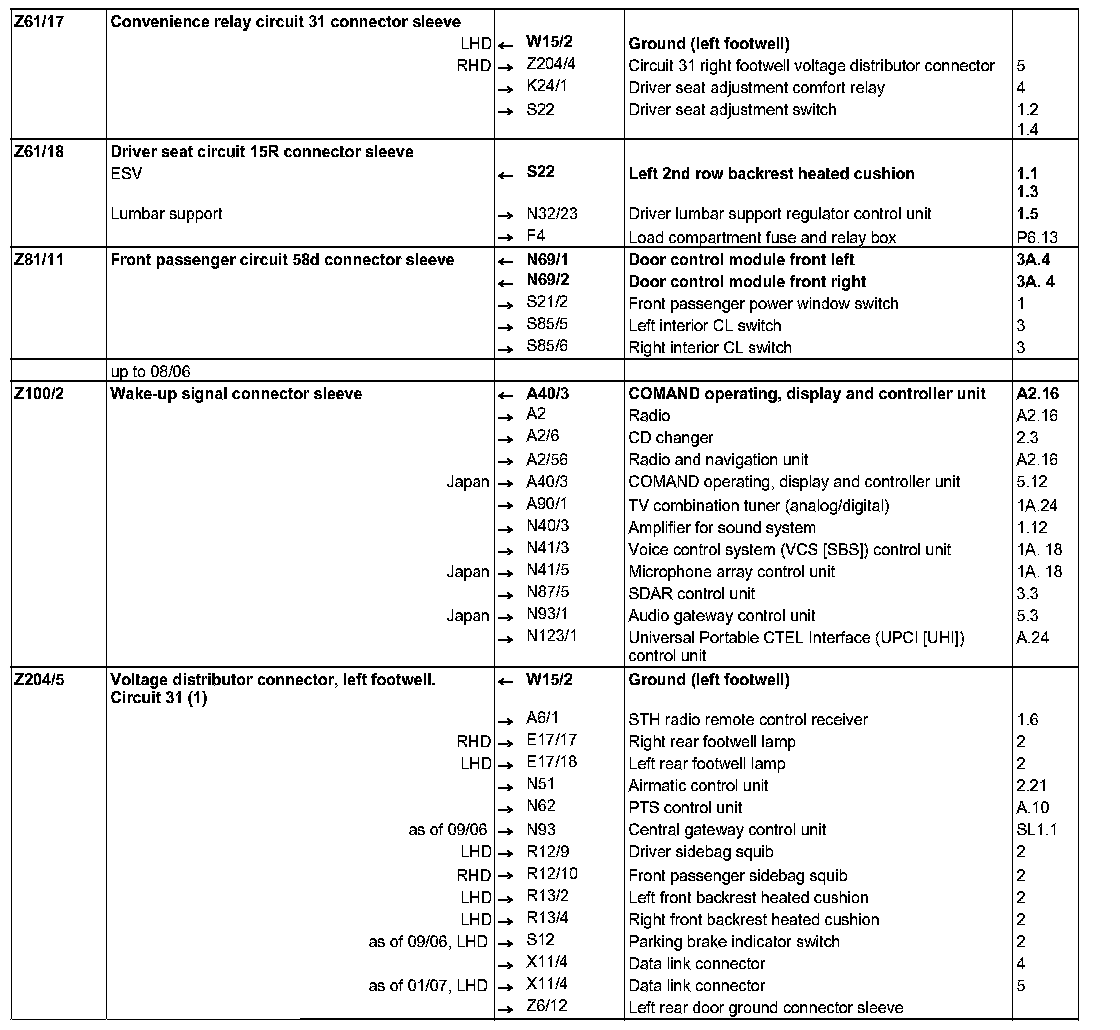

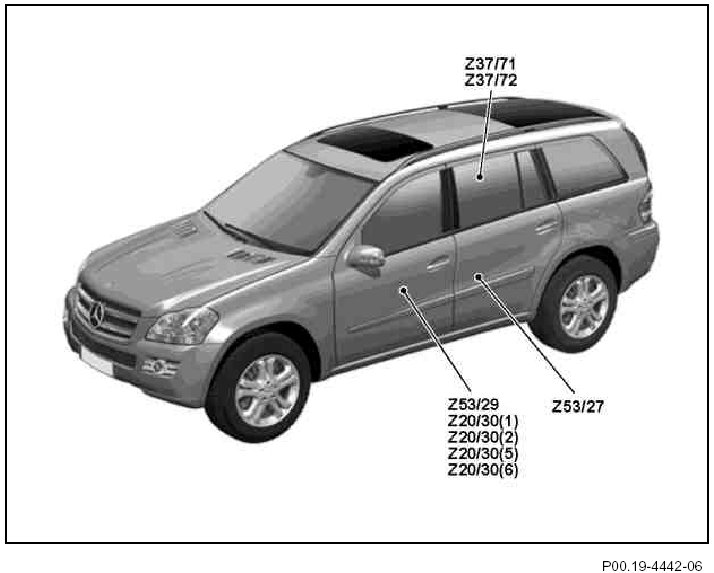

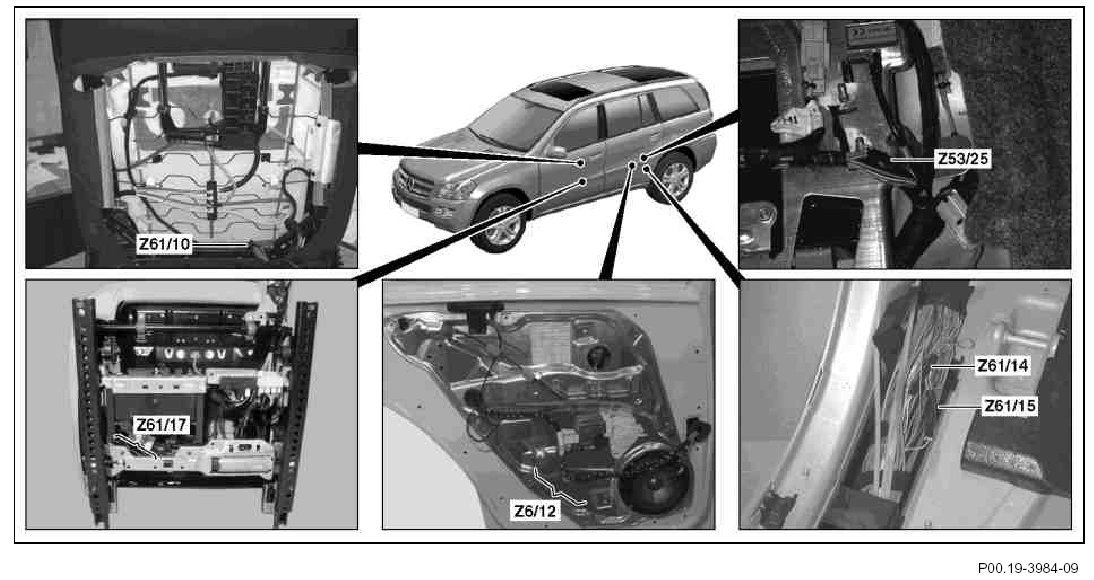

GF00.19-P-3000-04MAA Location and Assignment of Z Connector Sleeves (Cable Connections In Wiring Harness) Interior Left



GF00.19-P-3000-04MAA Location and assignment of Z connector sleeves (cable connections in wiring harness) interior left
