GF00.19-P-3000-07MAA Location and Assignment of Z Connector Sleeves (Connectors and Wiring Harness) - Trunk Right



GF00.19-P-3000-07MAA Location And Assignment Of Z Connector Sleeves (Connectors And Wiring Harness) - Trunk Right

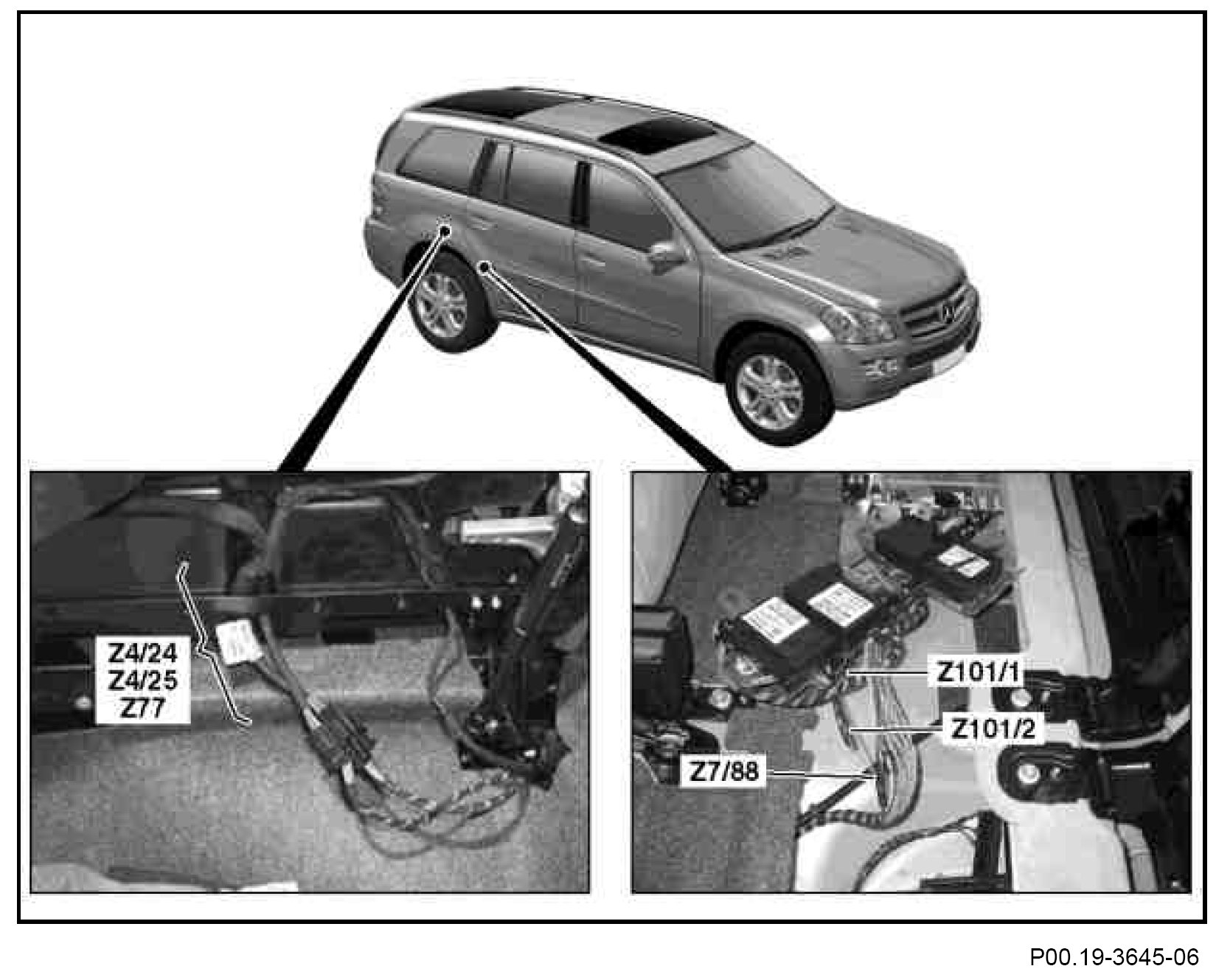

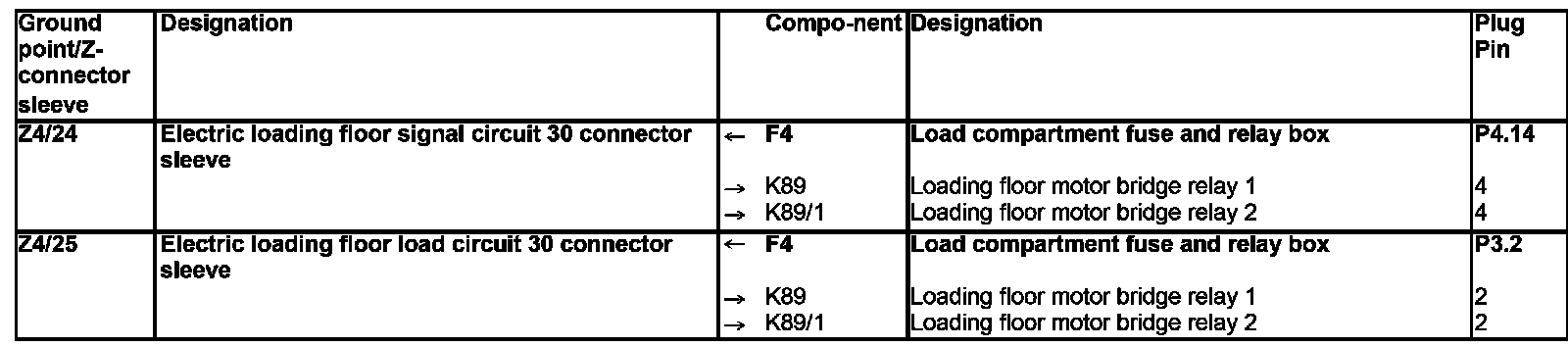

Part 1:

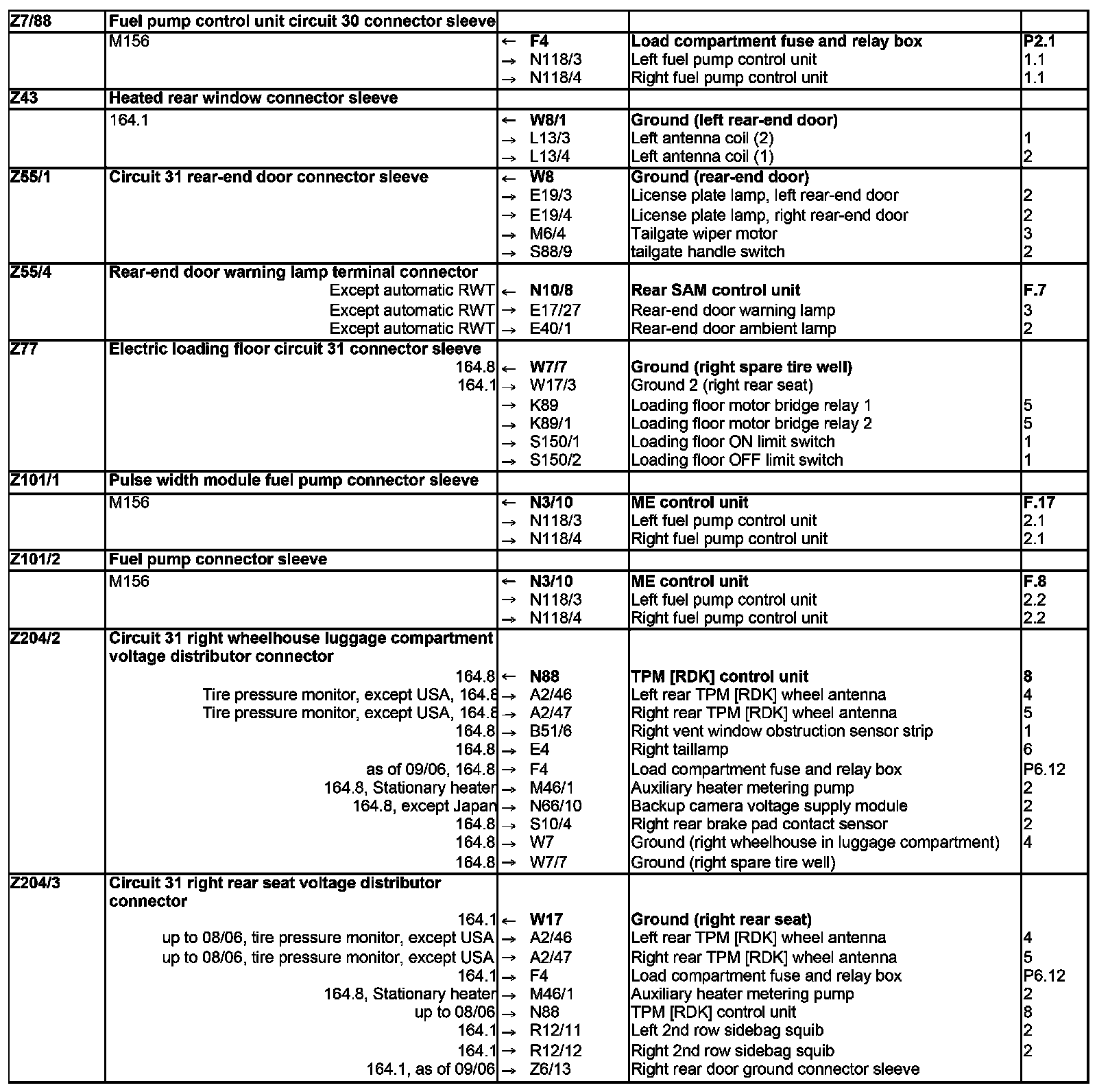

Part 2:
