Body - Power Liftgate Reverses When Closing

Date: April 3, 2006

Order No.: T-B-72.20/58

Supersedes:

Group: 72

SUBJECT:
Model 164.175/186, with Code 890 (Power Liftgate)
Model 251.165/175, with Code 890 (Power Liftgate)
Model Year 2006

Power Liftgate Reverses When Automatically Closing





If you receive customer reports in the above model vehicles of the Power Liftgate reversing direction when closing (closes halfway automatically, then opens again), the bolted connection of the gas-operated strut bracket on the right side gas operated strut (Figure 1) will need to be re-torqued to 42 (+/- 2) Nm.

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair.

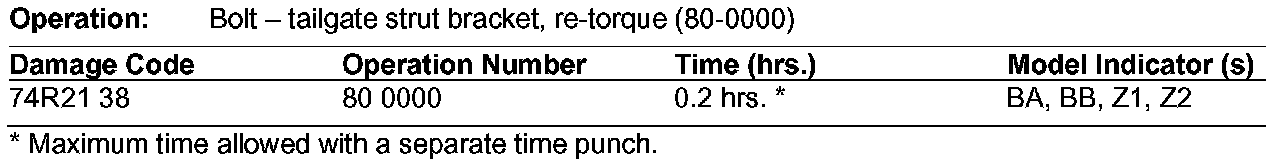

In Case of Warranty, use the table.
