Engine Controls - MIL ON/DTC P1089 Stored

Date: June 21, 2006

Order No.: T-B-07.00/58c

Supersedes: T-B-07.00/58b dated March 8, 2006

Group: 07

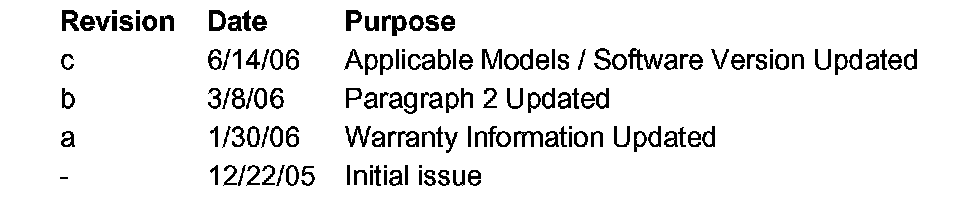

Revision History

SUBJECT:
Model 164.186/871

Model 251.165

Check Engine Light / Engine Control Module Software Update

If you receive customer reports in the above model vehicles with check engine light activated and Diagnostic Code P1089 (fuel minor leak). Perform leak tests as per guidelines in SDS.

If no leak is found, update engine control module software with DAS version 05/06 (or later DAS Release).

Note:
After the software flash, perform SCN coding. Refer to Star TekInfo Document S-B-07.61/38h dated April 27, 2006 or S-B-58.001/44a dated February 4, 2006 for procedure.

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair.





In Case of Warranty
