Entertainment System - No Headphone Audio/Won't Power Up

Date: October 30, 2008

Order No.: T-B-82.60/478a

Supersedes: T-B-82.60/478 dated Nov. 8, 2005

Group: 82





Revision History

SUBJECT:
Model 164.175/186

Model Year 2006, Equipped with Rear Seat Entertainment System (RSES)

No Audio Detected from Wireless Headphones, Display Will Not Power ON, Wavy or Flickering White Lines Through The LCD Display

If you receive customer reports in the above model vehicles of the Rear Seat Entertainment System having the below conditions, the LCD Display must be replaced. For replacement instructions, refer to STAR TekInfo installation bulletin T-I-82.60/440 dated April 5, 2005.

- No audio detected when using the wireless headphones after checking the batteries and adjusting the volume with the remote control.

- LCD display will not power ON and the screen remains black, wavy or flickering lines on the display.

- Display intermittently remaining ON even after switching the system OFF.

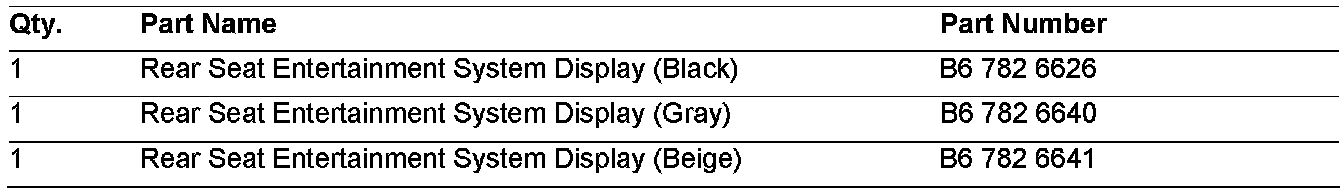

Parts Information

NOTE:

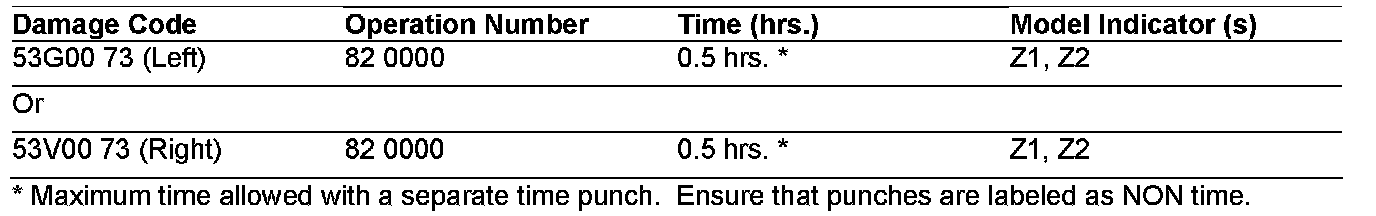

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on October 30, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.





In Case of Warranty

Operation: Rear screen, replace (82-0000)
