Interior - Front Seat Heaters Inoperative

Date: August 29, 2006

Order No.: T-B-91.30/103a

Supersedes: T-B-91.30/103 dated Feb. 28, 2006

Group: 54

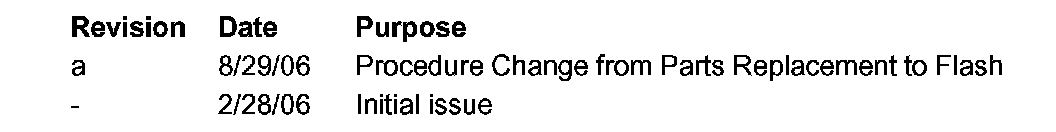

Revision History

SUBJECT:
Model 164.175/186

Model Year 2006

Driver and Passenger Front Heated Seats Nonfunctional

If you receive customer reports in the above model vehicles of both driver and passenger front heated seats not functioning, the Front Signal Acquisition and Actuation Module (SAM) may need to be flashed. The Front SAM control unit may lose variant coding for heated seats. Follow the procedure below to remedy.

1. Using STAR Diagnosis, navigate to the following menu: Control Units --> Body --> SAM-F --> Control Unit Adaptations --> Control Module Programming

2. Flash the control unit with the latest software according to the instruction prompts on the STAR Diagnosis screen.

Note:
Flash software is available as of STAR Diagnosis version 06/06.

Note:
This repair procedure corrects the condition outlined in DTB T-B-67.39/21 dated August 29, 2006. DTB T-B-91.30/103a and T-B-67.39/21 cannot be claimed together or subsequently.
