Suspension - Rear End Creaking/Grunting Noise On Bumps

Date: June 8, 2006

Order No.: T-B-32.20/39

Supersedes:

Group: 32

SUBJECT:

Model 164.175/186, Up to VIN A050000 without Airmatic Suspension (Code 489)

Creaking / Grunting Noise From Area of Rear Axle When Driving Over Road

Undulations

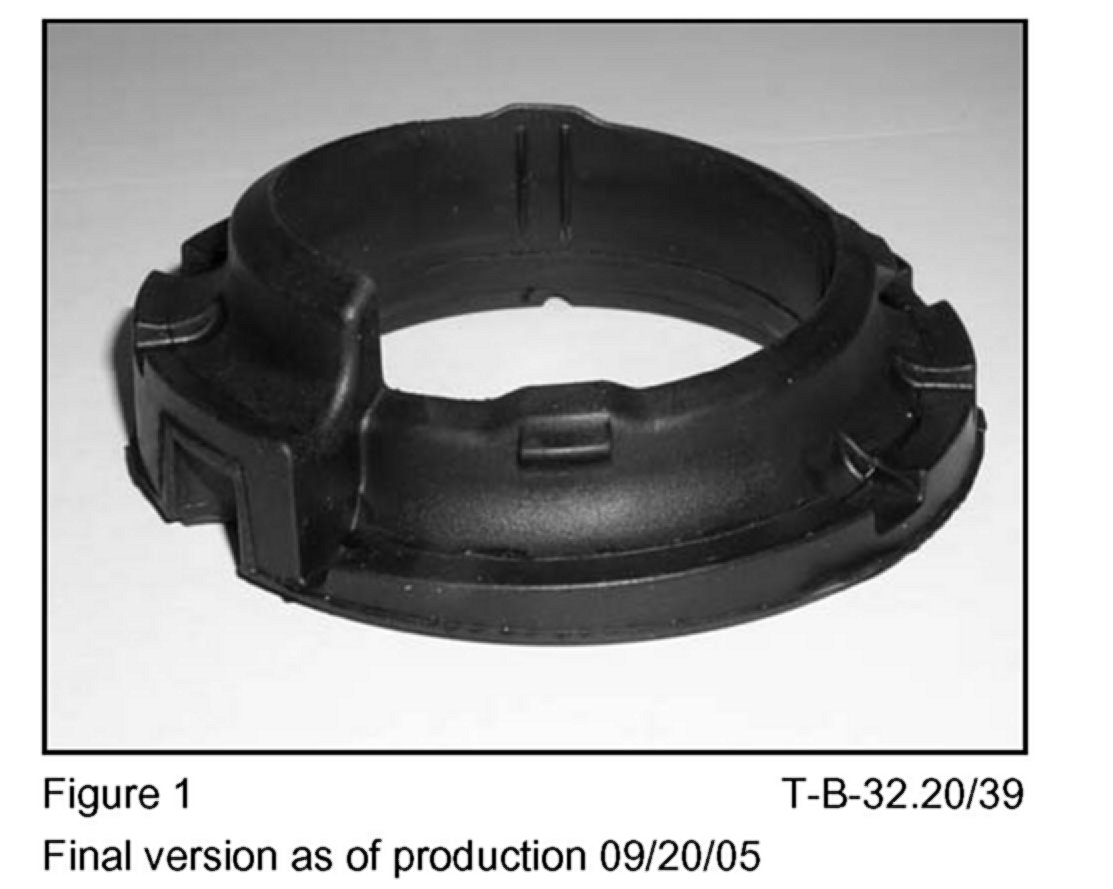

If you receive customer reports in the above model vehicles of a creaking / grunting noise from the rear axle area when driving over road undulations, replace the rear upper spring seat(s) with a revised part (Figure 1). Reference WIS document AR32.20-P-0230GZ.








Note:

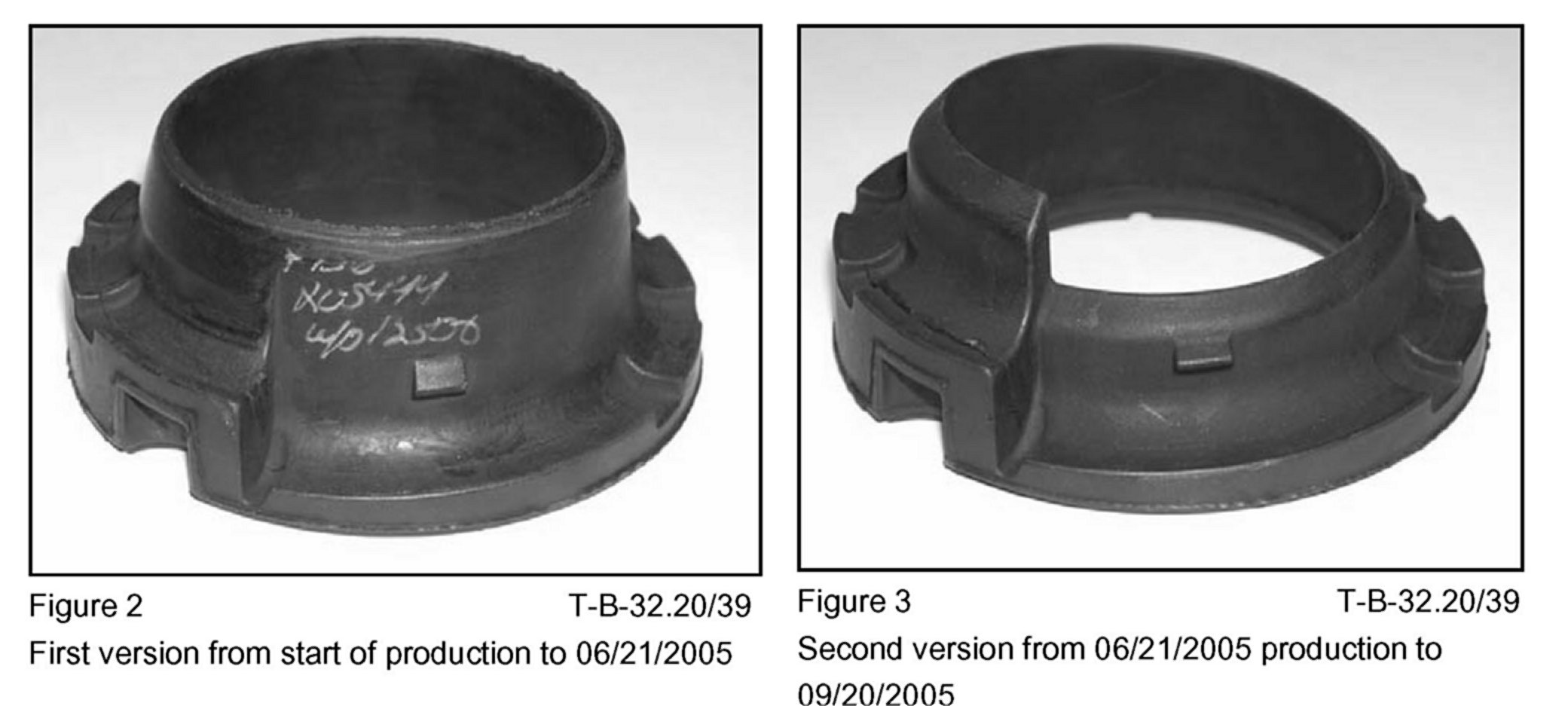

The revised part uses the same part number as the original spring seat. Use the images below (Figure 1, 2 and 3) to correctly identify the revised version.

Note:
The noise is the result of the coil spring's 2nd coil contacting the upper spring seat. The noise can be reproduced by rocking the vehicle at the rear axle.





Parts Information

Note:

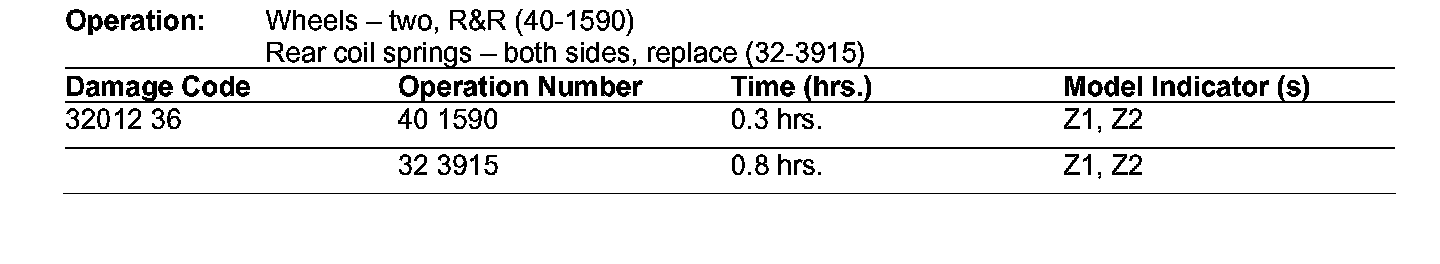

The following allowable labor operations should be used when submitting a warranty claim for this repair





In Case of Warranty
