GF00.19-P-3000-01MAF Location and Assignment of Z Connector Sleeves (Cable Conn In Wiring Harness) - Engine Compartment

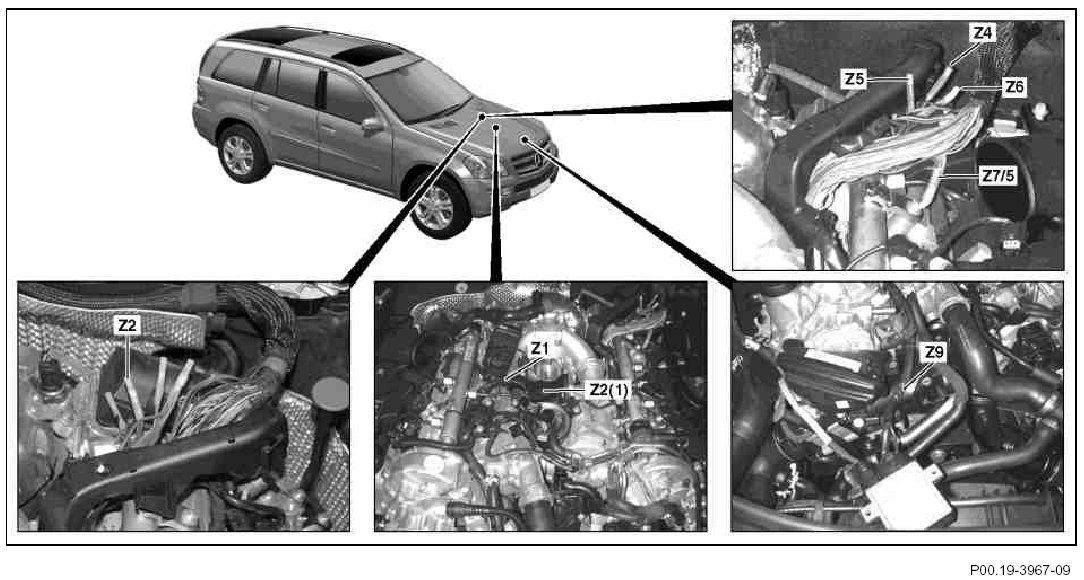

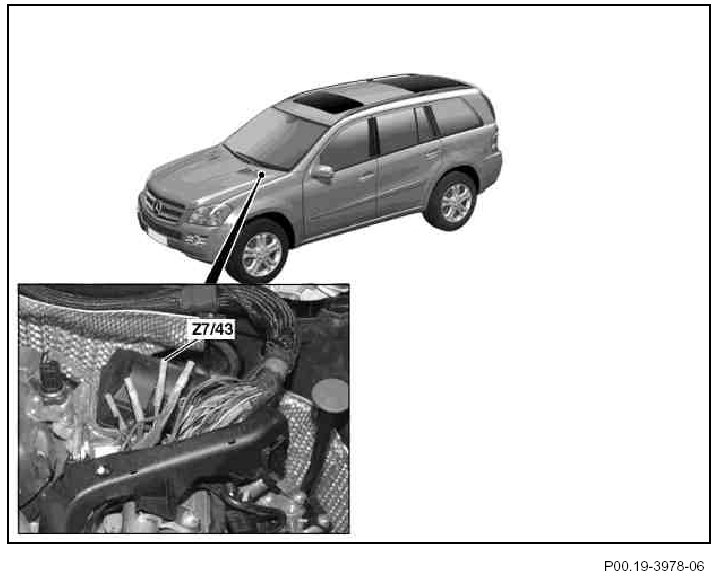

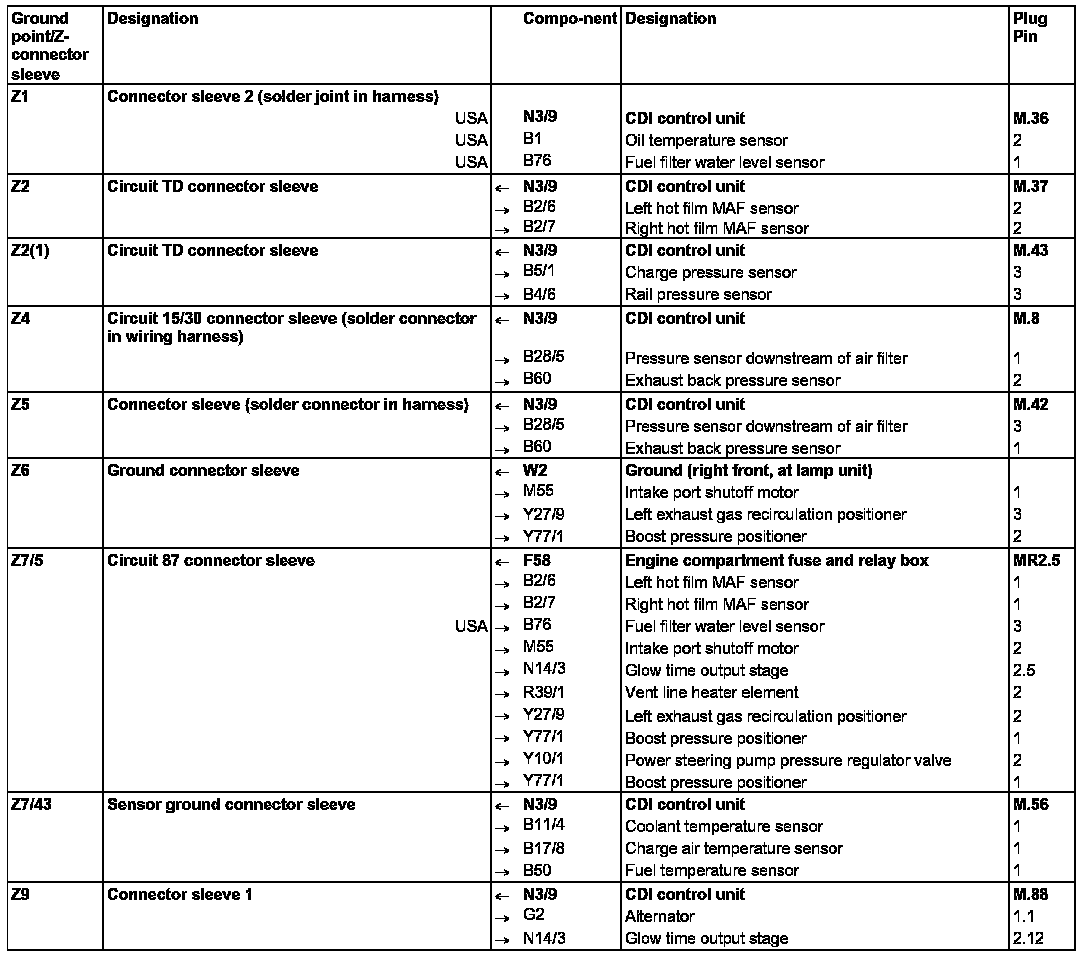

GF00.19-P-3000-01MAF Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left
- 164 w/642
