GF00.19-P-3000-20MAA Location and Assignment of Z Connector Sleeves (Connectors In Wiring Harness) - Front Bumper

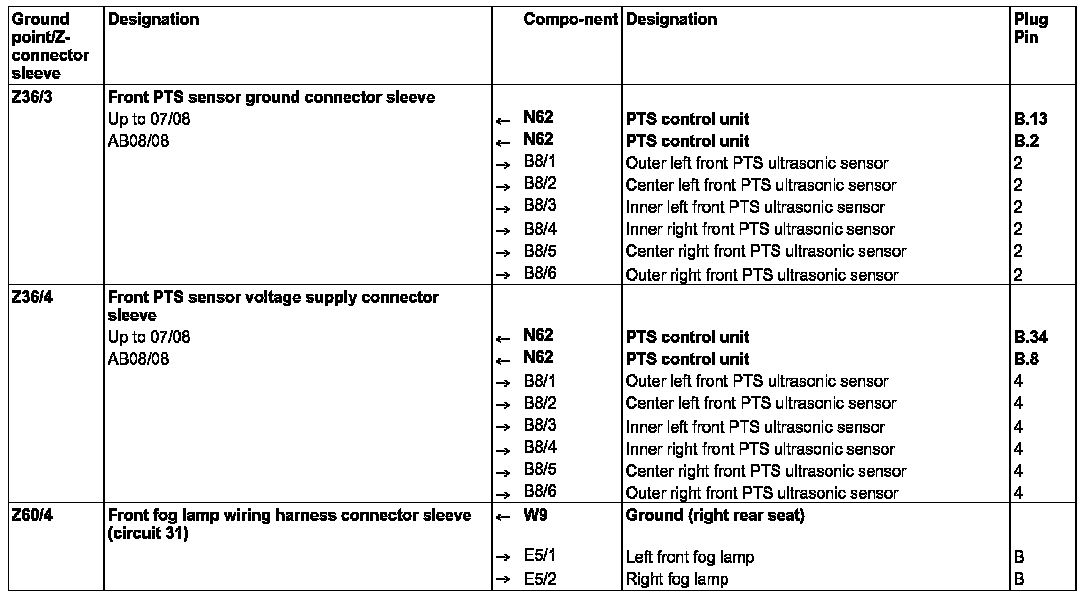

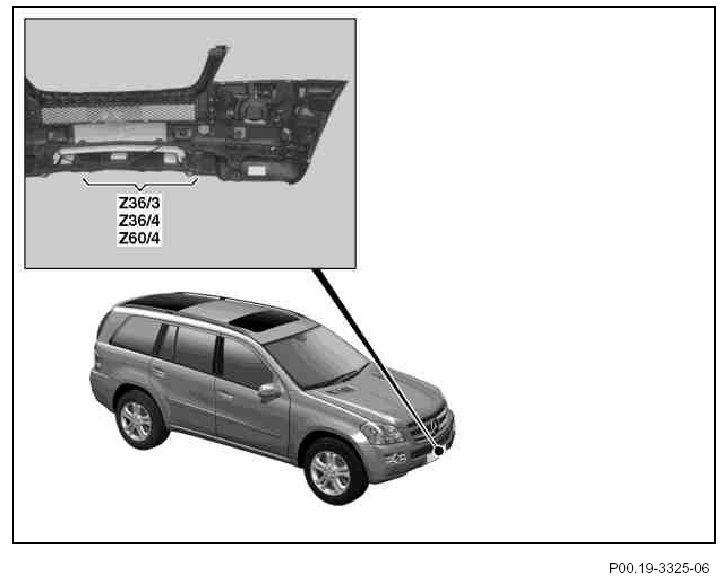

GF00.19-P-3000-20MAA Location and assignment of Z connector sleeves (connectors in wiring harness) - front bumper
