Home >> Mercedes Benz Truck >> 2007 >> ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940) >> Repair and Diagnosis >> Diagrams >> Grounds >> GF00.19-P-2000-02MAA Location and Assignment of Ground Points, Engine Compartment, Right

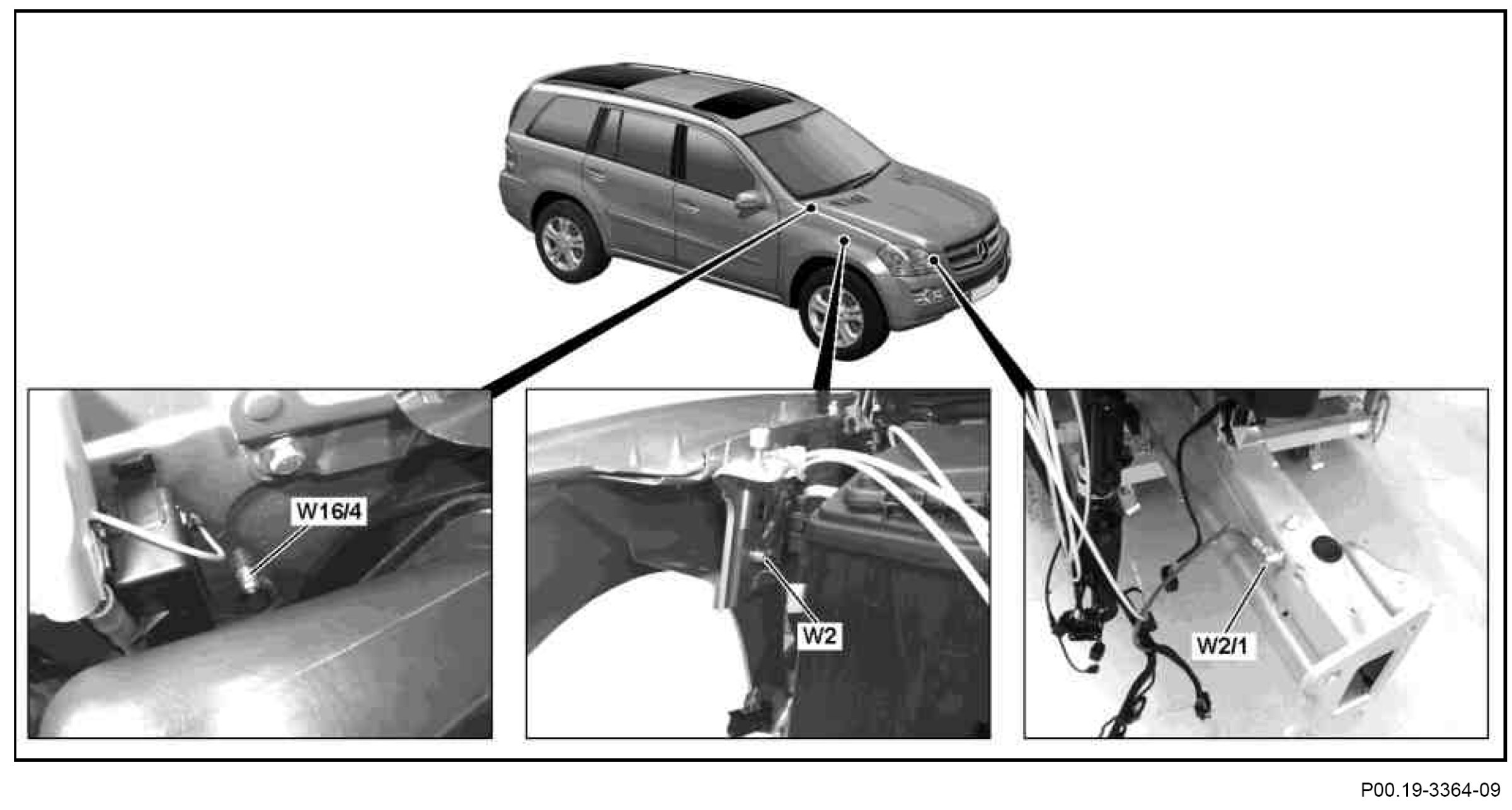

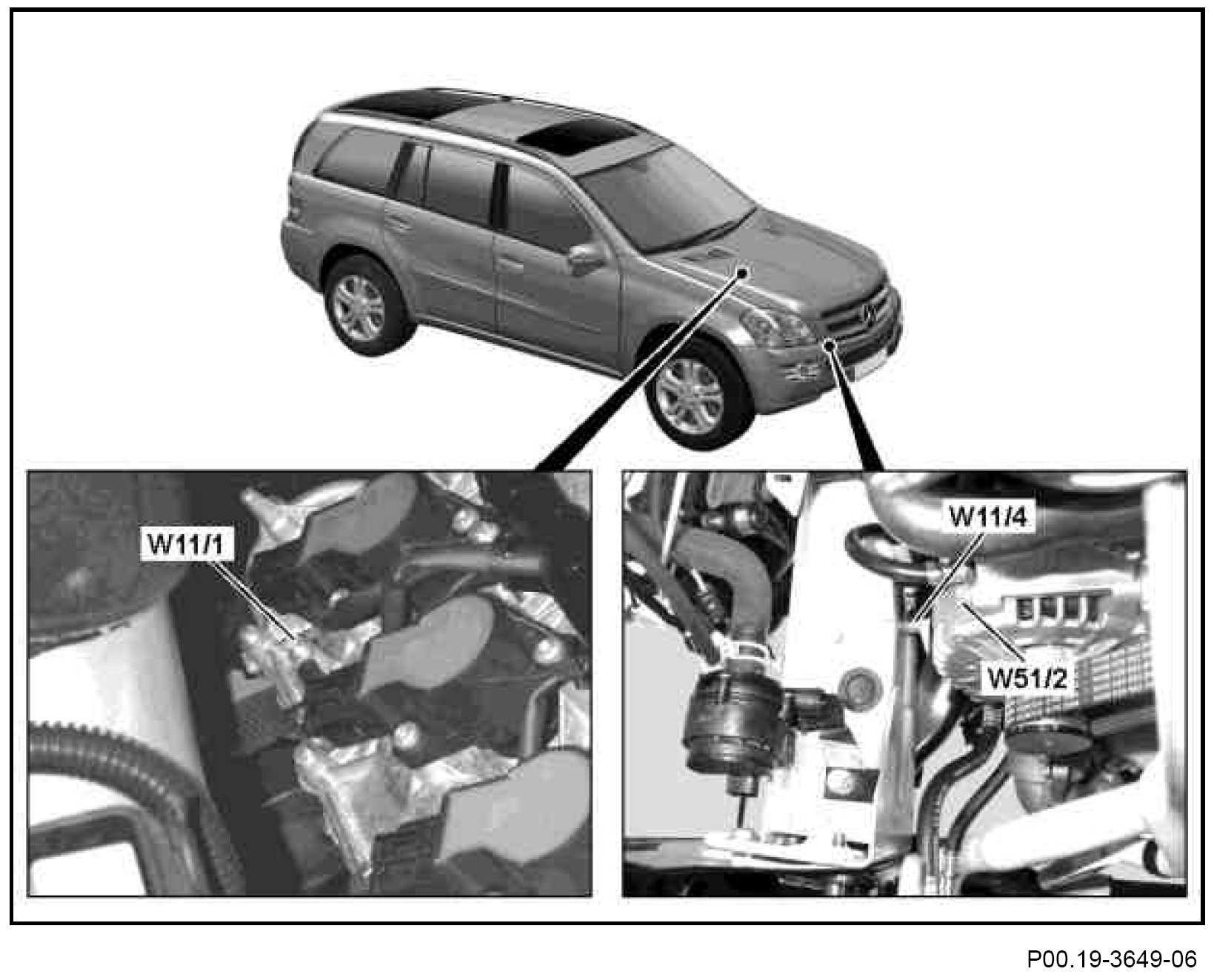

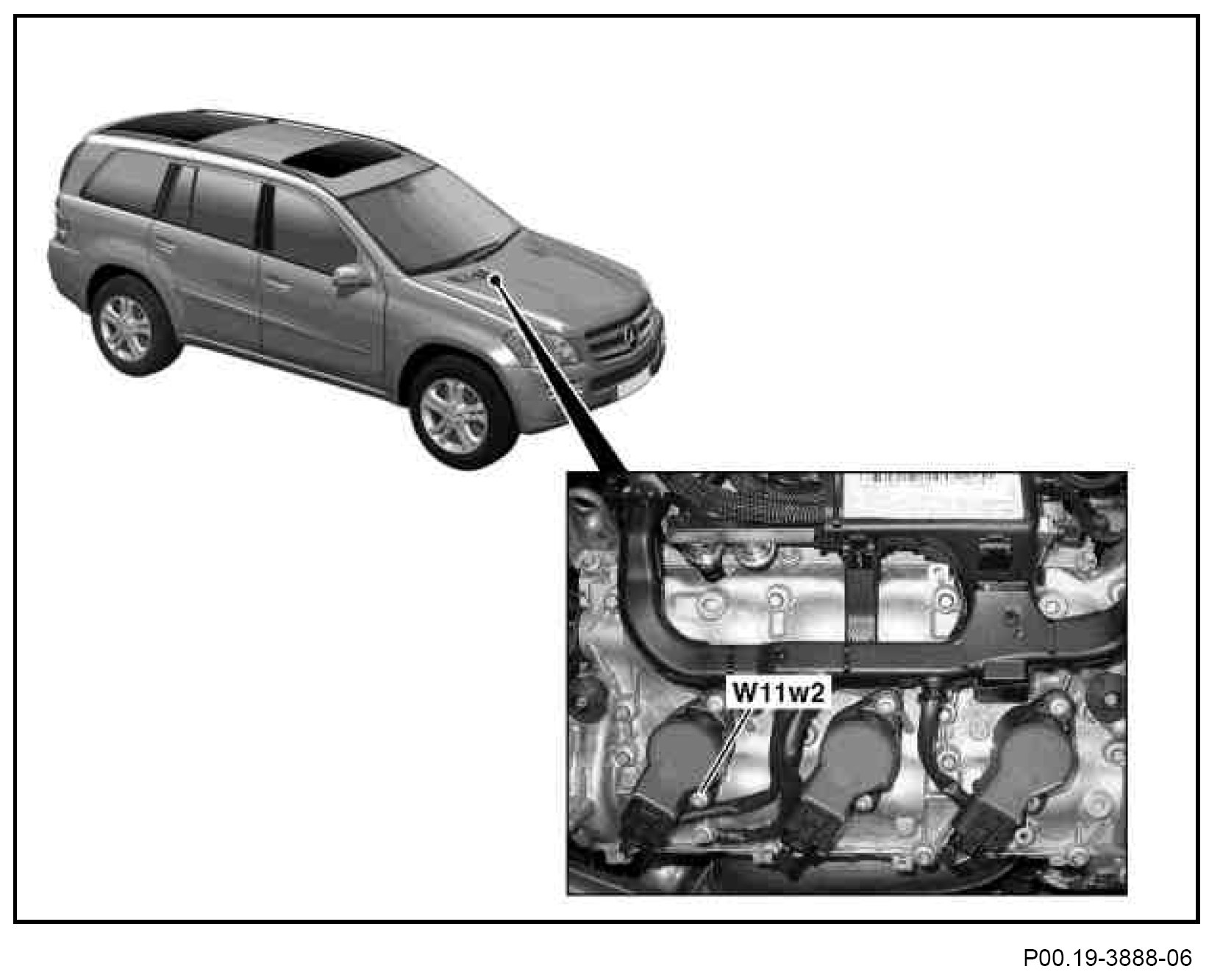

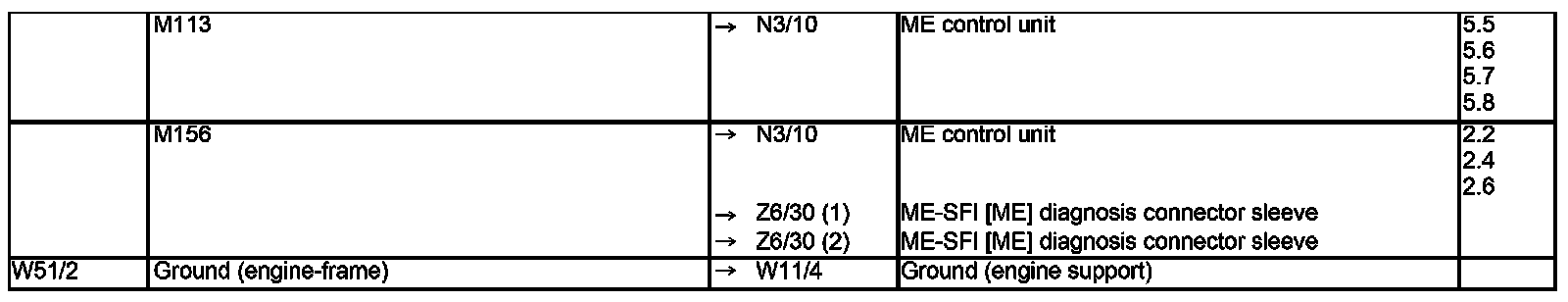

GF00.19-P-2000-02MAA Location and Assignment of Ground Points, Engine Compartment, Right



GF00.19-P-2000-02MAA Location And Assignment Of Ground Points, Engine Compartment, Right














Part 1:





Part 2:
