GF91.60-P-2006GZ Head-on Collision, Function

GF91.60-P-2006GZ Head-on Collision, Function
- with CODE (494) USA version

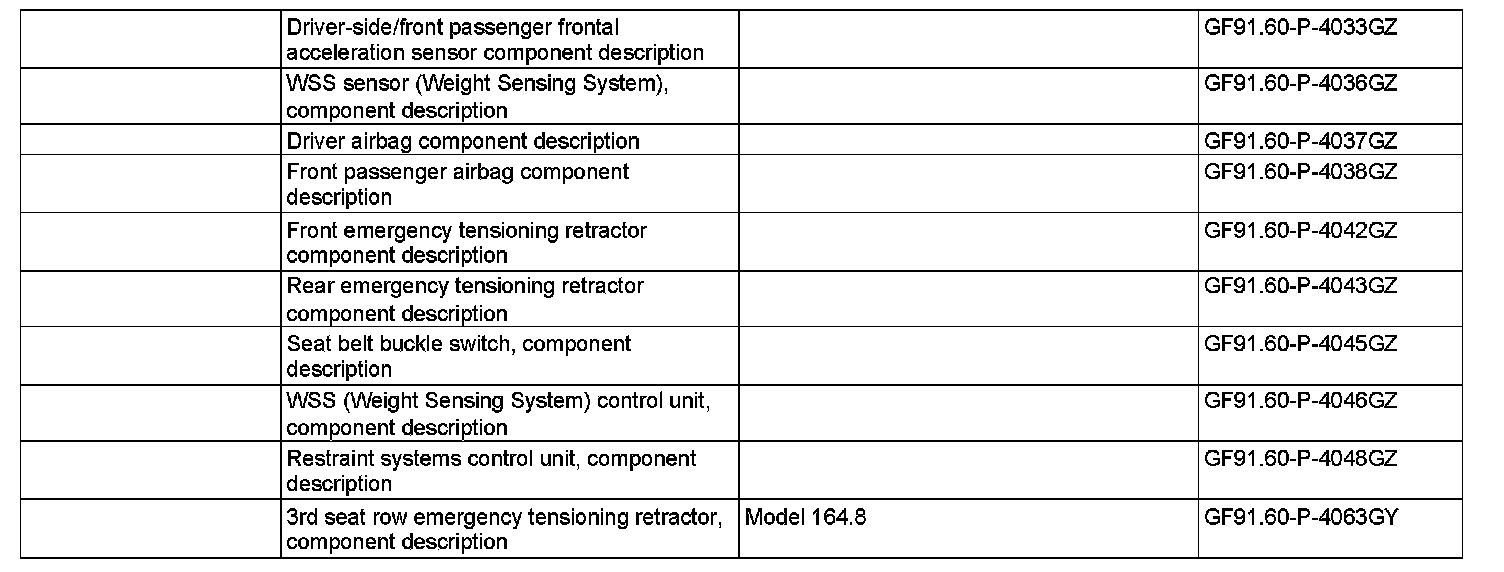

Component Identification:

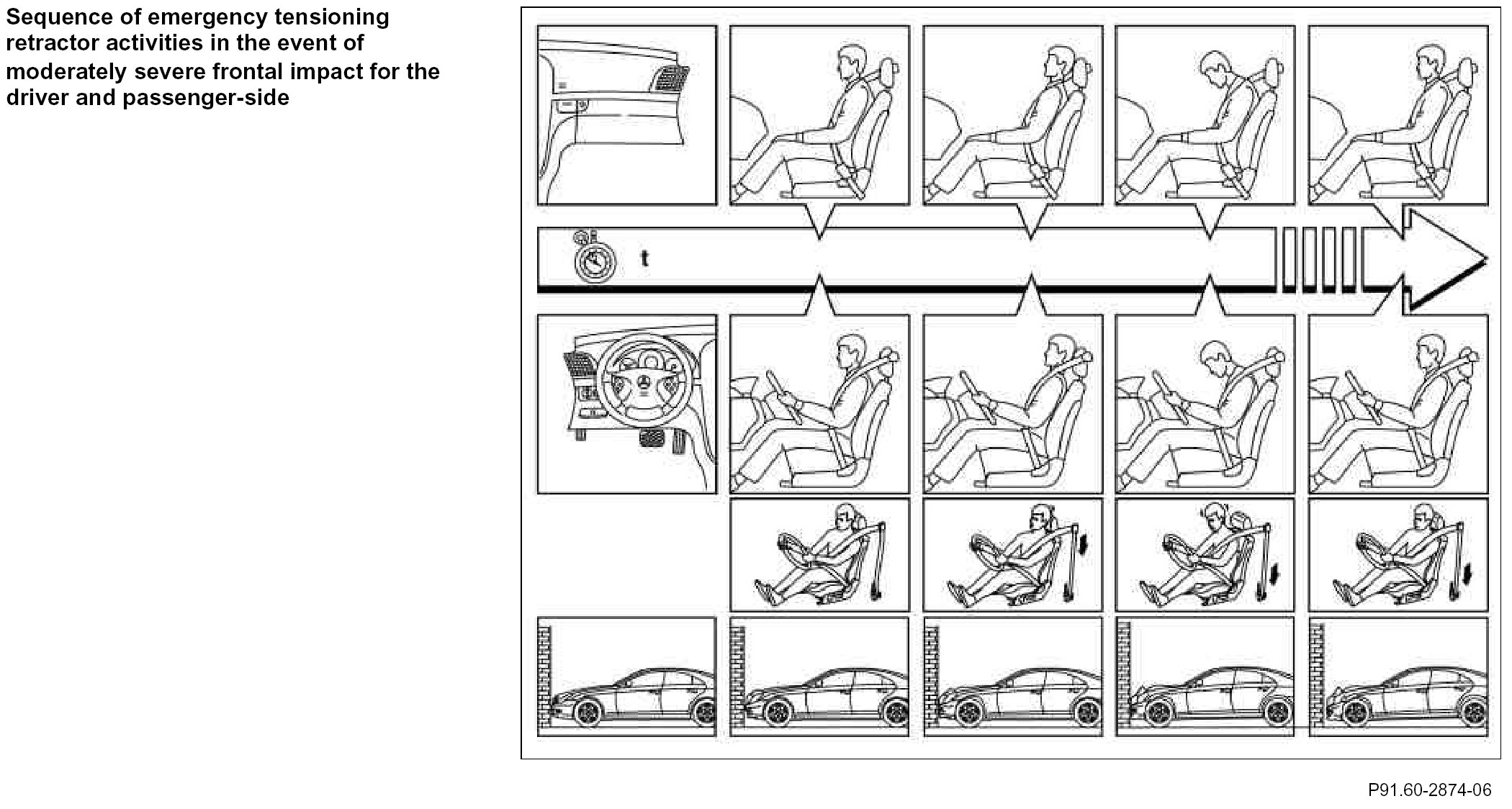

Moderately severe frontal impact (1st triggering stage)

If the 1st triggering threshold is exceeded in the event of a moderately severe head-on collision, only the seat belts are activated.

The restraint systems control unit (N2/7) registers medium deceleration via the driver-side frontal acceleration sensor (B48/1) or the passenger-side frontal acceleration sensor (B48/2) and activates the following squibs:
^ Driver ETR [GUS] squib (R12/1)
^ Passenger ETR squib (R12/2)
^ Left 2nd row ETR [GUS] squib (R12/6)
^ Right 2nd row ETR [GUS] squib (R12/7)
^ Left 3rd seat row emergency tensioning retractor squibs (R12/35)
^ Right 3rd seat row emergency tensioning retractor squibs (R12/36)

WSS (Weight Sensing System)
The seat occupied and child seat recognition is determined by the weight sensing system (WSS)

A weight measurement of the WSS (Weight Sensing System) control unit (N2/13) in the front passenger seat enables a weight class to be determined which is then sent to the restraint systems control unit. The restraint systems control unit uses the weight class to determine whether a suppression, a 1-stage or 2-stage triggering of the front passenger airbag is necessary. If a seat belt on the passenger-side is not engaged in the seat belt buckle, the restraint systems control unit registers this via the front passenger seat belt buckle and seat belt warning switch (S68/2) and does not trigger the front passenger ETR [GUS] squib.

There is no seat belt buckle scan for the left/right seats in the 2nd seat row and in the 3rd seat row; therefore, the left/right 2nd se row emergency tensioning retractor squibs and the left/right 3rd seat row emergency tensioning retractor squibs are always triggered.

Severe head-on collision (2nd and 3rd triggering threshold)
If in the event of a severe frontal impact, the 2nd triggering stage is exceeded, then the seat belts and front airbags are activated. The restraint systems control unit registers severe deceleration via the driver or passenger-side frontal acceleration sensor and activates the following squibs:
^ Driver ETR [GUS] squib and front passenger ETR [GUS] squib
^ Left 2nd row ETR [GUS] squib and right 2nd row ETR [GUS] squib
^ Left/right 3rd row ETR [GUS] squibs
^ Driver airbag squib 1 (R12/13)
^ Passenger airbag squib 1 (R12/4)
^ Driver belt force limiter (R12/27)
^ Front passenger belt force limiter (R12/26)

If in the event of a severe frontal impact, the 3rd triggering stage is exceeded, then the restraint systems control unit activates the following squibs too:
^ Driver airbag squib 2 (R12/14)
^ Passenger airbag squib 2 (R12/5)

WSS (Weight Sensing System)
The seat occupied and child seat recognition is determined by the weight sensing system (WSS). A weight measurement in the front passenger seat enables a weight class to be determined and this is sent to the restraint systems control unit. The restraint systems control unit uses the weight class to determine whether a suppression, a 1-stage or 2-stage triggering of the front passenger airbag is necessary.

A seat belt on the driver or passenger-side that is not engaged in the seat belt buckle, is registered by the restraint systems control unit via the driver seat belt buckle and seat belt warning switch or the front passenger seat belt buckle and seat belt warning switch, whereupon the corresponding driver or passenger-side ETR [GUS squib and the driver or passenger-side driver belt force limiters are not deployed.

There is no seat belt buckle scan for the left/right seats in the 2nd seat row and in the 3rd seat row; therefore, the left/right 2nd seat row emergency tensioning retractor squibs and the left/right 3rd seat row emergency tensioning retractor squibs are always triggered.

In the event of a collision and when the corresponding triggering threshold is exceeded, an additional signal is transmitted to the emergency call system control unit (N123/4) by the restraint systems control unit and an automatic emergency call is completed
