Restraints - SRS Initial Start-up Faults

Date: June 27, 2007

Order No.: T-B-91.60/135

Supercedes:

Group: 91

SUBJECT:
Model 164.122/175/177/186

SRS Initial Start-up Faults

On the above model vehicles, if after replacing an SRS control unit the control unit is unable to be programmed, please back date to STAR Diagnosis version 03/07 to perform the initial start-up as you would normally. Corrections in STAR Diagnosis to rectify this issue are scheduled to be resolved in version 06/07.

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on June 27, 2007. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.

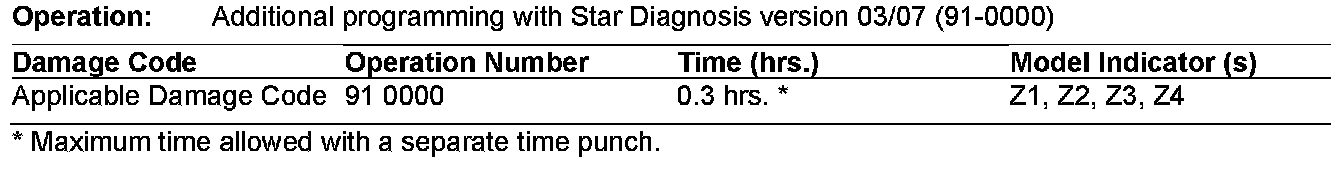

In Case of Warranty, use the table.
