GF82.30-P-3008GZ Wiper Start Suppression Function

GF82.30-P-3008GZ Wiper Start Suppression Function

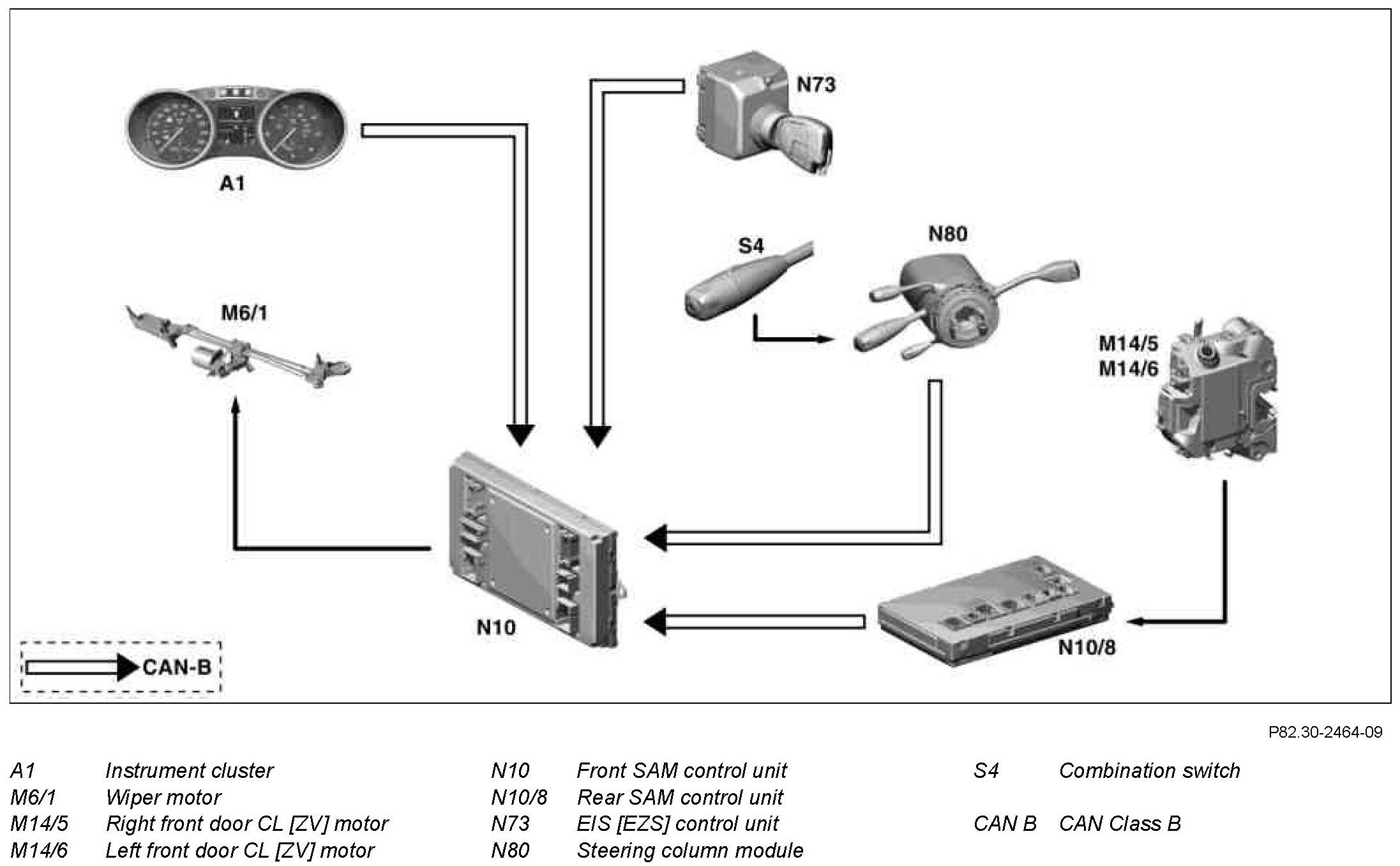

Component Identification:

Function requirements:
^ C. 15R On

Function
Wiper operation is suppressed when:
^ the combination switch is in the intermittent position and
^ the driver or front passenger door is open and
^ speed is less than 3 km/h and
^ the wiper is in the park position.

Opening the driver or front passenger door does not interrupt wiper operation that is currently in progress. The wipers move t the park position.

The wipers resume operation after suppression if:
^ the selector lever position is "D" or "R" and both front doors are closed or
^ the speed is faster than 3 km/h or
^ the combination switch is switched from position "I" to position "0" and back again.
