Function Diagrams

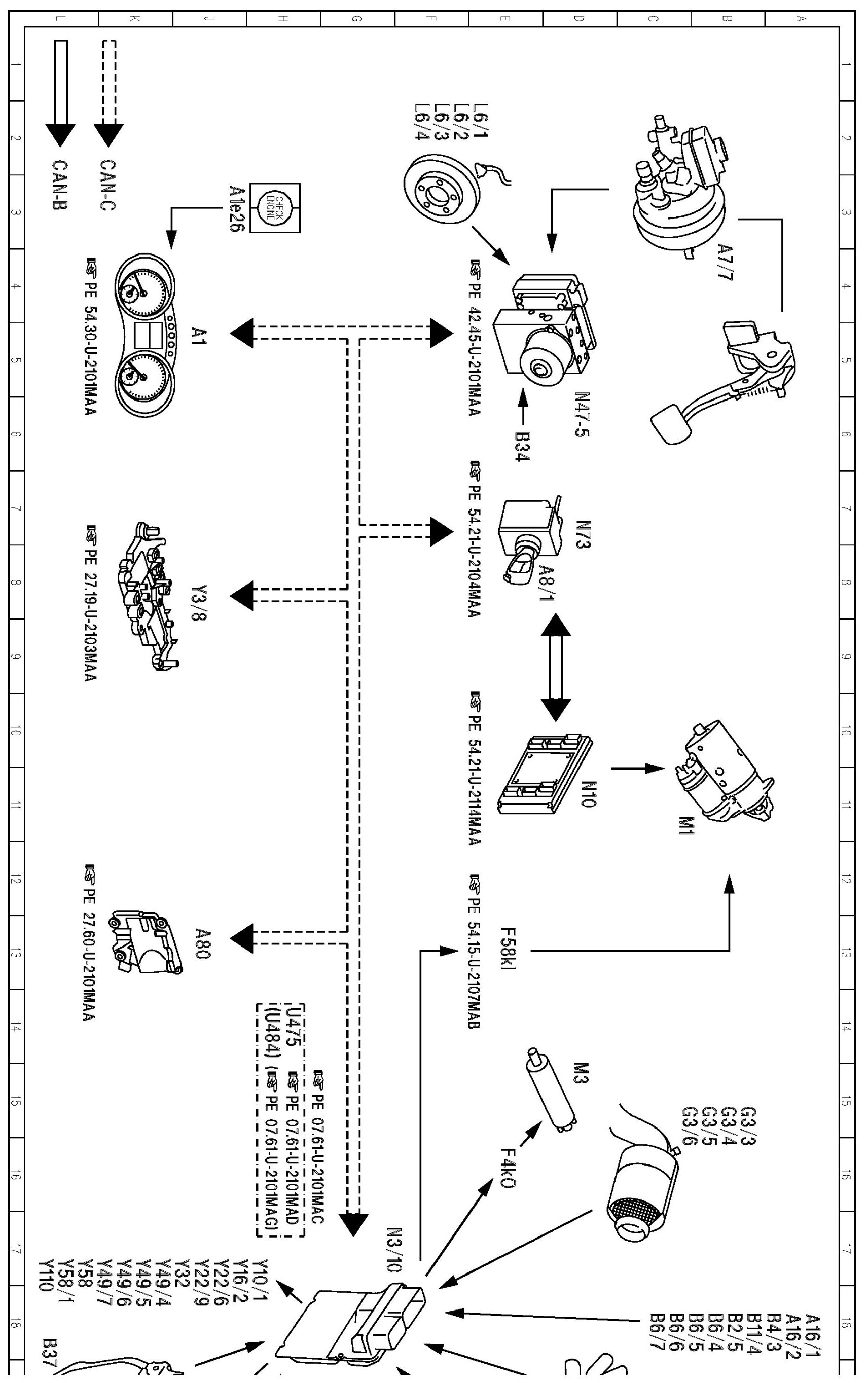

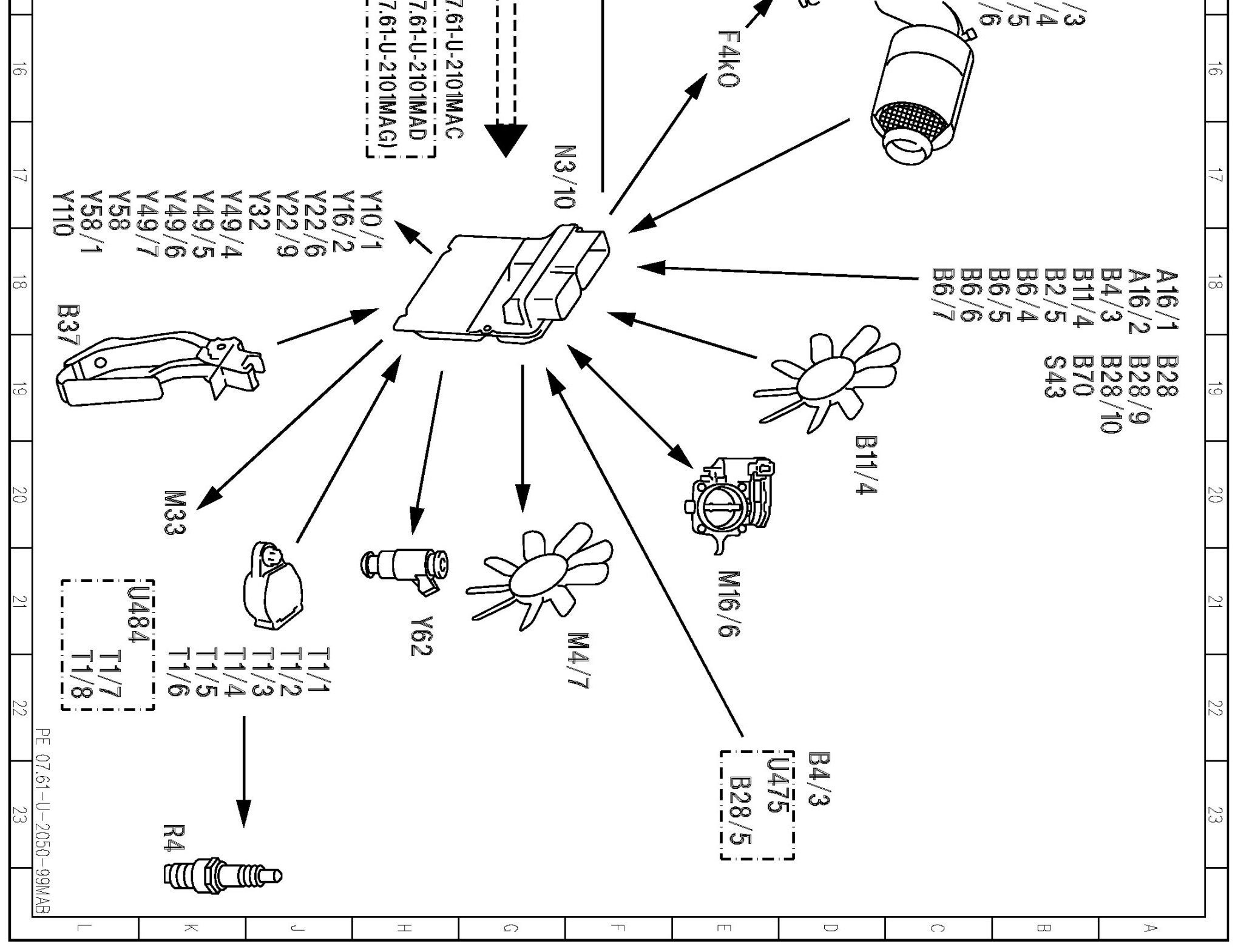

PE07.61-U-2050MAB Function Diagram of Electrical System For ME Engine Control
- as of 07/01/07 up to 08
- ME 9.7


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
