Sound Proofing / Insulation: Service and Repair
AR94.30-P-5300RT Remove/Install Bottom Sections Of Soundproofing

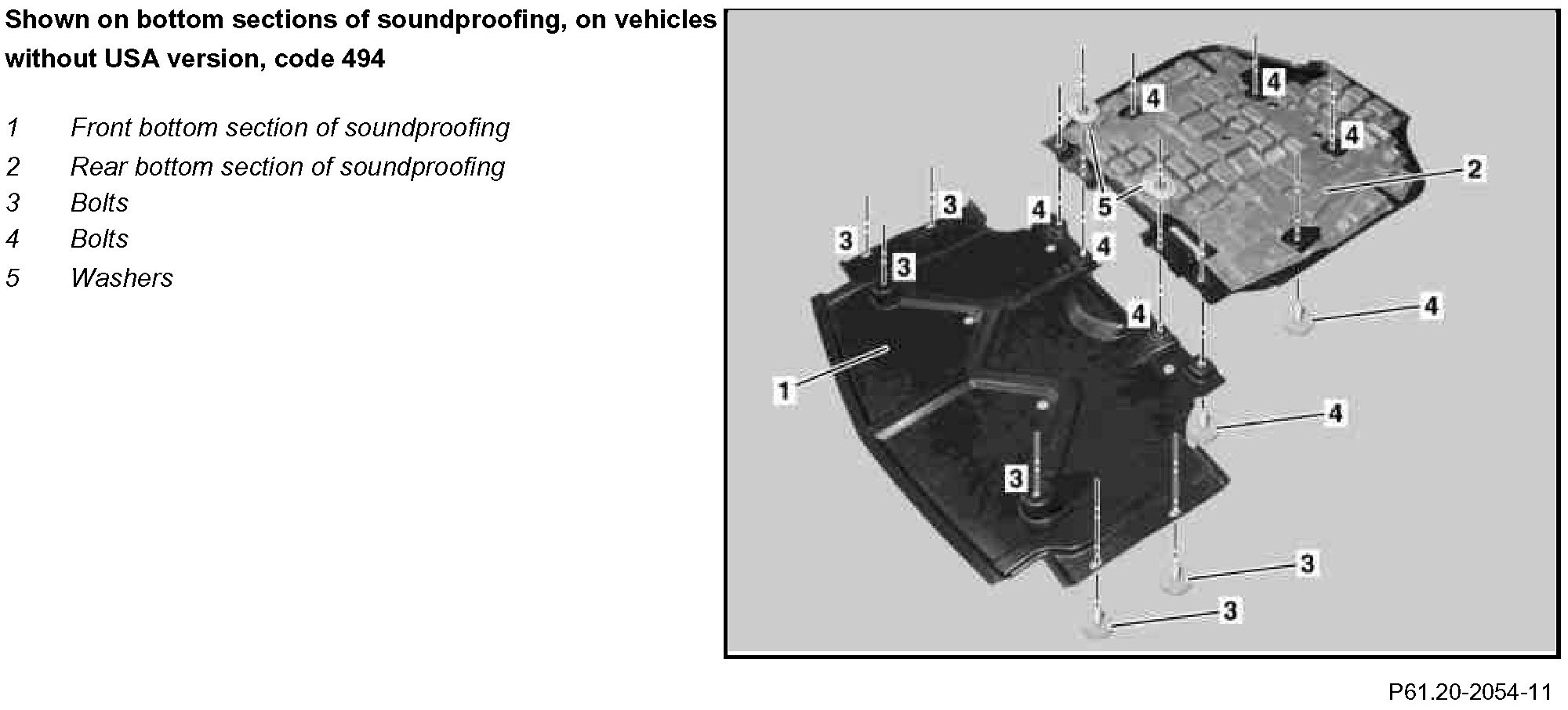

Component Identification:
Component Identification:

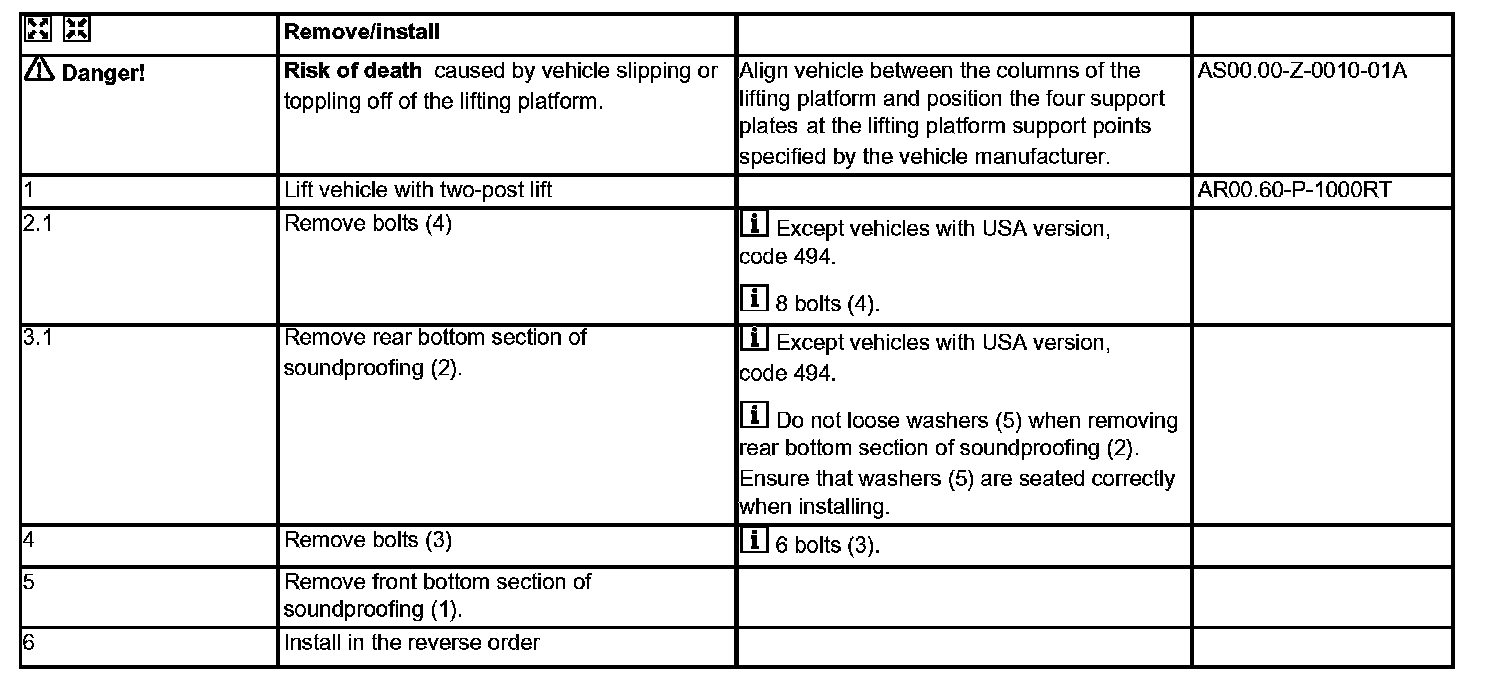

Steps 1 - 6:
