Vacuum Brake Booster Diaphragm Position Sensor: Locations



BAS Diaphragm Travel Sensor

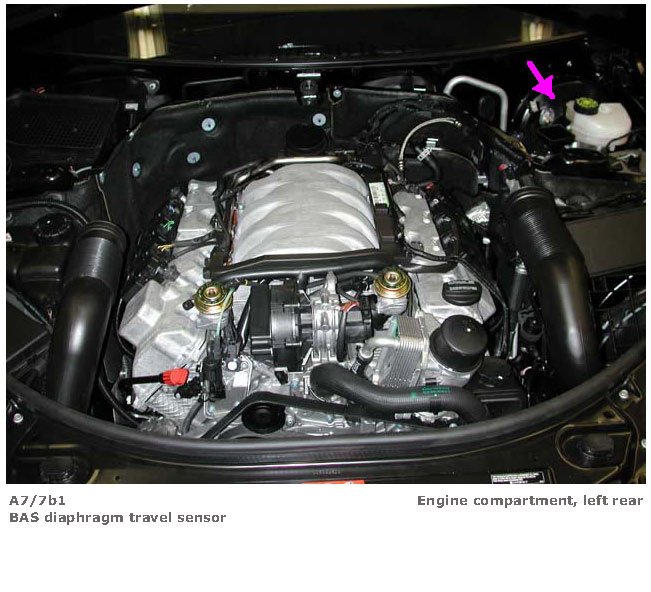

BAS Diaphragm Travel Sensor (View 1):

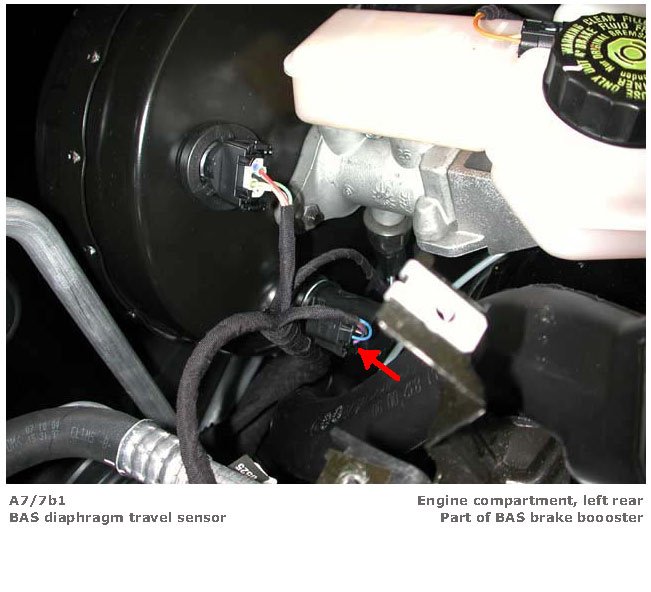

BAS Diaphragm Travel Sensor (View 2):




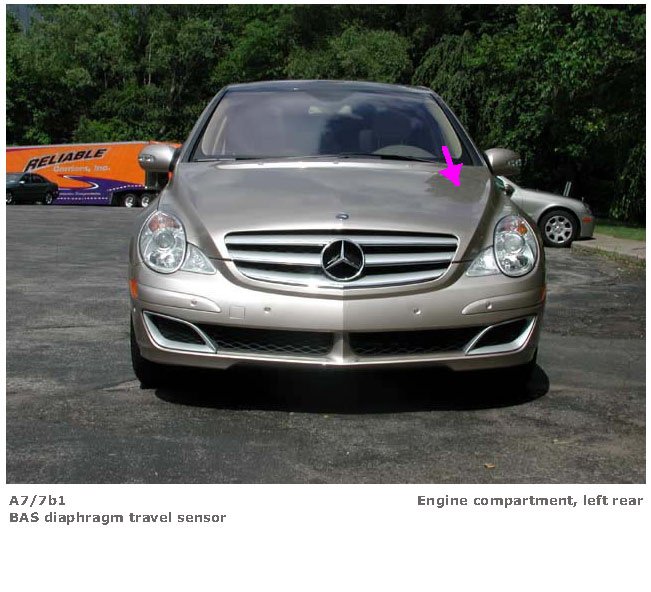

BAS Diaphragm Travel Sensor (View 3):
