GF82.10-P-0003-02RT Exterior Lights, Location of Components
GF82.10-P-0003-02RT Exterior Lights, Location Of Components

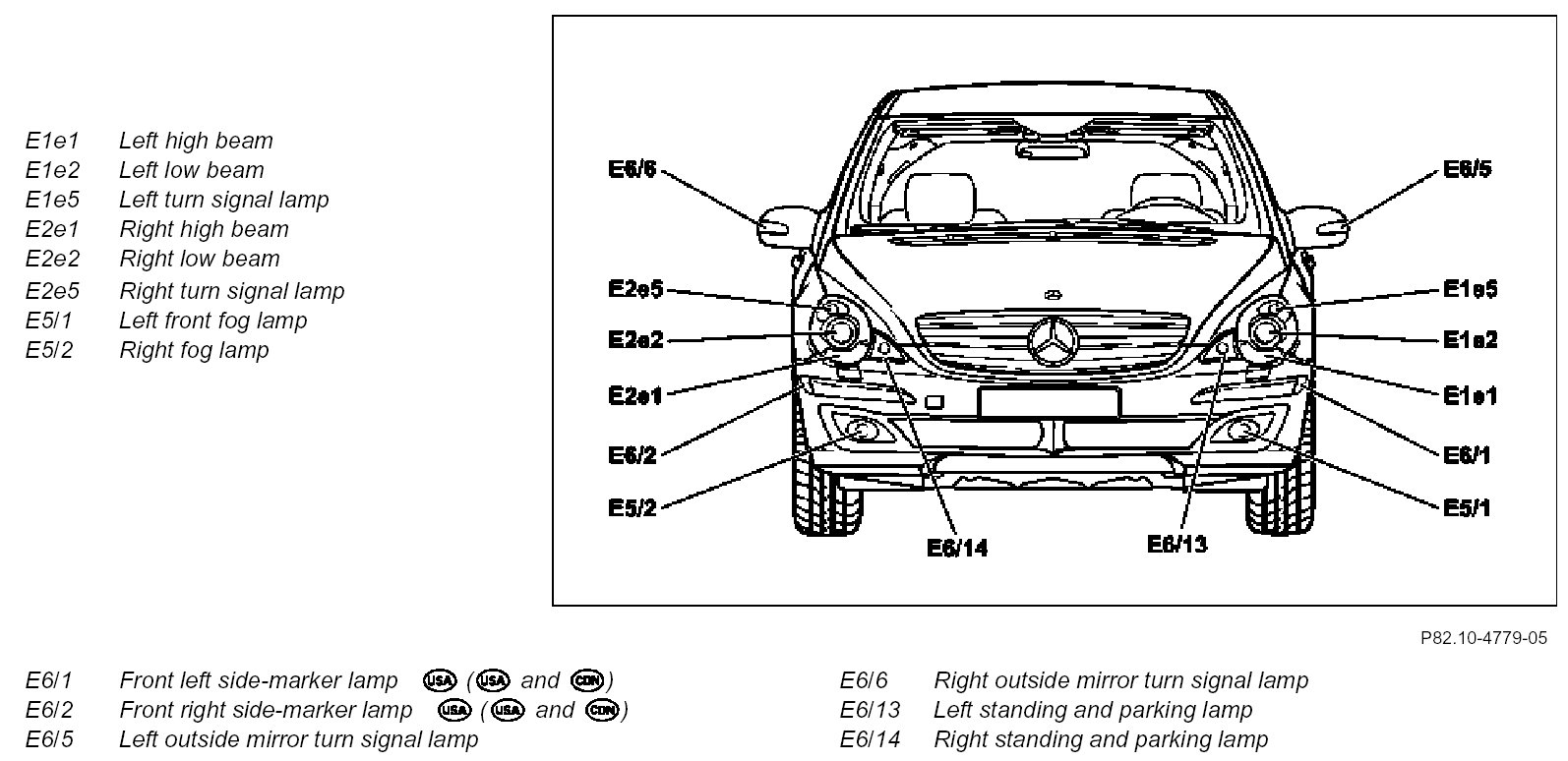

Location of front illumination without code (615) Bi-xenon headlamp unit with integrated curve illumination
Component Identification:

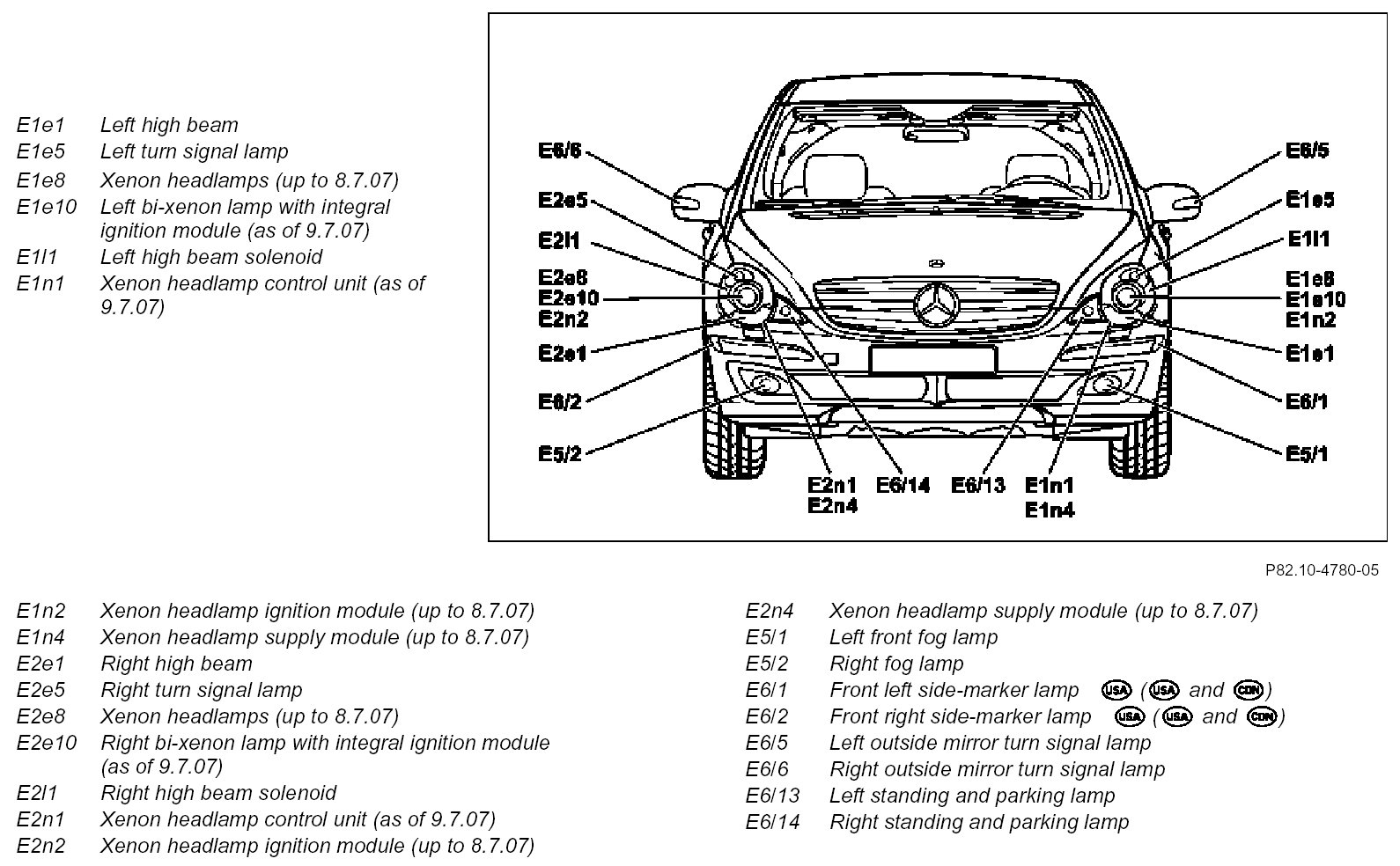

Location of front illumination with code (615) Bi-xenon headlamp unit with integrated curve illumination
Component Identification:

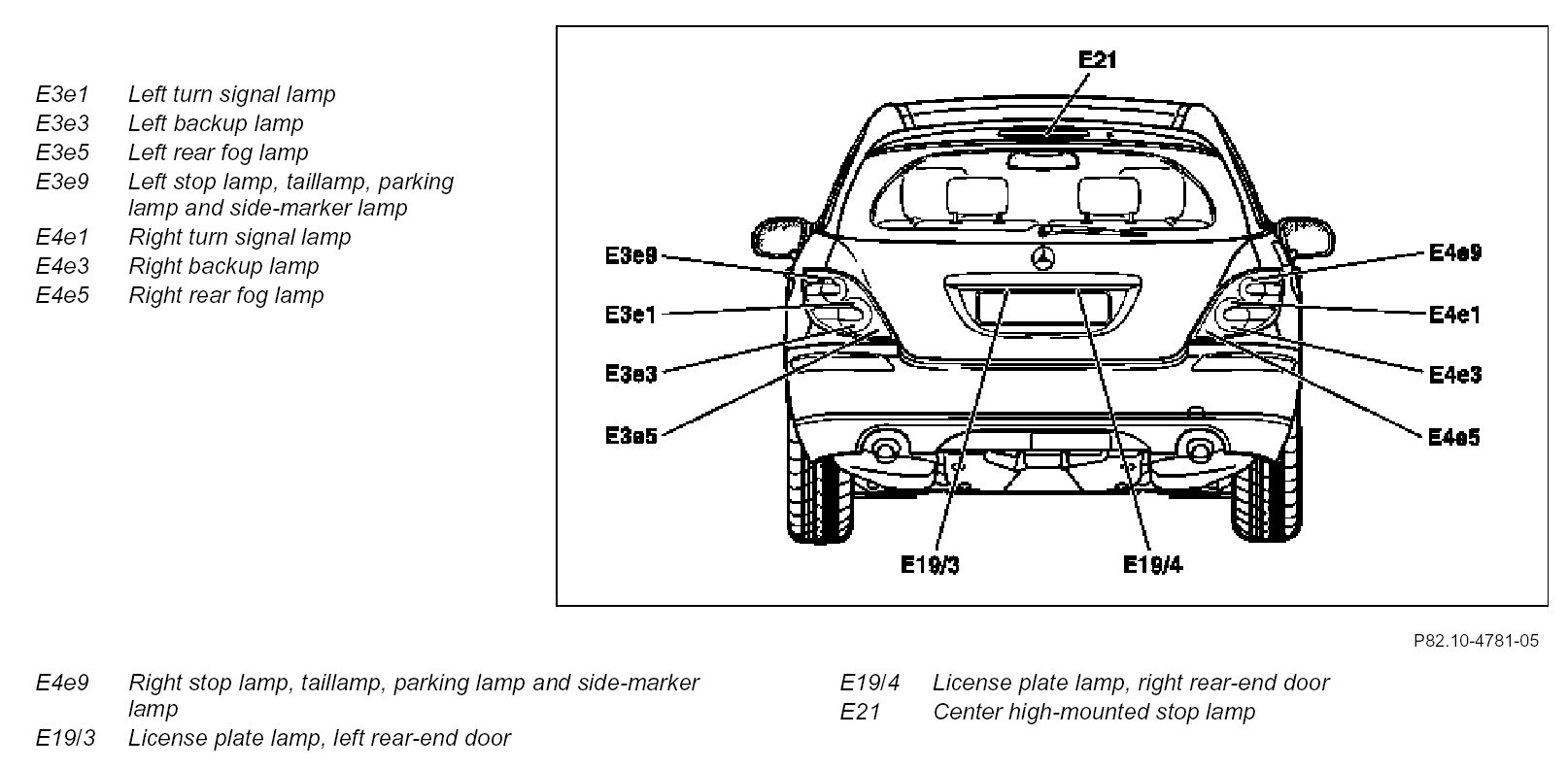

Location of rear lamps
Component Identification:
