Horn: Service and Repair



AR54.35-P-1555RT Remove/Install Fanfare Horns

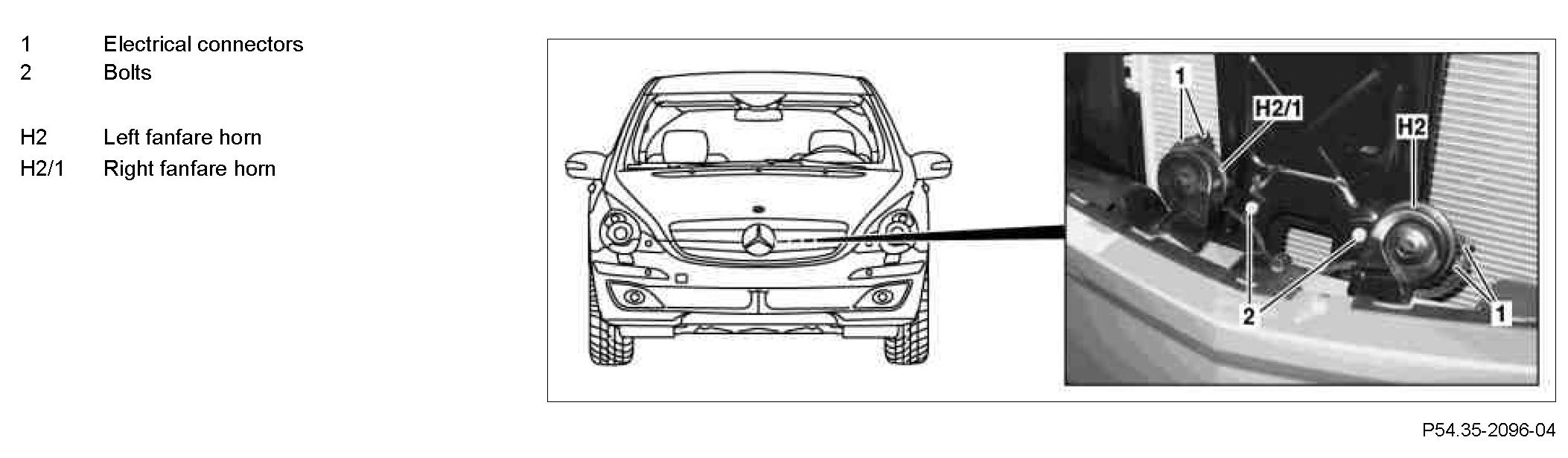

Component Identification:

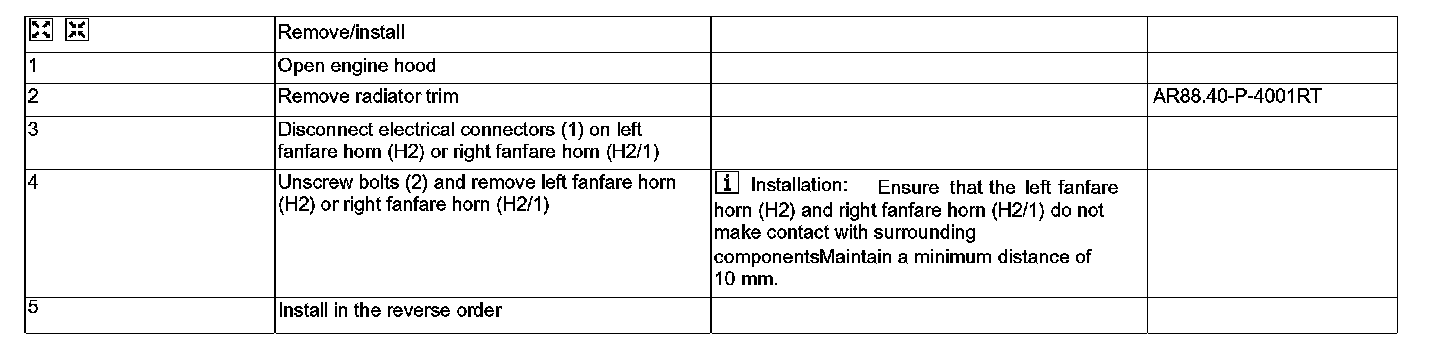

Steps 1 - 5:
