Fuel Delivery and Air Induction: Locations

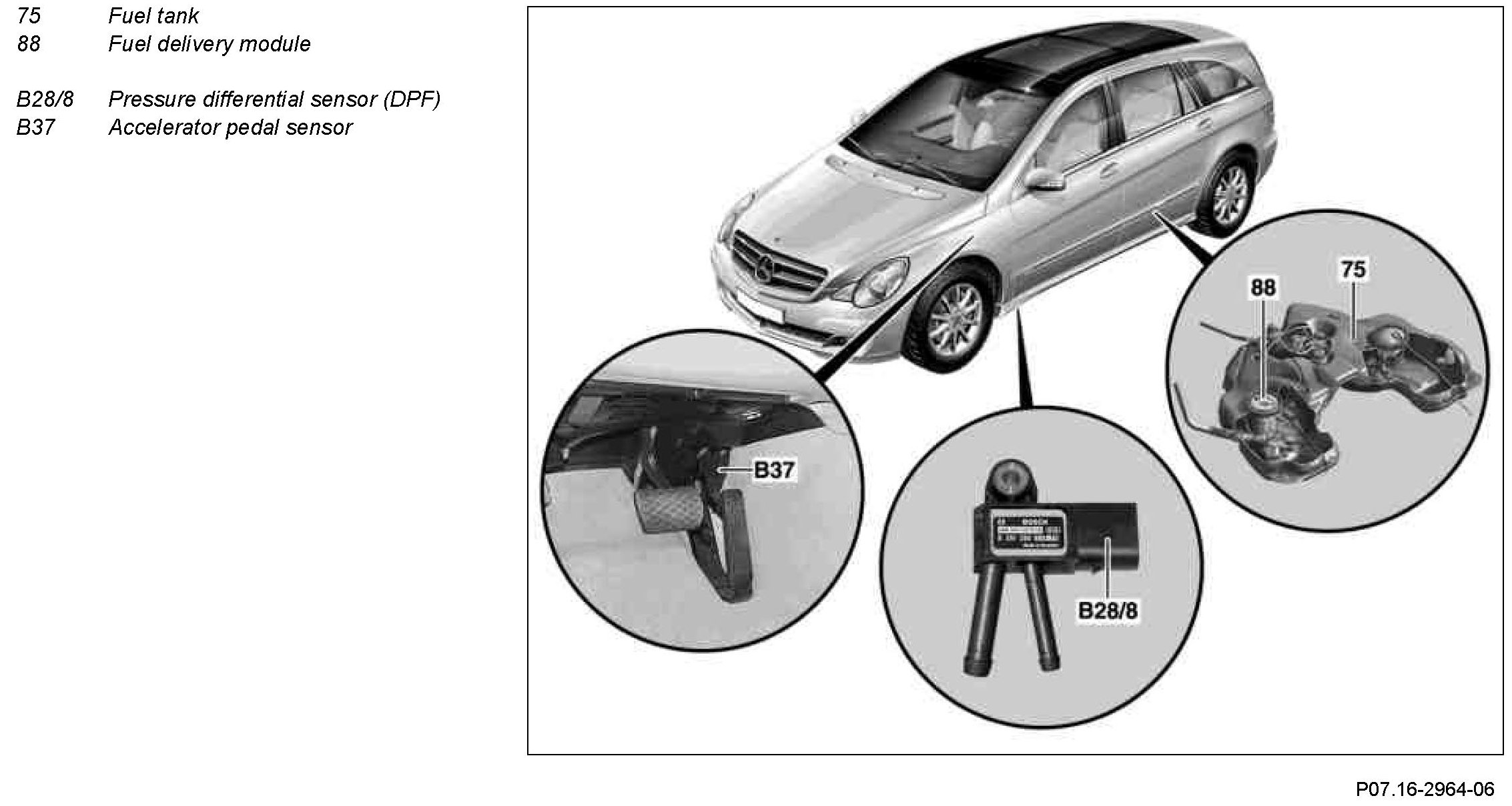

GF07.16-P-0001-01RTF Common Rail Diesel Injection (CDI), Location Of Components
- up to model year 08

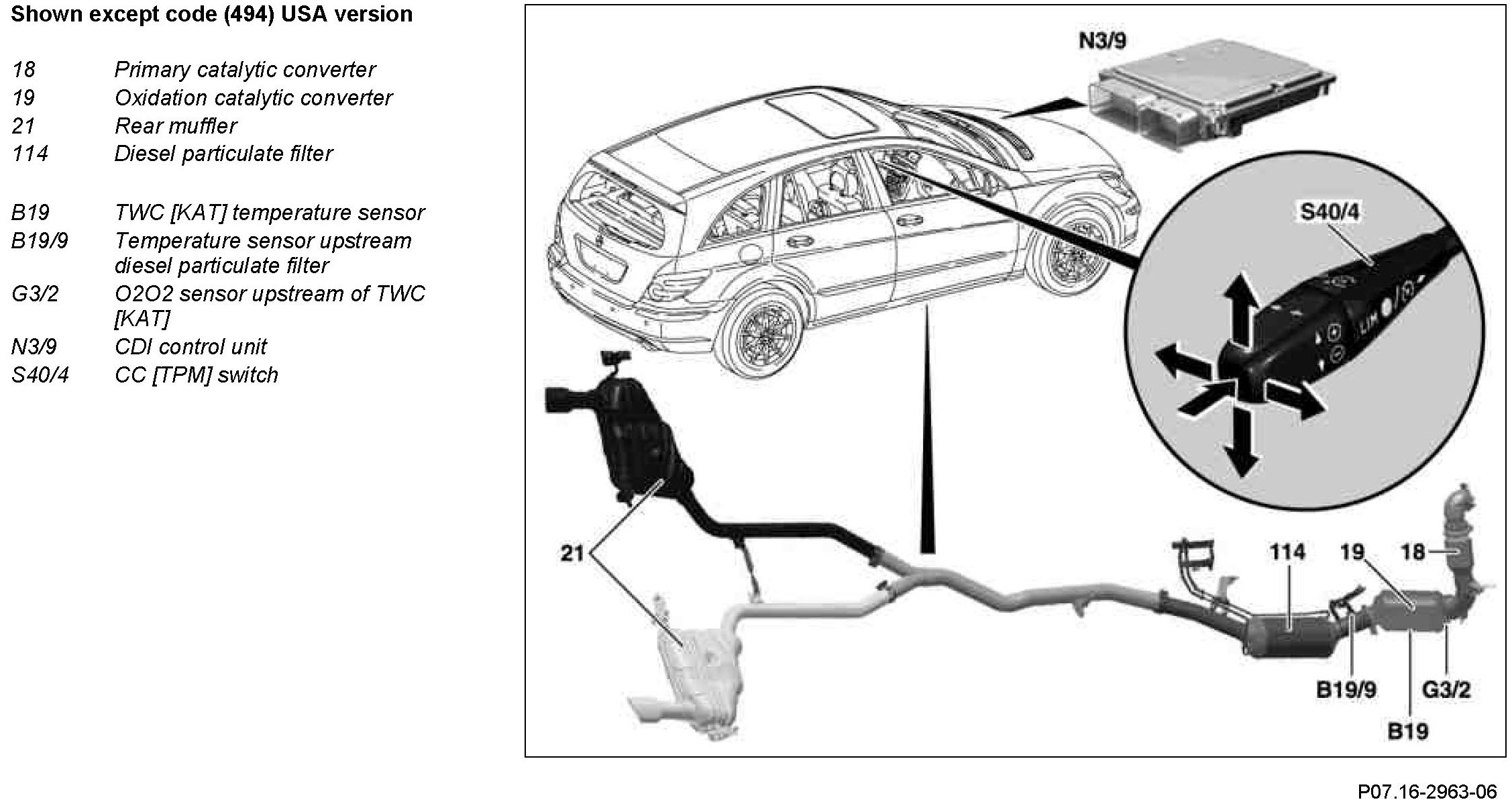

On vehicles with Code (494) USA version, the primary catalytic converter is omitted.
