Body - Exterior Mirror Cannot Be Adjusted

Date: November 29, 2006
Order No.: T-B-88.79/57
Supersedes:
Group: 88

SUBJECT:
Model 164.122/175/177/186/871

Model 251.122/165/175/177

Equipped with Left Front Seat Electric Adjustable with Memory (SA code 241), Right

Front Seat Electric Adjustable with Memory (SA code 242) or Memory
Package (Driver Seat, Steering Column, Mirror) (SA code 275)

Exterior Mirror Cannot Be Adjusted

If you receive customer reports in the above model vehicles that the exterior mirror glass cannot be adjusted electrically, this may be caused by too much tension on the harness causing the electrical connector to loosen. To resolve, perform the following.

1. Remove exterior mirror housing. Refer to WIS document AR88.70-P-9040GZ (Model 164) or AR88.70-P-9040RT (Model 251).
2. Refasten the connector for the exterior mirror glass adjustment to the mirror adjustment motor.

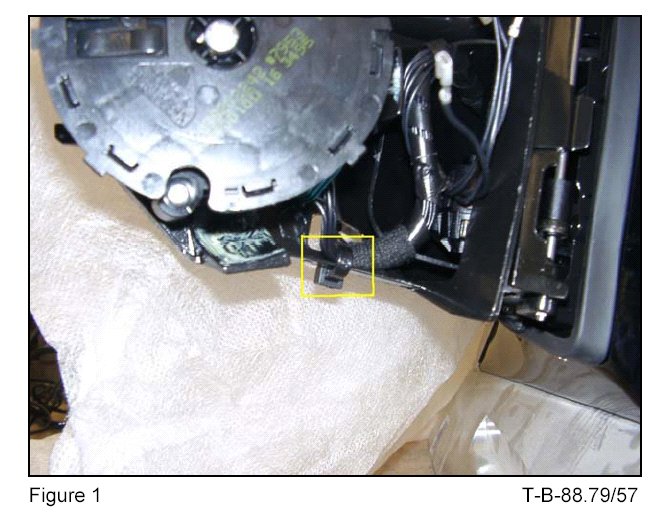

3. Secure the harness to mirror housing using cable tie (Figure 1).

NOTE:
Steps 2 and 3 of this repair are non-time claimable under Group 88.

Warning: Only secure harness for mirror glass adjustment. Do not secure the harnesses for the mirror heater or mirror turn signal.

4. Reinstall exterior mirror housing. Refer to WIS document AR88.70-P-9040GZ (Model 164) or AR88.70-P-9040RT (Model 251).





Parts Information
