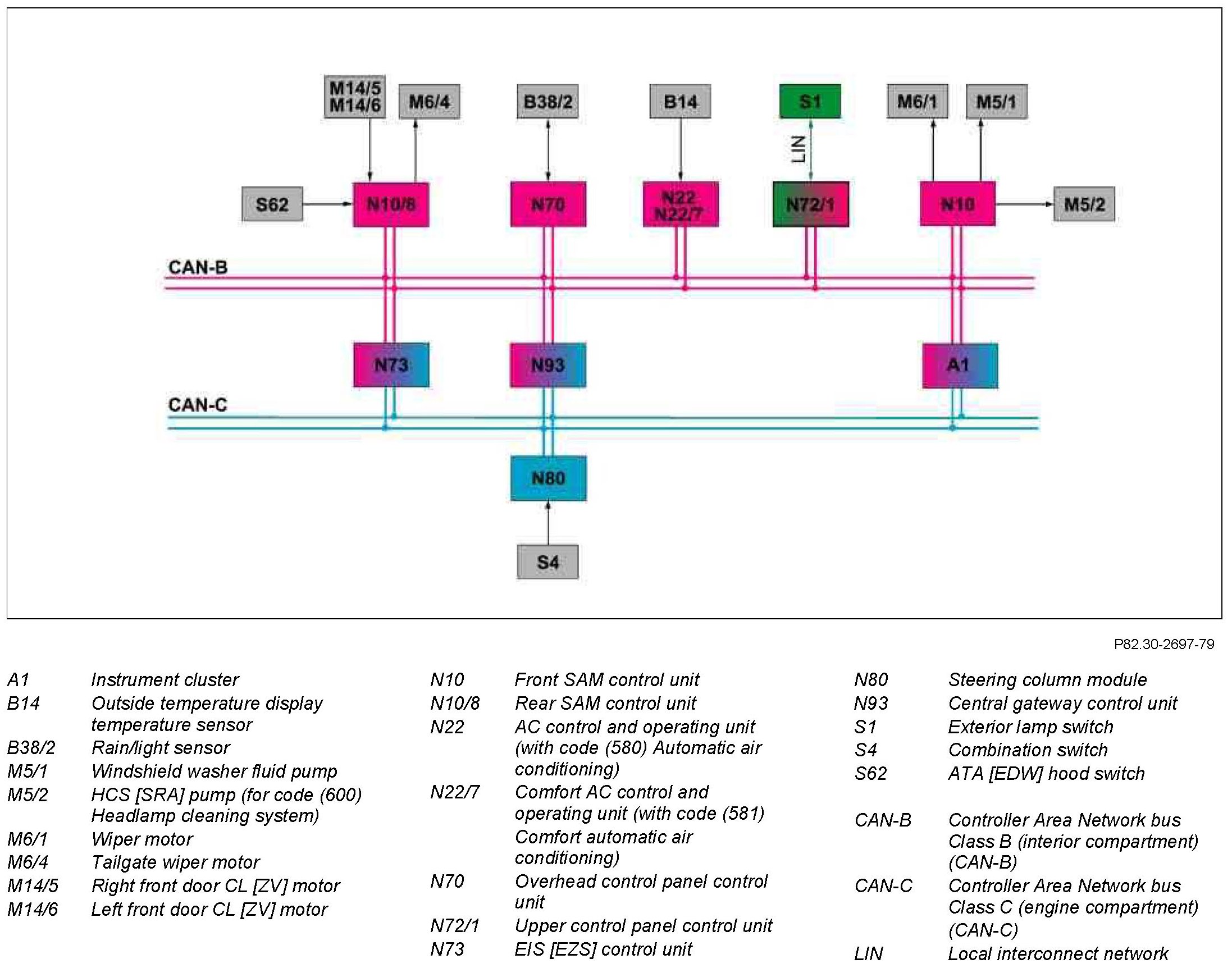

GF82.30-P-0003-04RT Wiper System (WSA) Block Diagram
GF82.30-P-0003-04RT Wiper System (WSA) Block Diagram
GF82.30-P-0003-04RT Wiper System (WSA) Block Diagram
Component Identification:
