Wiper and Washer Systems: Service and Repair
AR82.30-P-6400RT Remove/Install Wiper System

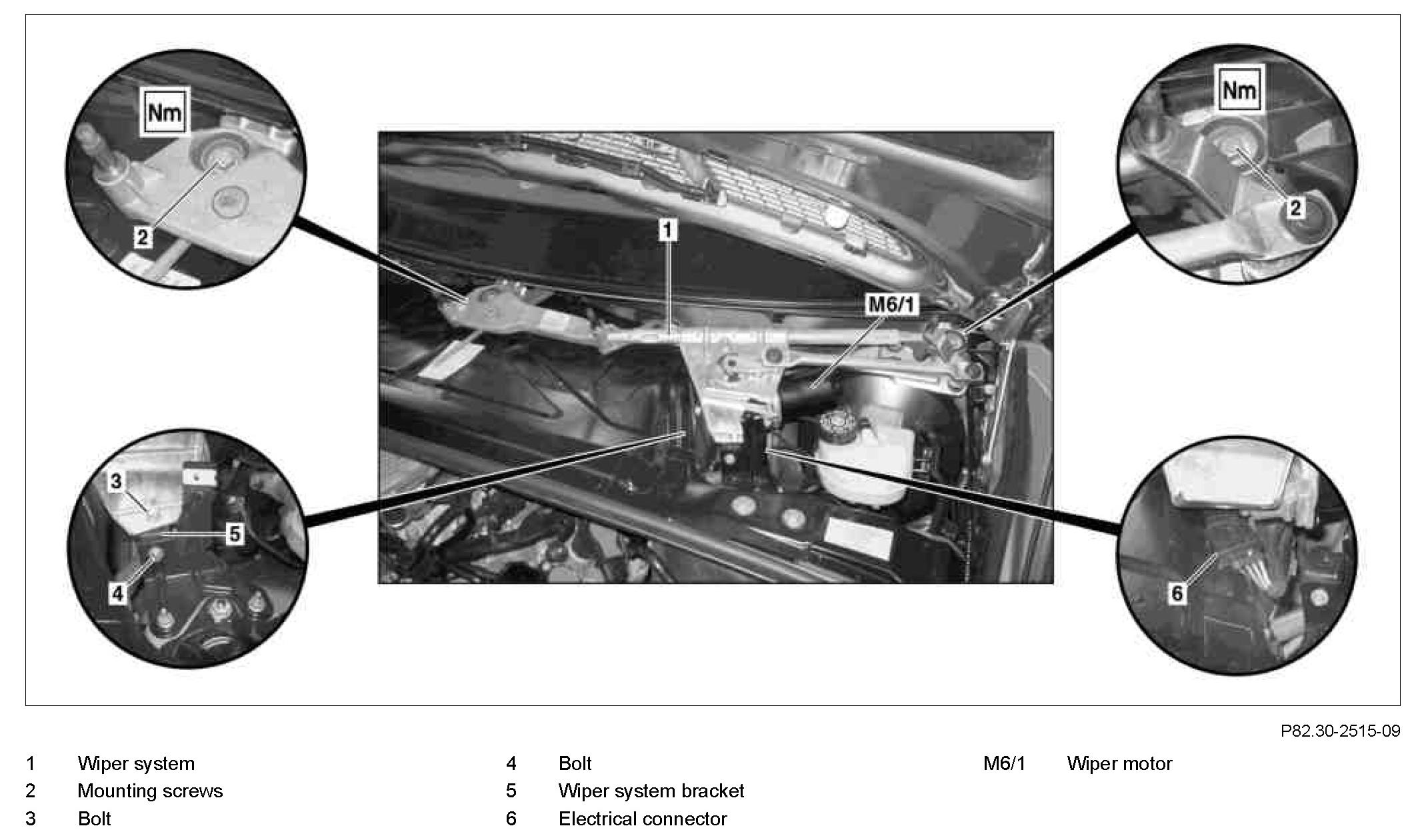

Component Identification:
Component Identification:

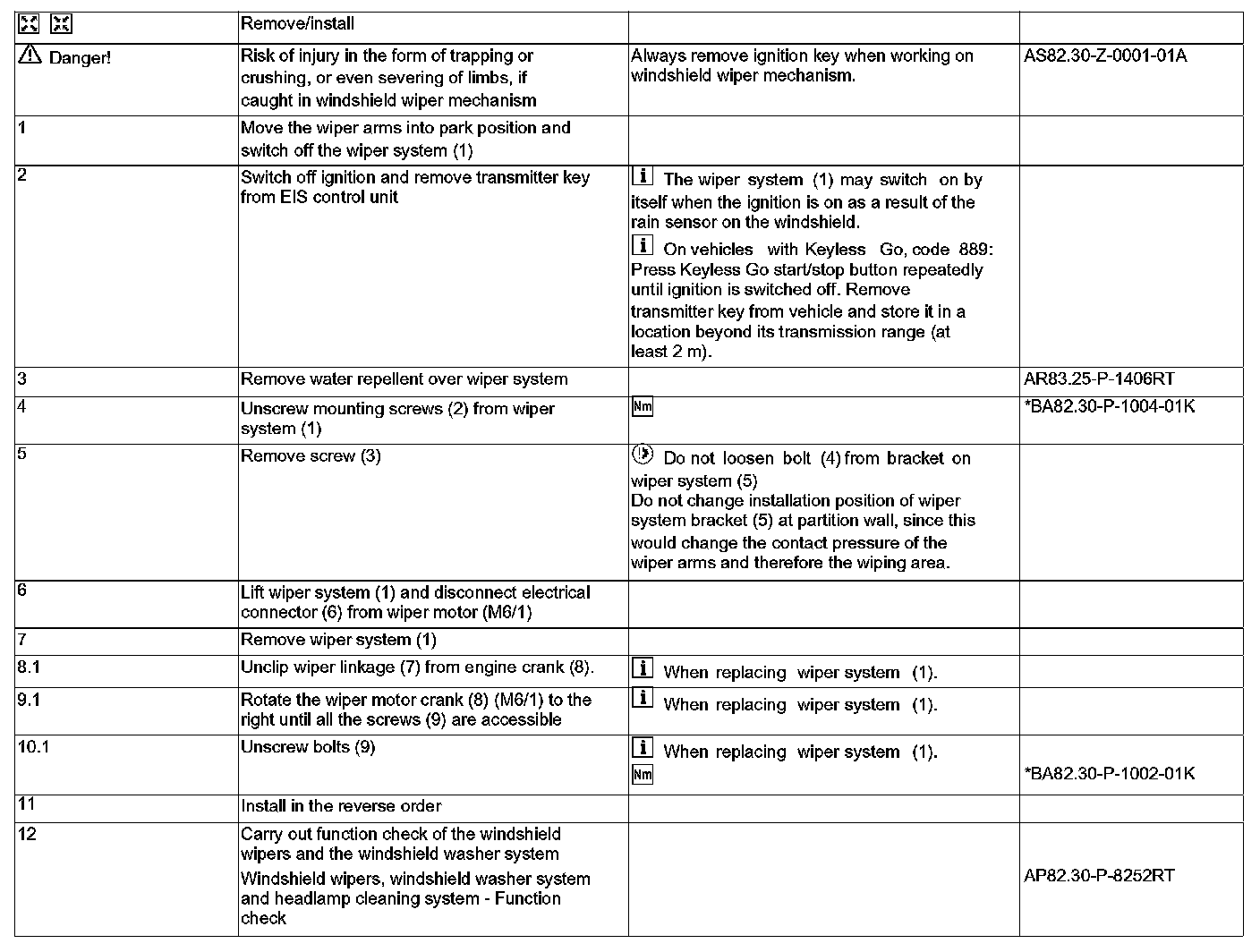

Steps 1 - 12:

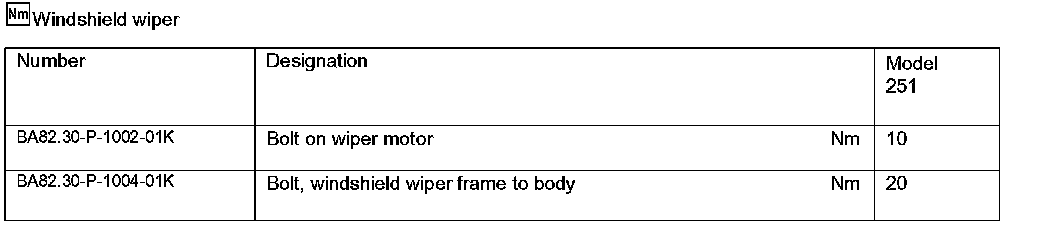

Windshield Wiper:
