GF82.62-P-3130RTJ Side Window Antenna, Component Description

GF82.62-P-3130RTJ Side Window Antenna, Component Description
- with CODE (498) Japan version

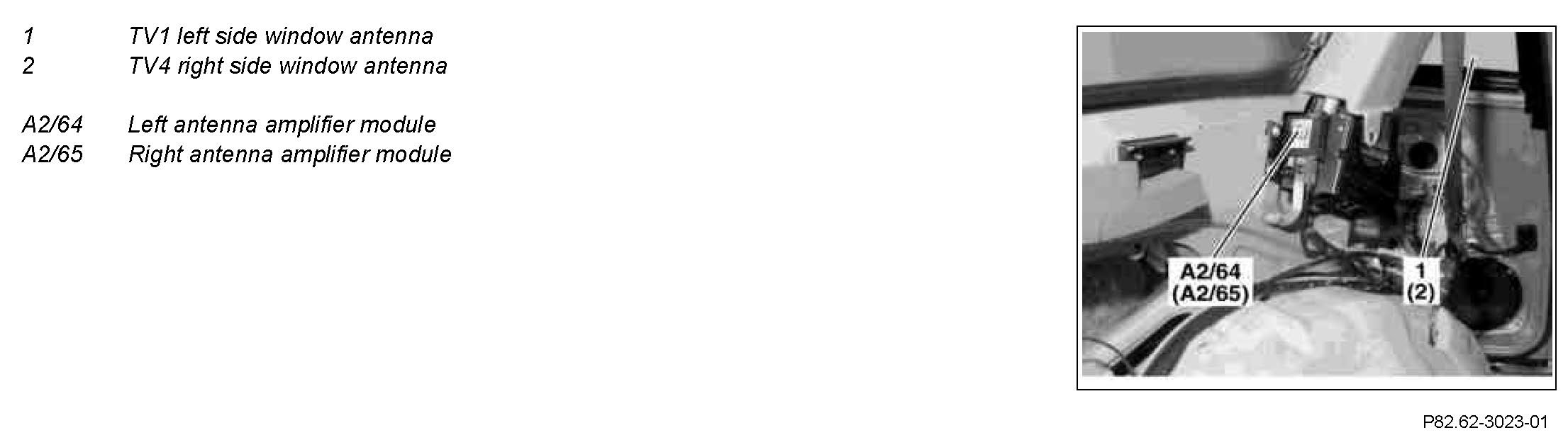

Component Identification:

Data and voice information is received by converting electromagnetic radio waves into electrical voltage.

The TV1 side window antenna is connected to the left antenna amplifier module, the TV4 right side window antenna is connected to the right antenna amplifier module.
