GF54.65-P-5020RT Warning Indicator, Component Description

GF54.65-P-5020RT Warning Indicator, Component Description
- with CODE (230) Advanced Parking Guidance
- with CODE (220) Parktronic system (PTS)

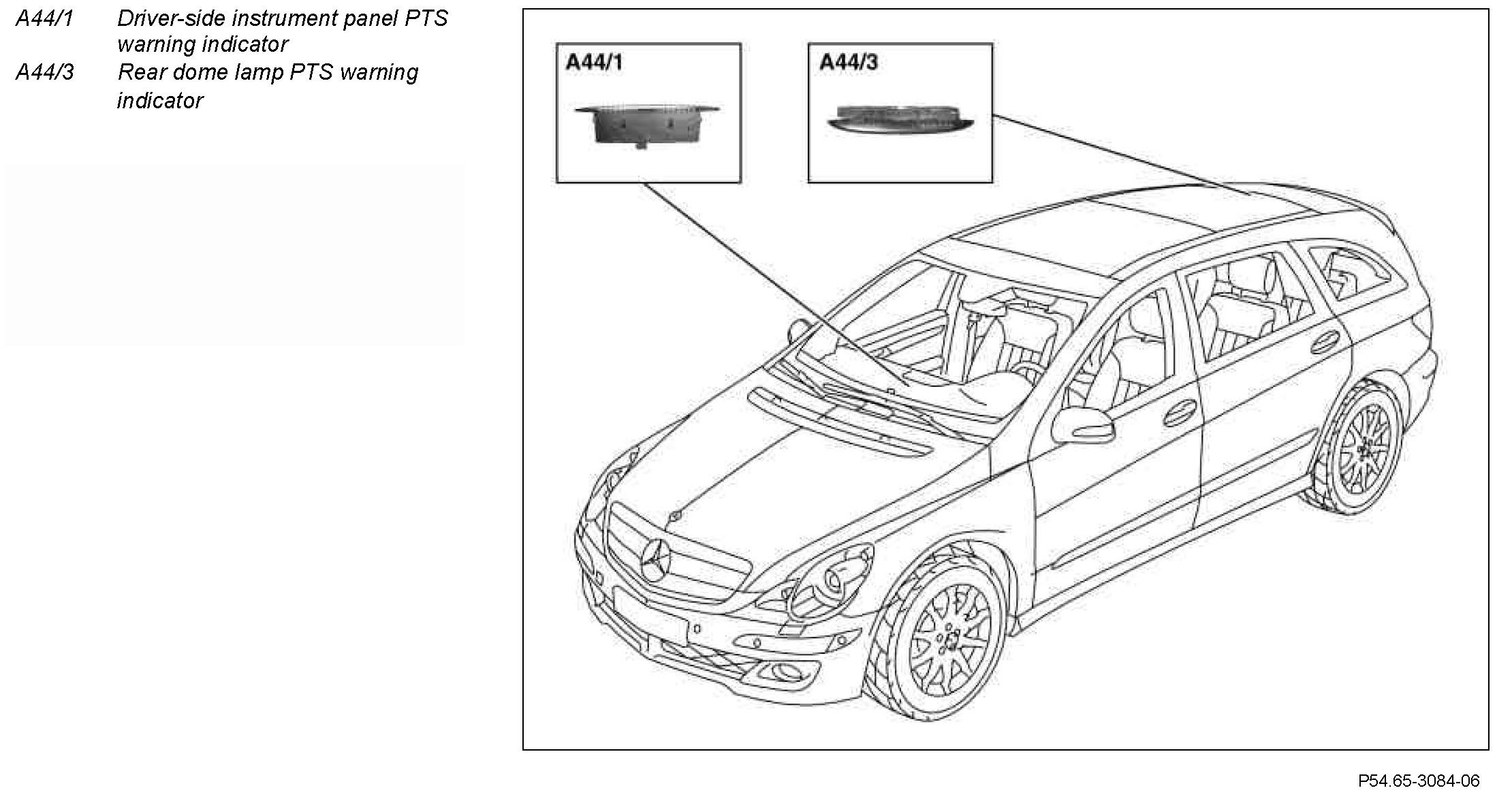

Component Identification:

Location
The driver-side instrument panel PTS warning indicator is located in the center console at the top.
The rear dome lamp PTS warning indicator is located in the headliner in the dome lamp.

Design
Each warning indicator contains 10 yellow and 4 red LED's, a standby bar, an acoustic signal and a microprocessor.The microprocessor is responsible for bi-directional data exchange with the PTS control unit (N62)

Task
Upon recognizing an obstacle in front or behind the vehicle, the intervals are first indicated visually by illumination of the yellow LED's, then by illumination of the red LED's and, in addition, by output of an acoustic warning to the driver.

After a successful self-test and up to a speed of 18 km/h or 11 mph, the ready state of the Parktronic system (PTS) is indicated to the driver by illumination of the standby bar. If the Parktronic system (PTS) recognizes a fault during the selftest or while driving, this is indicated to the driver by illumination of both LED's.
