GF82.62-P-3008RT Rear Audio Control Unit, Component Description



GF82.62-P-3008RT Rear Audio Control Unit, Component Description
- with CODE (494) USA version
- with CODE (528) HIGH Class USA
- with CODE (530) COMAND APS USA (with navigation system)


Component Identification:

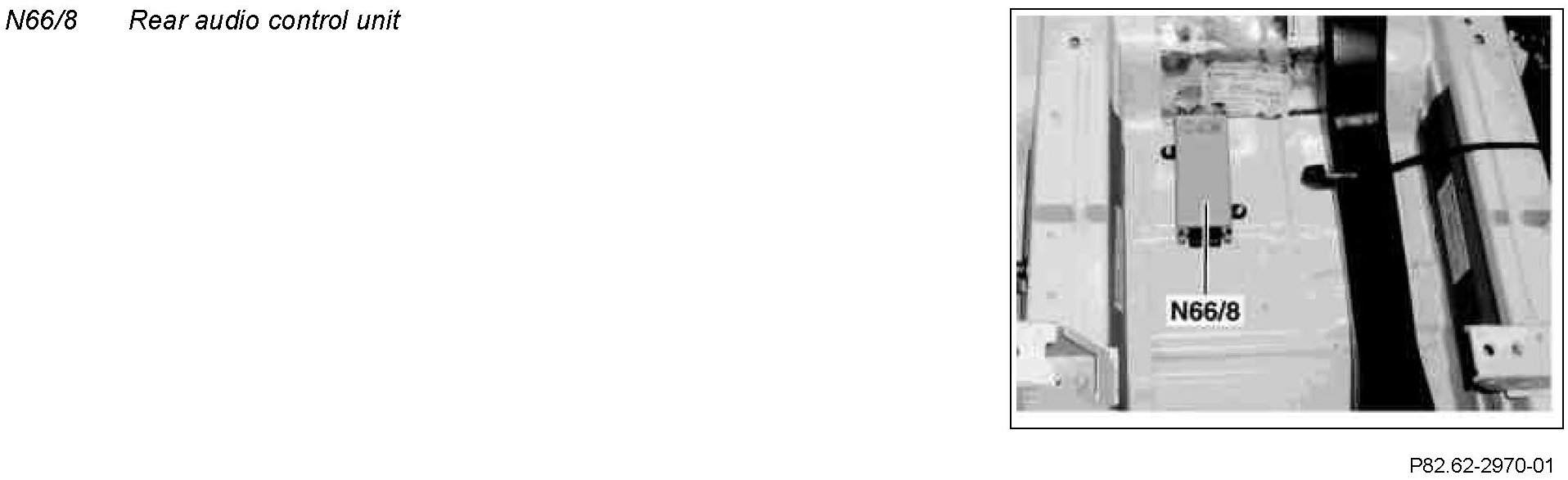

The rear audio control unit is located in the footwell, below the driver seat under the amplifier for sound system (N40/3). It receives the audio signals from the COMAND operating, display and control unit (A40/3).

The audio signals are amplified and sent to the HBF control unit (N72/2) for output to the headphones.
