GF82.62-P-3119GZJ Audio Gateway Control Unit, Component Description

GF82.62-P-3119GZJ Audio Gateway Control Unit, Component Description

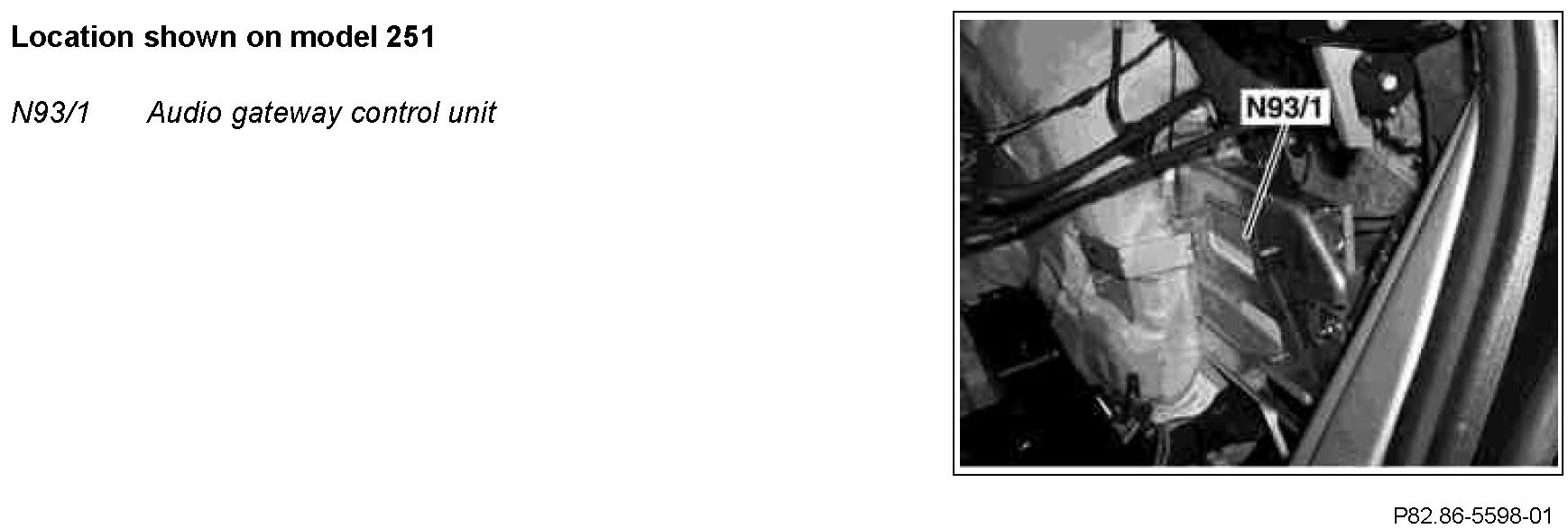

Component Identification:

The audio gateway control unit is located in the left rear trunk.

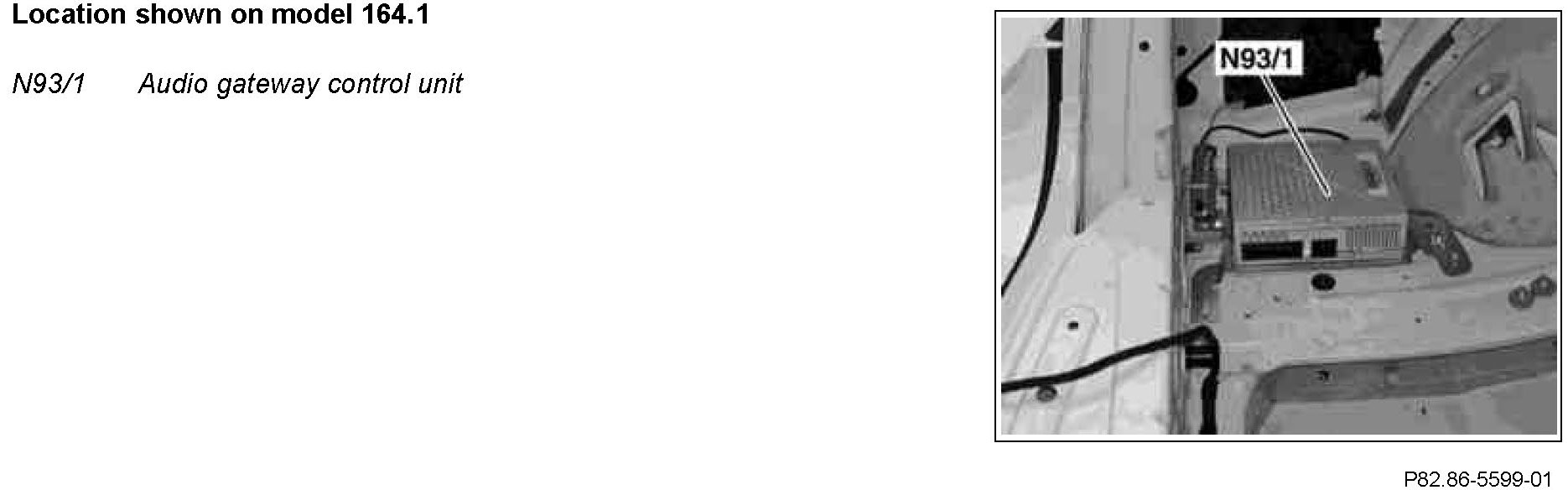

Component Identification:

The audio gateway control unit is located in the right rear trunk.

Task and function
The audio gateway control unit is the radio component in the audio and video equipment for Japanese vehicles. At the same time it is also the interface between the Media Oriented System Transport (MOST) and the Controller Area Network bus Class B (interior) (CAN-B). It contains the functions:

^ AM/FM receiver
^ CAN-B interface (gateway between MOST and CAN-B)
^ MOST ring master
^ Central diagnostic interface for the MOST components
^ Basic amplifier function
^ The audio gateway control unit can be activated over CAN-B and a separate wake-up line

The audio gateway control unit can be configured through diagnosis.
The following can be selected:
^ Frequency bands
^ Speed-dependent volume control

Diagnosis
The audio gateway control unit is connected over CAN-B with the central gateway control unit (N93) and can be diagnosed using the Keyword 2000 log.

The audio gateway control unit is the diagnosis gateway for all other MOST ring users.

Equipment
^ Receiver for Japanese FM or AM frequency band (FM range enables FM diversity)
^ Six preset stations per band range
^ Automatic station search and station storage
^ SCAN function
^ Manual frequency setting
^ Selection of strong reception radio stations (display on COMAND operating, display and control unit (A40/3))

Direct entries
^ Terminal 30
^ Terminal 31
^ MUTE
^ Wake-up

Direct outputs
^ All speakers (four speaker pairs), if the sound system (Code 810) is not available

High frequency antenna input
^ Input for antenna signals (high frequency)

Antenna control output
^ Voltage supply for antenna amplifier
- The output is activated as soon as the audio gateway control unit is switched on

MOST signals
^ COMAND operating, display and control unit
^ Amplifier for sound system (N40/3) (with sound system only)
^ CD changer (A2/6)
^ Microphone array control unit (N41/5)

On vehicles that are designated for the Japanese market, the voice control is integrated into the COMAND operating, display and control unit.
