Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2007
>>
R 350 4MATIC (251.165) V6-3.5L (272.967)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Testing and Inspection
>>
AR01.00-P-1300GZB Check Cylinders For Leaks
AR01.00-P-1300GZB Check Cylinders For Leaks
AR01.00-P-1300GZB Check cylinders for leaks

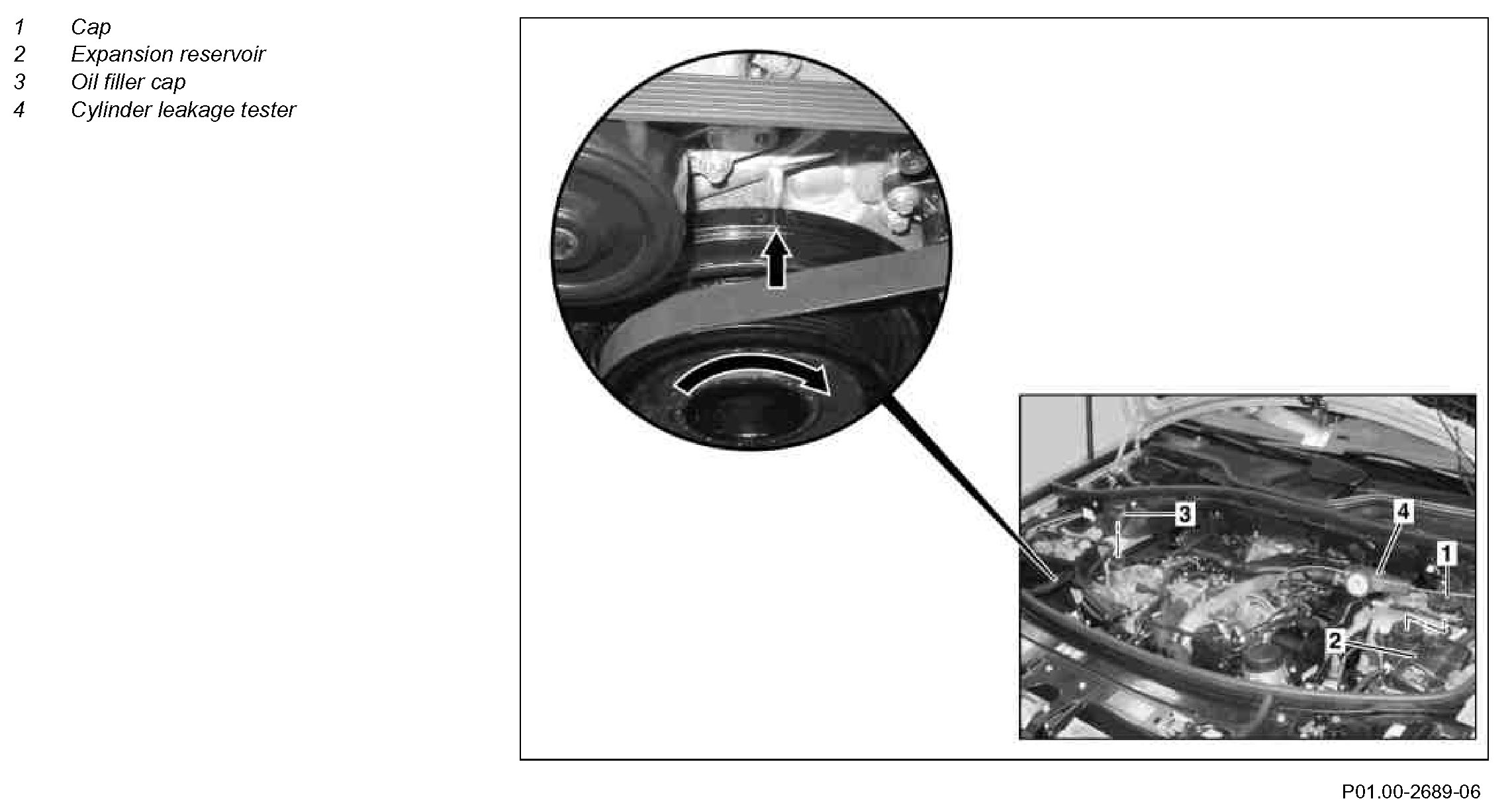

Component Identification:
Modification notes:

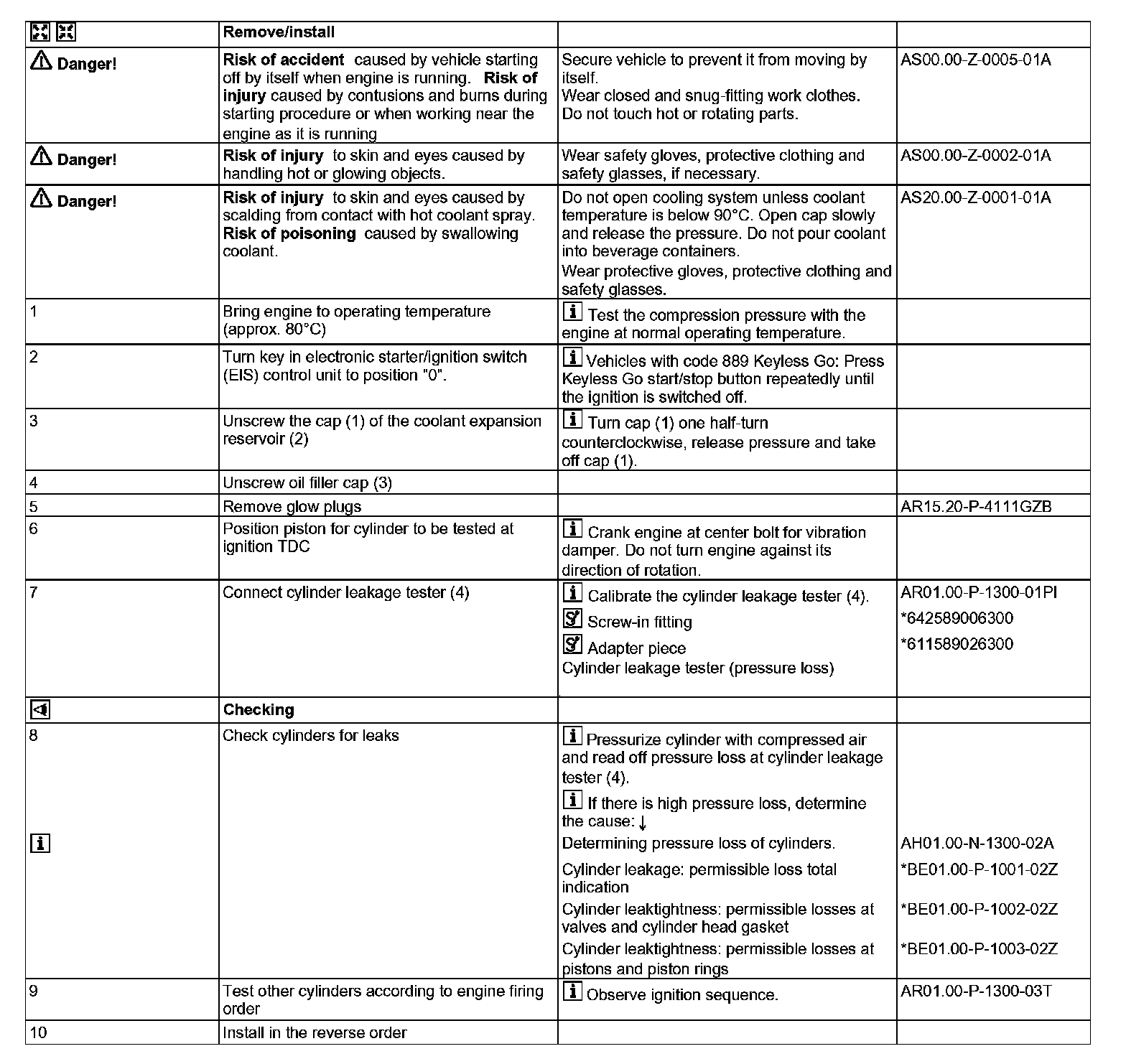

Steps 1-10:

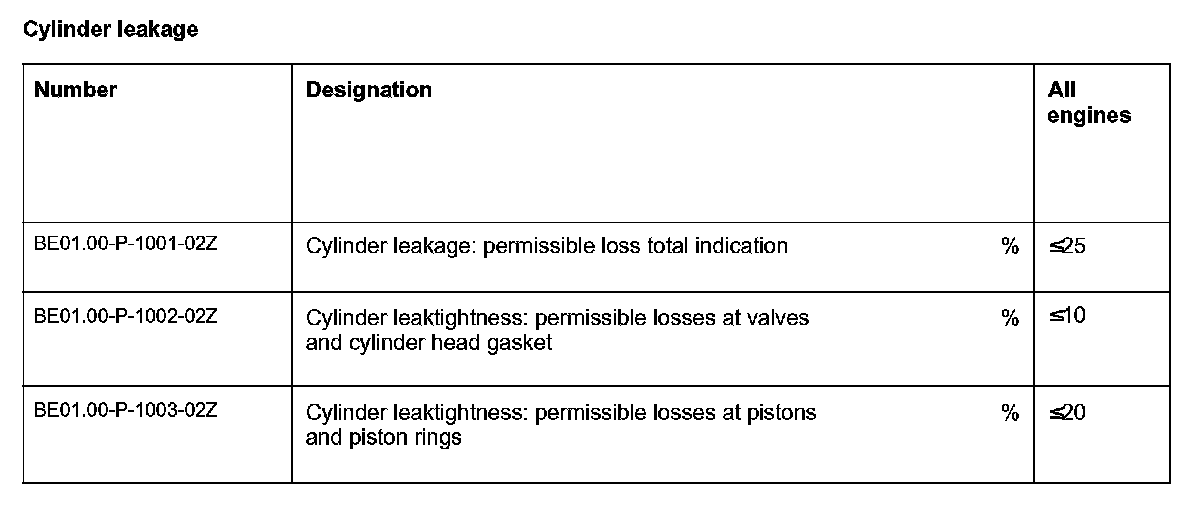

Cylinder leakage:

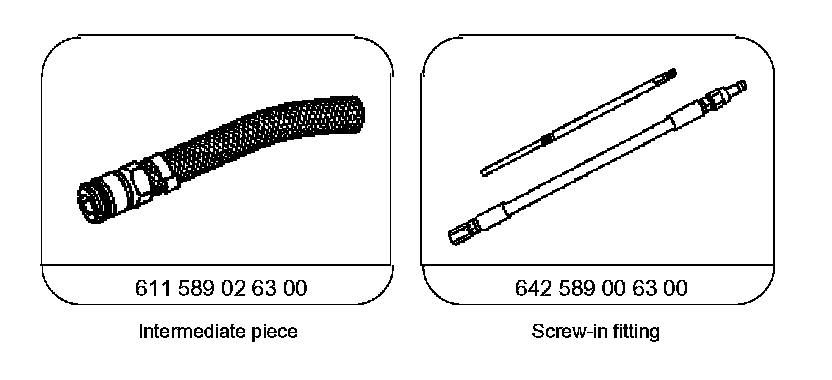

Special Tools:
