GF83.70-P-4201RT STH Radio Remote Control Receiver Component Description

GF83.70-P-4201RT STH Radio Remote Control Receiver Component Description
- Only ECE-cars

Component Identification:

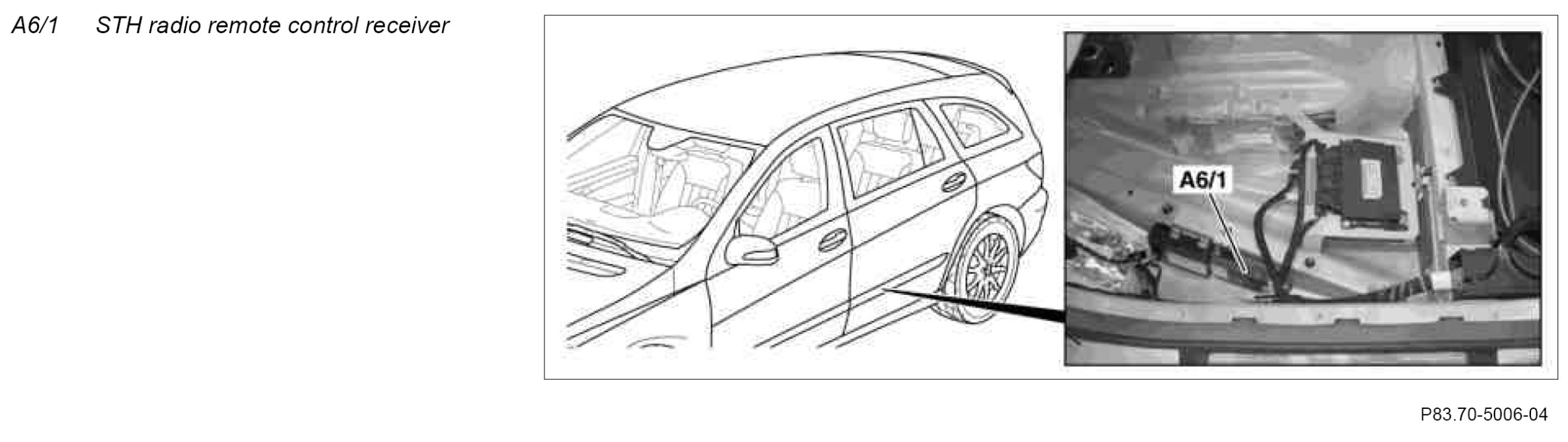

Location
The STH radio remote control receiver is installed in the left footwell in front of the 2nd seat row.

Task
The STH radio remote control receiver evaluates the signals of the transmitter key (A8/1) and forwards them to the STH control unit (A6n1).

When a valid signal is received, a return signal is sent to the transmitter key.

Before initial startup, the STH radio remote control receiver must teach in the transmitter keys (a maximum of 3 each) allocated to it.
